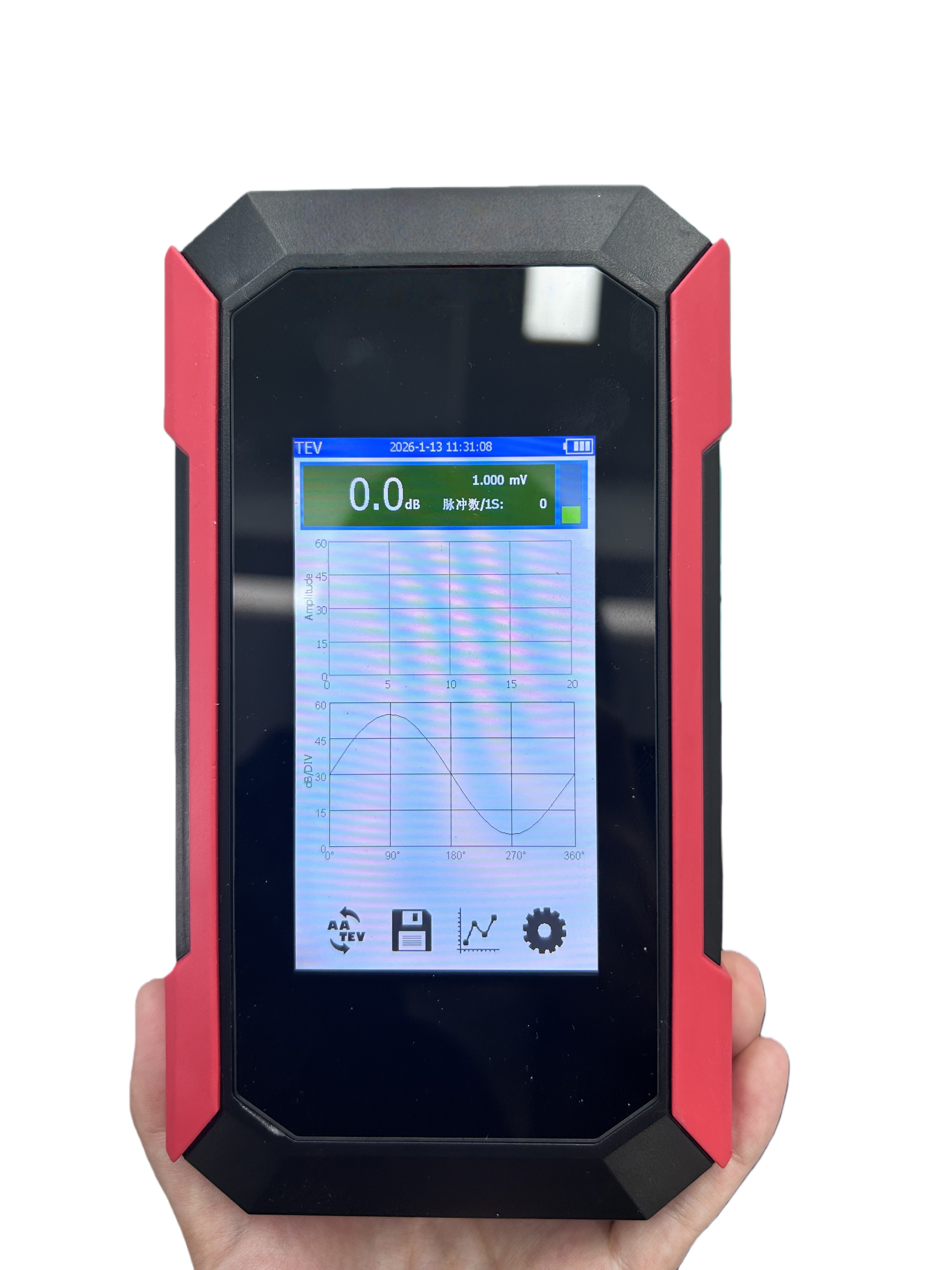

Comprehensive Partial Discharge Detection Equipment
- Wrindu
- Shanghai, China
- about 10 working days
- 1000 set/month
- RDPDZ-104T
Partial discharge (PD) occurs due to insulation defects in high-voltage equipment, generating detectable signals like light, sound, and vibrations. Monitoring these signals helps identify potential hazards and prevent further damage.

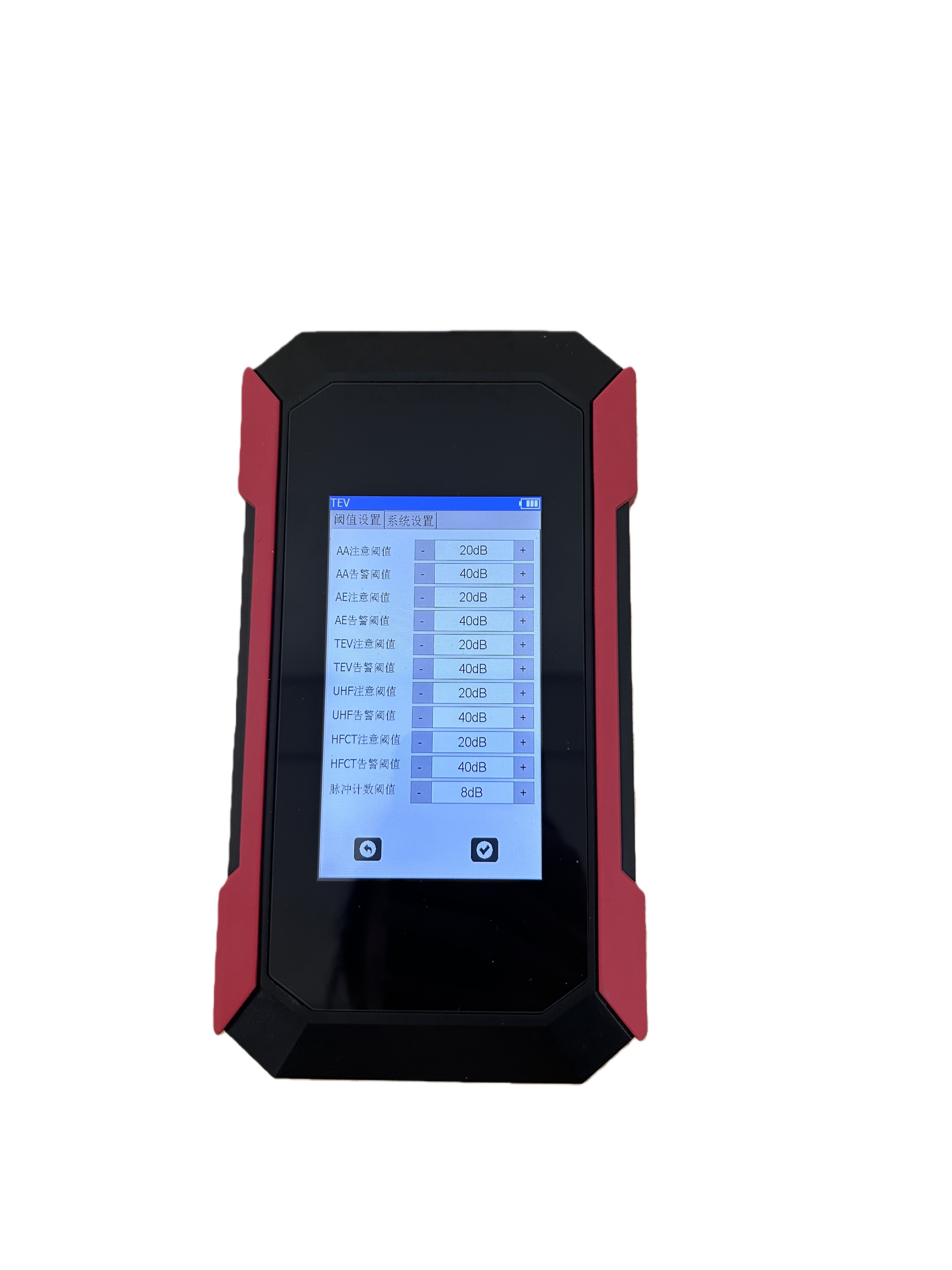

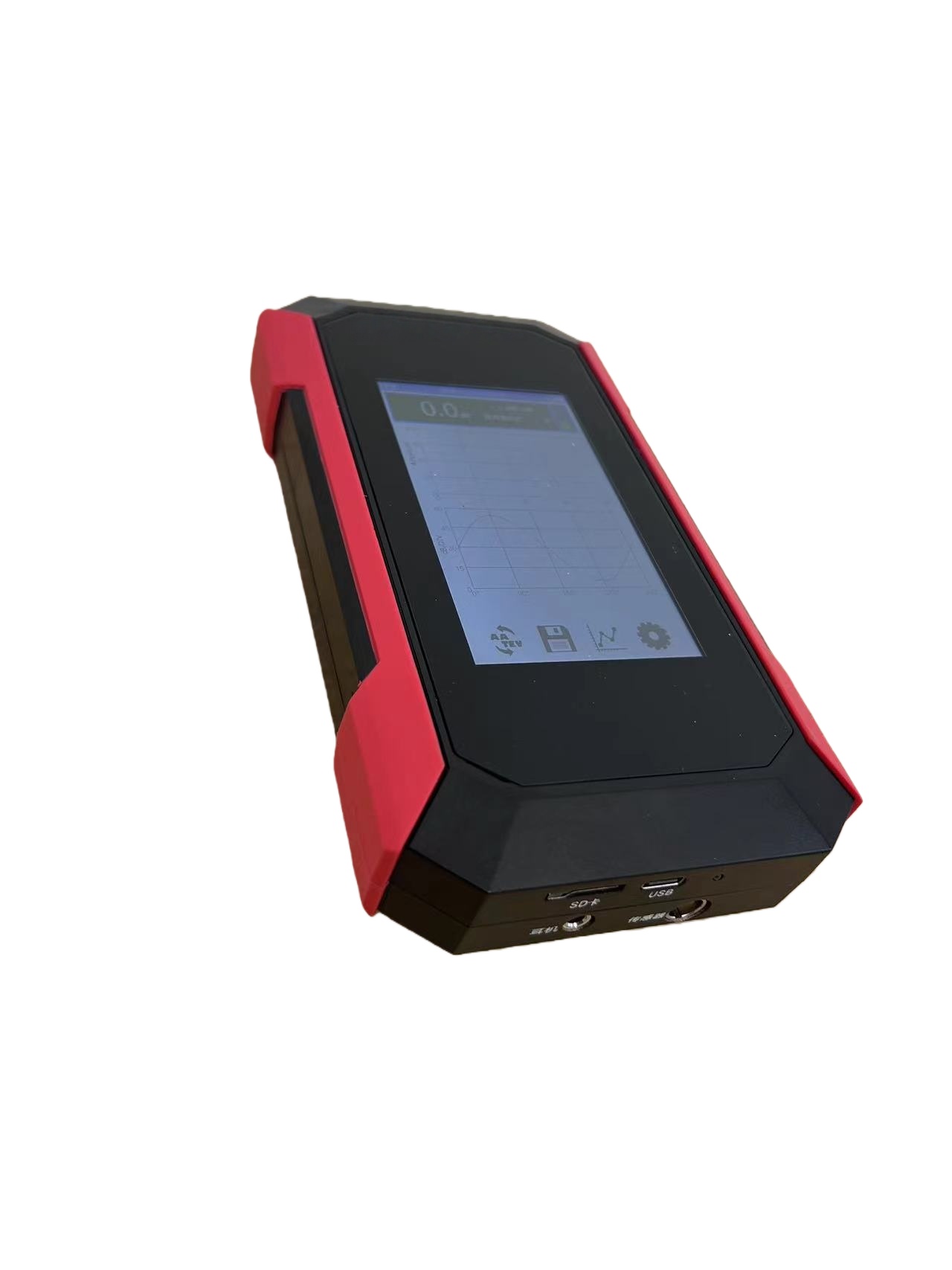

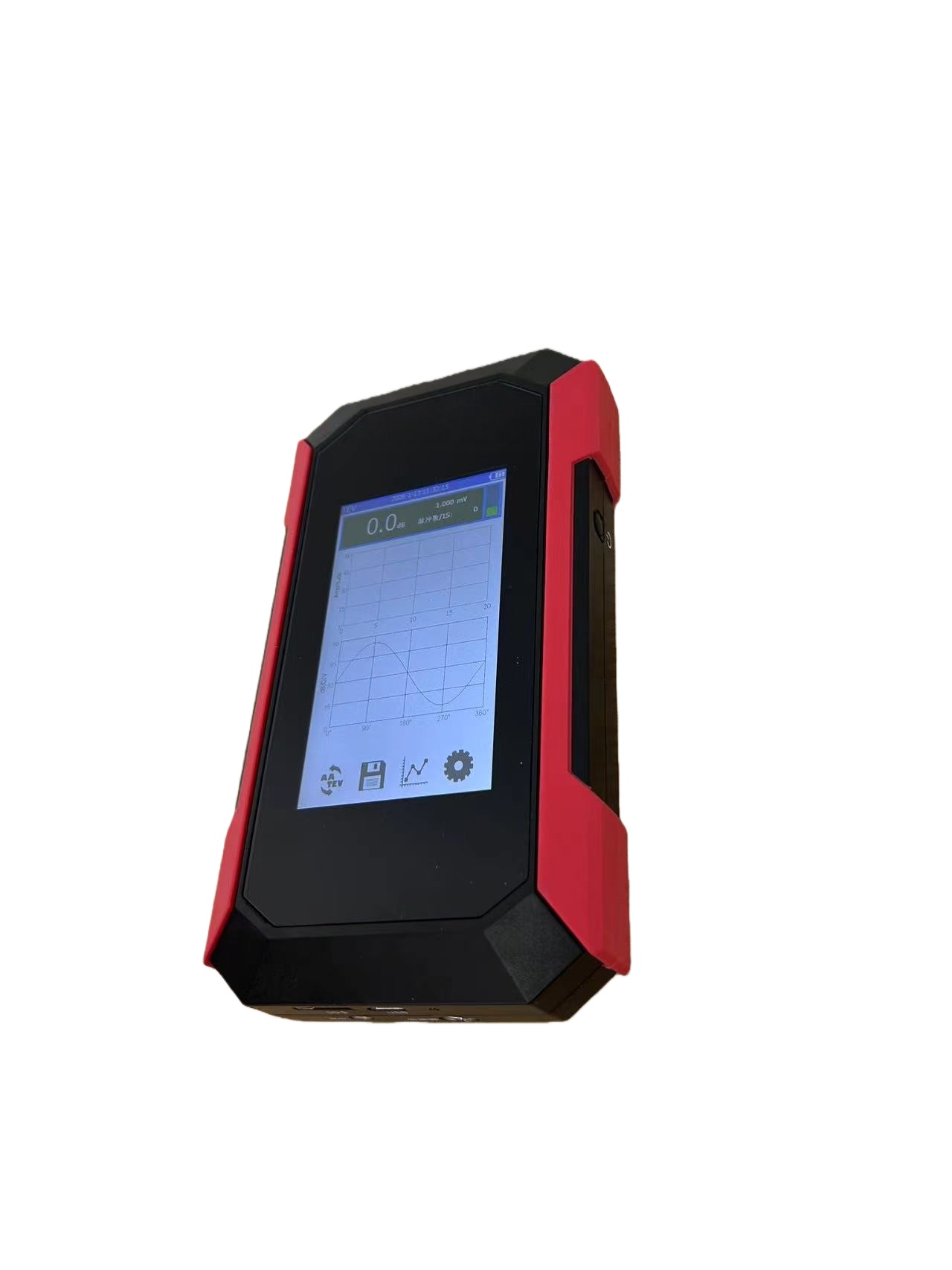

Wrindu's handheld PD detector uses TEV, AE, UHF, and HFCT methods to measure PD magnitude and display waveforms. It’s designed for testing various electrical equipment like GIS, switchgears, and transformers, and allows for storing and retrieving 2D/3D PD data.
The device assesses PD severity by measuring intensity (maximum value of discharge pulses) and frequency (number of pulses). It's portable, easy to use, and doesn't interfere with high-voltage equipment operation, enabling accurate fault diagnosis.
Product Features
1. Configurable with different sensors to realize PD detection for almost all types of high-voltage electrical equipment.
2. Provides multiple discharge patterns including time-domain wave forms, PRPD (Phase Resolved Partial Discharge), and PRPS (Phase Resolved Pulse Sequence) for analyzing different discharge types.
3. User-friendly human-machine interface (HMI) facilitates data management for different equipment.
4. Built-in AE sensor and TEV sensor, with external interfaces for dedicated sensors of transformers, GIS, overhead lines, cables, etc.
5. Adopts non-intrusive detection method, no power outage required during testing, no additional high-voltage source needed, more convenient to use than traditional pulsed PD detectors.
6. Test bandwidth range: 30kHz ~ 2.0GHz, suitable for various detection principles in different frequency bands.
Product Parameters
Measurement Category | Parameter | Specifications |
TEV Measurement | Measurement Range | 0dB ~ 60dB |
Resolution | 0.1dB | |
Accuracy | ±1dB | |
Maximum Pulses per Cycle | 1400 | |
Measurement Bandwidth | 3 ~ 100MHz | |
AE Measurement | Measurement Range | 0dB ~ 60dB |
Resolution | 0.1dB | |
Accuracy | ±1dB | |
Frequency Range | 20 ~ 200 kHz | |
AA, AA1, AA2 Measurement | Measurement Range | 0dB ~ 60dB |
Resolution | 0.1dB | |
Accuracy | ±1dB | |
Sensor Center Frequency | 40 kHz | |
UHF Measurement | Detection Bandwidth | 300 ~ 2000MHz |
Measurement Range | 0dB ~ 60dB | |
Sensitivity | ＜1dB | |
Sensor Bandwidth | 300 ~ 2000MHz | |
HFCT Measurement | Sensor Transfer Impedance | 5mV/mA |
Detection Frequency | 1 ~ 30MHz | |
Resolution | 0.1dB | |
Sensitivity | ≤50pC | |
Hardware | Housing Material | ABS |
Display | 4.3-inch RGB LCD, Resolution 800*480 | |
Sampling Accuracy | 12-bit | |
Synchronization Mode | Internal Synchronization | |

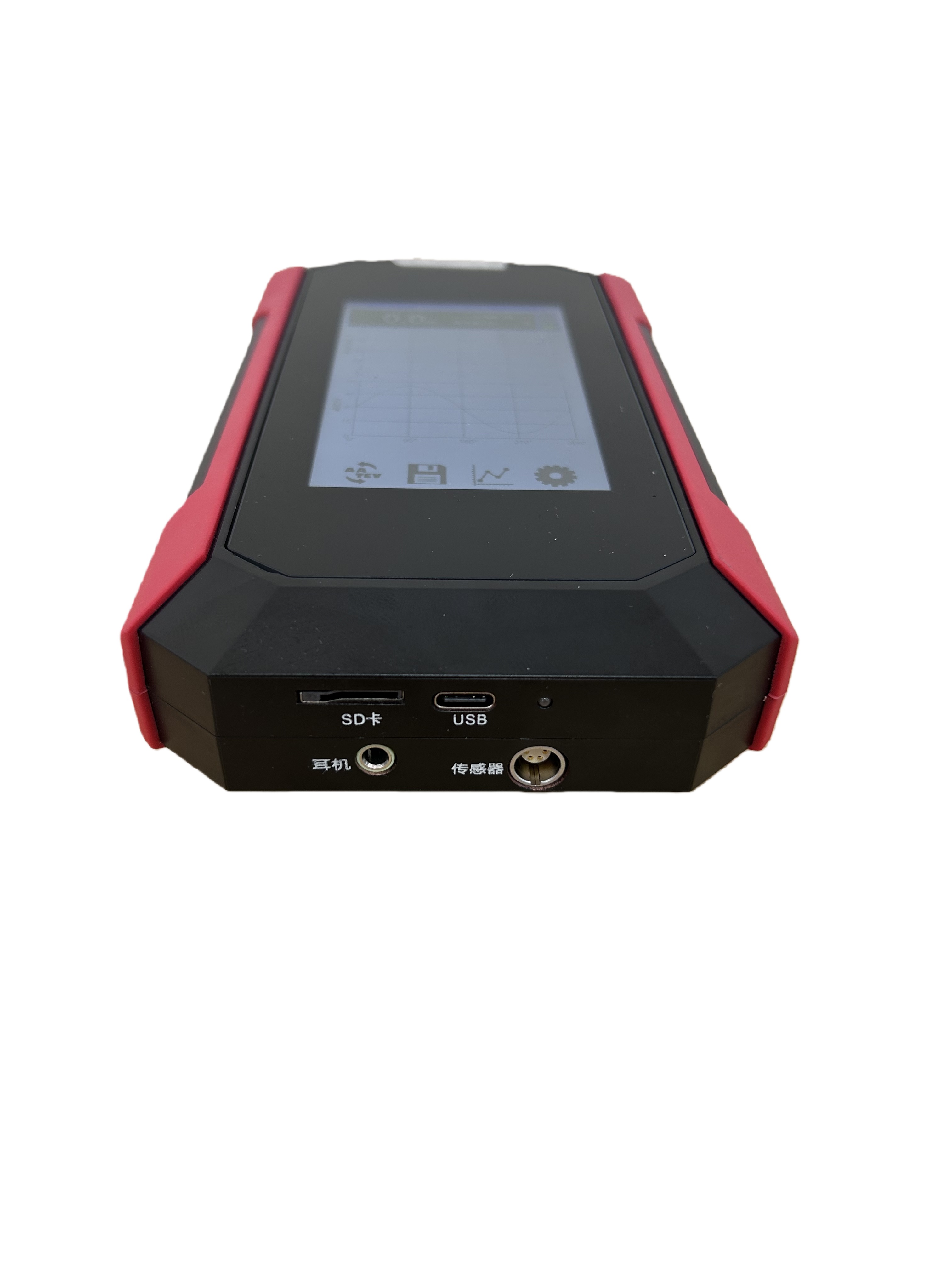

Connectors | USB Interface (dual-purpose for charger input)3.5mm Stereo Headphone JackExternal Sensor Input Interface | |
Headphone Requirement | Minimum 8 Ohms | |
SD Card | Standard Configuration: 16G ~ 64G | |
Built-in Battery | 3.7V/10000mAh Lithium Battery | |
Operating Time | Approximately 12 hours | |
Charger | DC 5V/3A | |
Operating Temperature | -20 ~ 50℃ | |
Humidity | 20% ~ 85% Relative Humidity | |
Dimensions & Weight | 21010035(mm), 0.4KG (Host Unit) |

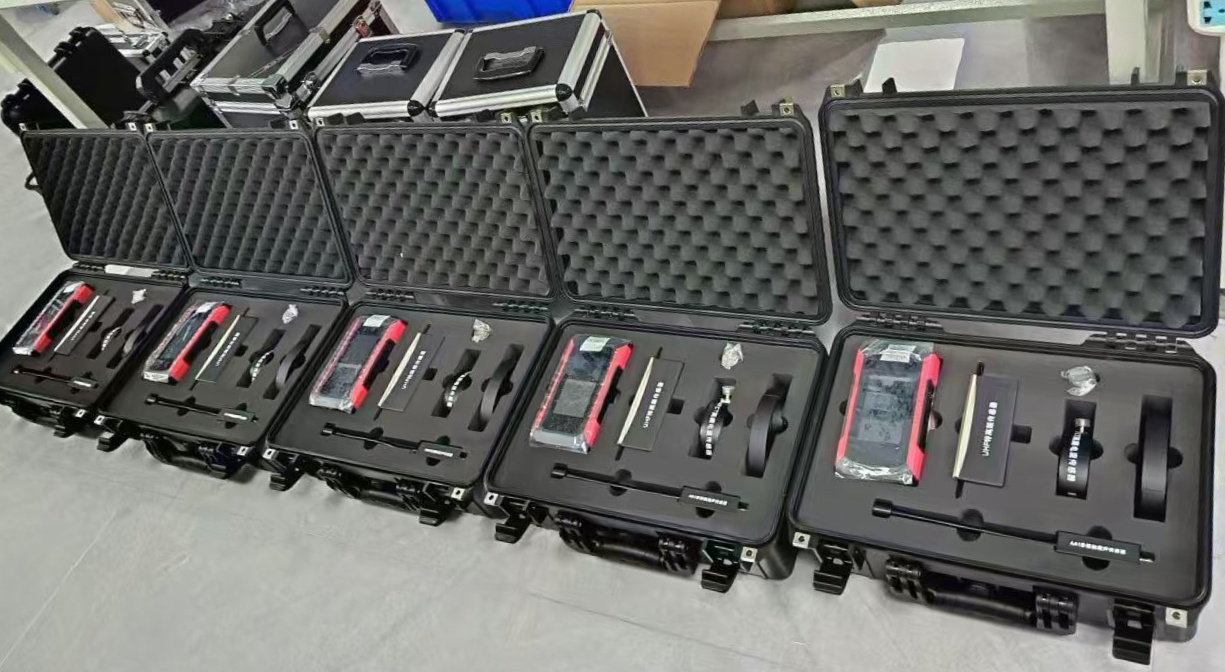

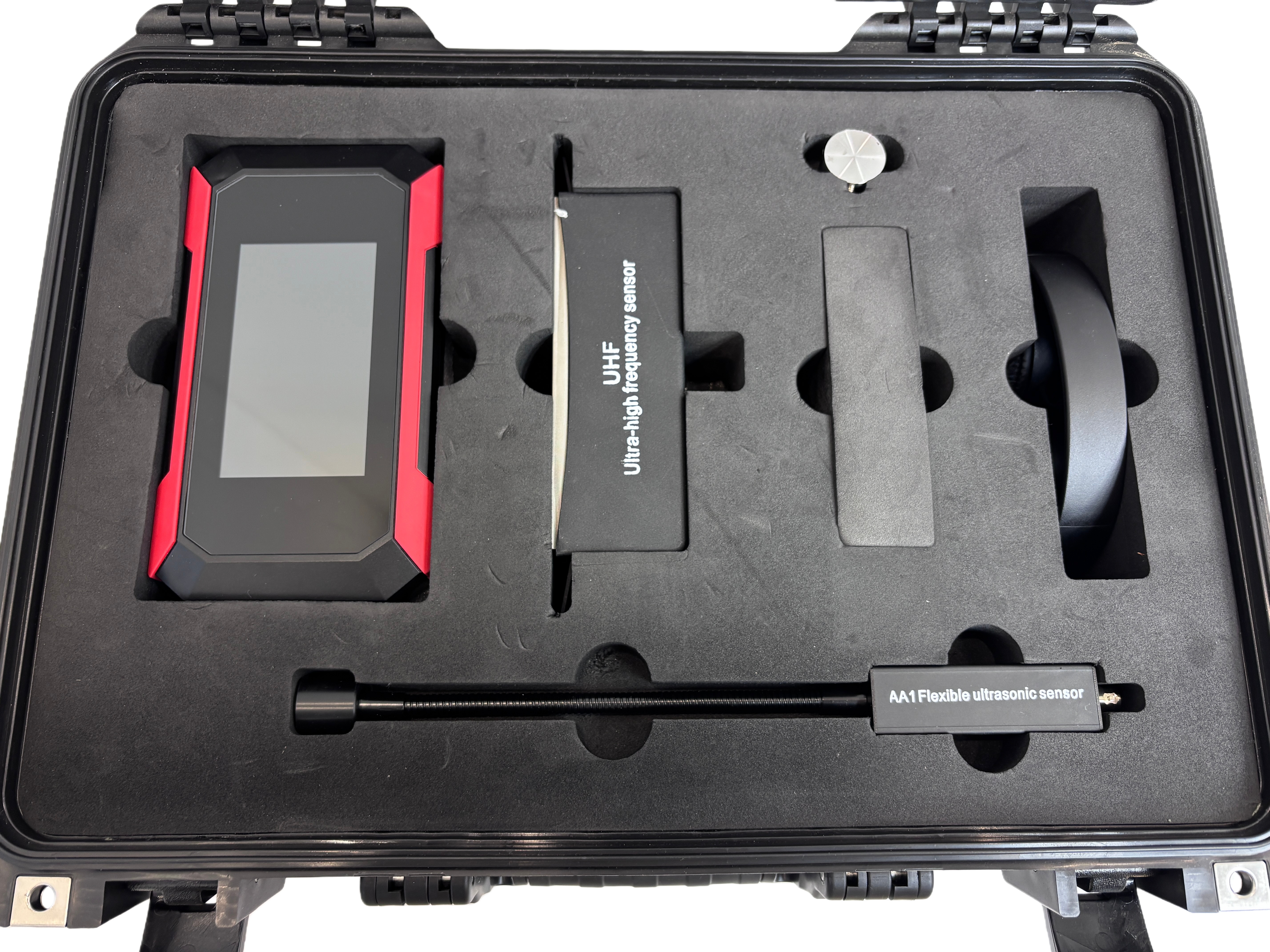

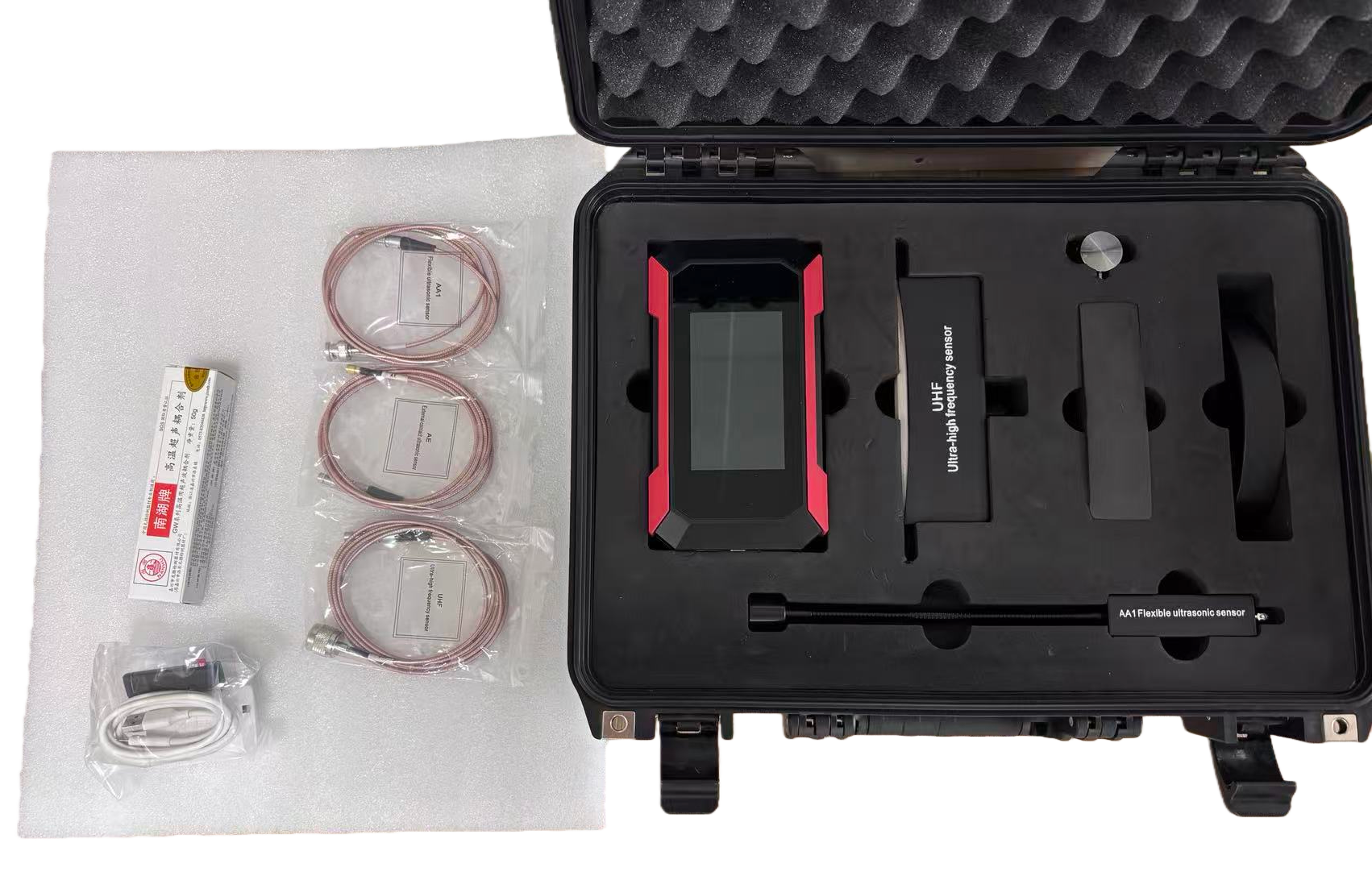

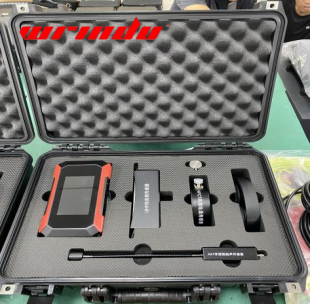

Product Configuration List
Name | Quantity | Unit | Remarks |
1. Host | 1 | Unit | Built-in TEV and AA ultrasonic sensors |
2. AA1 External Non-contact Ultrasonic Sensor (Optional) | 1 | Piece | For PD detection of switchgears |
3. AE External Contact Ultrasonic Sensor (Optional) | 1 | Piece | For PD detection of transformers, GIS, motors, etc. |
4. AA2 External Focused Ultrasonic Sensor (Optional) | 1 | Piece | For PD detection of overhead lines |
5. HFCT High-Frequency Current Sensor (Optional) | 1 | Piece | For PD detection of cables |
6. UHF Ultra-High Frequency Sensor (Optional) | 1 | Piece | For PD detection of GIS |
7. Test Cable | 1 | Set |
|
8. Host Charger + Charging Cable | 1 | Set |
|
9. Headphone | 1 | Piece | For monitoring discharge sounds |
10. Coupling Agent (Optional) | 1 | Piece |
|
11. SD Card + Card Reader | 1 | Set |
|
12. User Manual | 1 | Copy |
|
13. Factory Inspection Report | 1 | Copy |
|
14. Certificate of Conformity | 1 | Piece |
|
15. Warranty Card | 1 | Piece |
|
