Wrindu RDPDD-104H Comprehensive Partial Discharge Tester | Digital PD Measurement System
- Wrindu
- Shanghai, China
- about 10 working days
- 1000 set/month
- RDPDD-104H

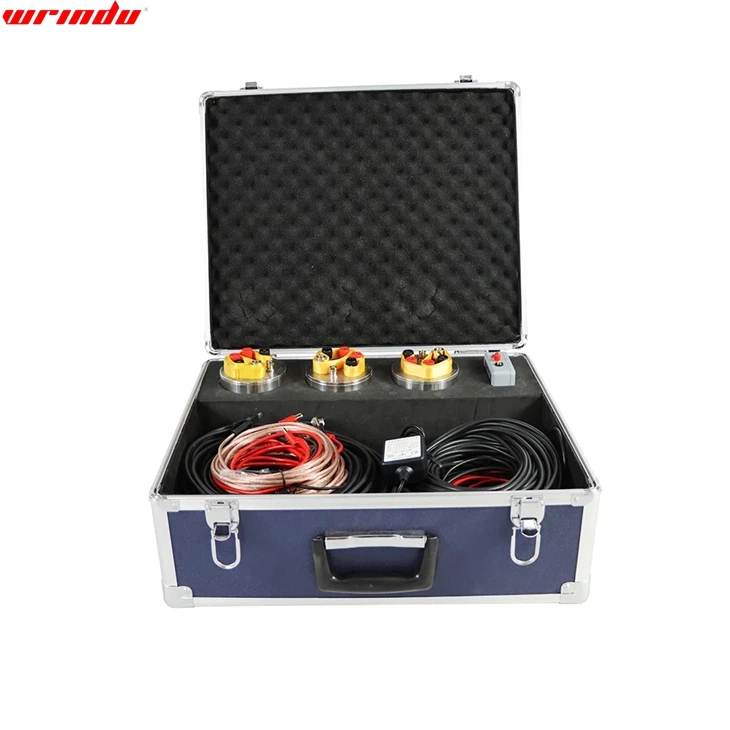

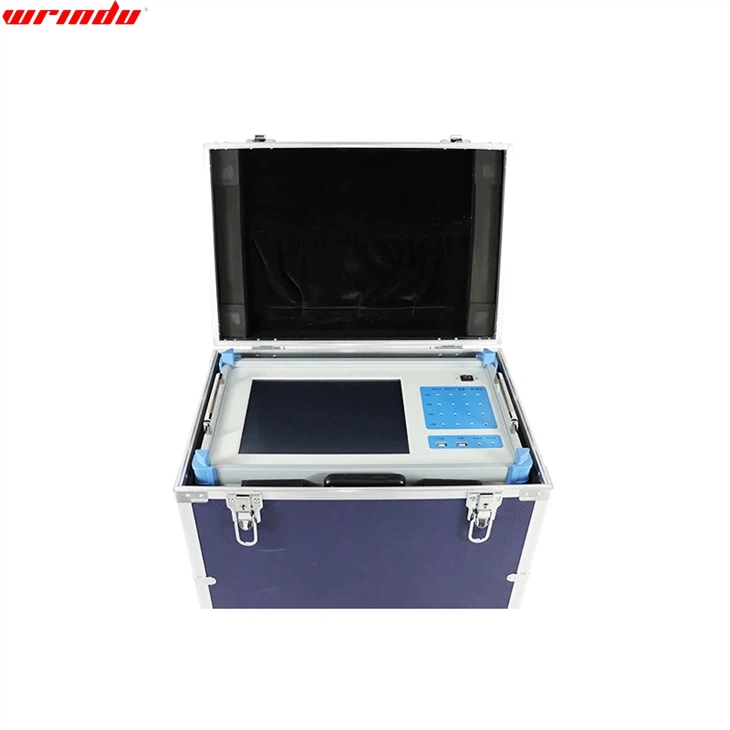

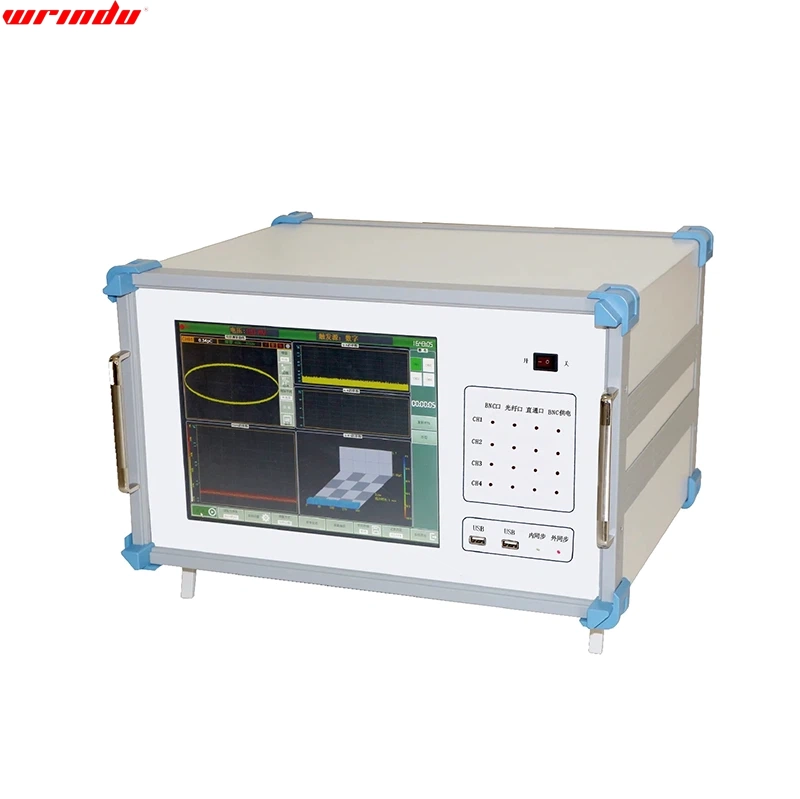

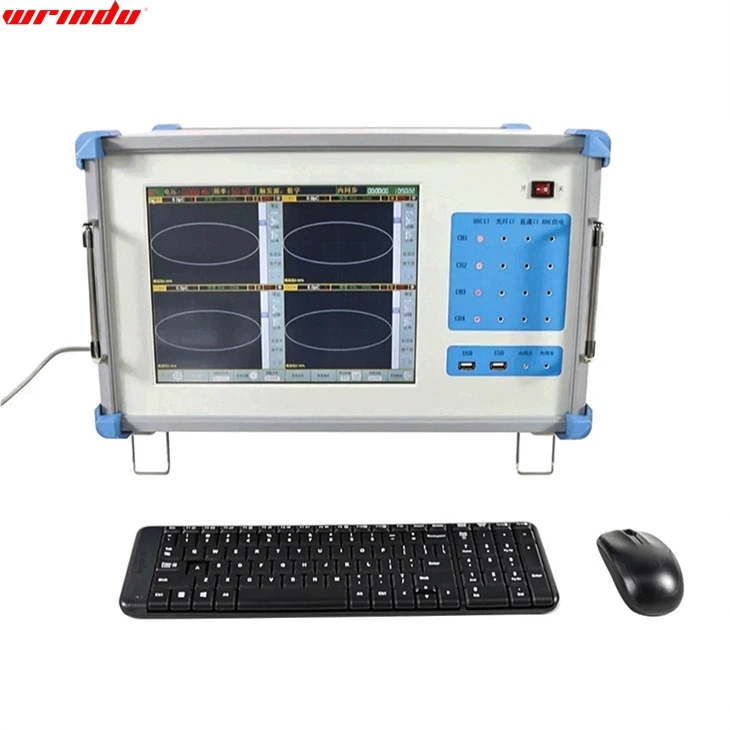

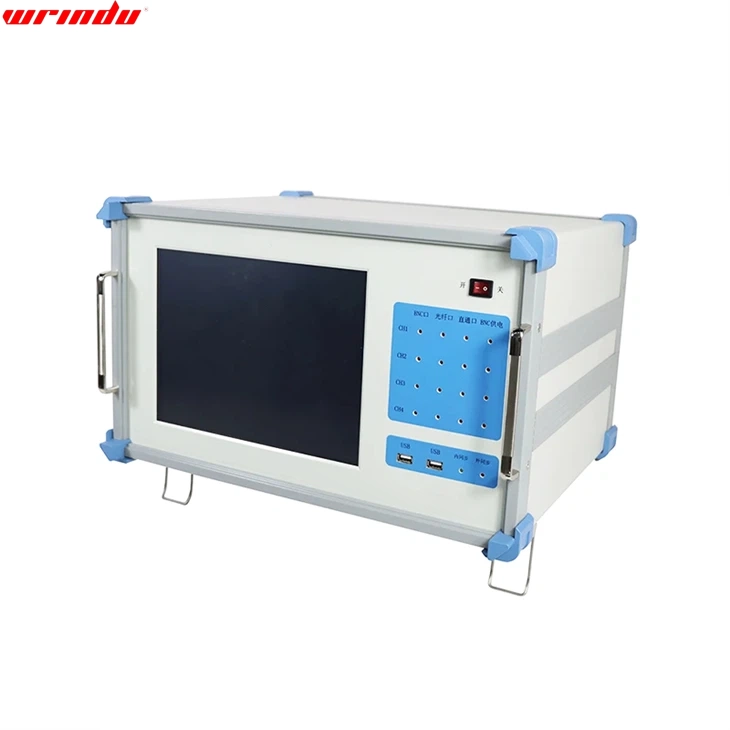

The Wrindu RDPDD-104H Comprehensive Partial Discharge Tester is an advanced digital instrument designed for accurate partial discharge measurement, detection, and analysis. Equipped with multiple signal input channels and a high-quality TFT LCD display, it provides reliable performance for online monitoring and condition assessment of high-voltage equipment. The tester meets international testing requirements and complies with standards such as IEC 60270 and GB7354-2003, ensuring accurate and dependable partial discharge diagnosis.
Product Features
1. Features multiple signal channels with a desktop design, TFT LCD display, stable system performance, low failure rate, and excellent resistance to electromagnetic interference.
2. Combines partial discharge measurement, fault diagnosis, and online monitoring functions in one integrated system.
3. Automatically creates test reports based on the testing procedure, allowing users to view, save, and print reports easily.
4. Supports data replay function, enabling saved test files to be restored and displayed as waveforms for further analysis.
5. Equipped with 4 electrical signal input channels and 4 optical signal input channels, allowing simultaneous measurement and analysis of multiple partial discharge signals.
Product Specification and Technical Parameters
Technical characteristics | |
Number of interfaces | Free-running 4 interfaces |
Sampling rate | 1M. 5M. 10M selected |
Sampling accuracy | 12bit |
Range changing | -40dB, -20dB, 0dB, 20dB, 40dB, 60dB, totally 6 types |
Measurement frequency range | 3dB bandwidth 10kHz～1MHz |
Digital filtering | 10kHz ~ 1MHz freely selected |
Program controlled filter subsection | Low frequency: 10kHz, 20kHz, 40kHz, 80kHz High frequency: 100kHz, 200kHz, 300kHz, 400kHz |
Nonlinear error in the range | 10% |
Measurement range | 0.1pC ~ 100,000pC |
Sensibility | 0.1pC |
Capacitance range of the measured product | 6pF ~ 250µF |
Frequency range of test power | 50 ~ 500Hz |
Display | |
Display screen | 12” TFT true color touchable LCD screen |
Resolution | 1024×768 |
Interface | |
USB | 3 types, use of external mouse, keyboard or other USB devices. |
Power supply | AC 230V; Frequency 50Hz; Power 300W |
Electric signal interface | 4 BNC interfaces, use of signal input. |
Optical signal interface | 4 types, use of signal input |
Network interface | 1 type |
Landing button | External landing |
General instruction | |
CPU | Basic frequency 1.60GHz |
Ram | 2.0GB |
Hard disk | 128GB SSD |
System | Windows Xp |
Operating environment | Environment ambient: -10 ~ 45℃ ; Humidity: ≤95%RH |
Dimensions | Length×width×height: 474mm × 288mm × 370mm |
Weight | 15.8kg |
