RDPDZ-104H Partial Discharge Detector | Wrindu

  • PD Tester, partial discharge testing equipment, Partial Discharge Test kit, PD Detector
Partial Discharge Tester
  • Wrindu
  • Shanghai, China
  • about 10 working days
  • 1000 set/month

The RDPDZ-104H Partial Discharge Tester offers high performance, multi-interface, TFT LCD display, and expert analysis for continuous online monitoring of high voltage equipment.


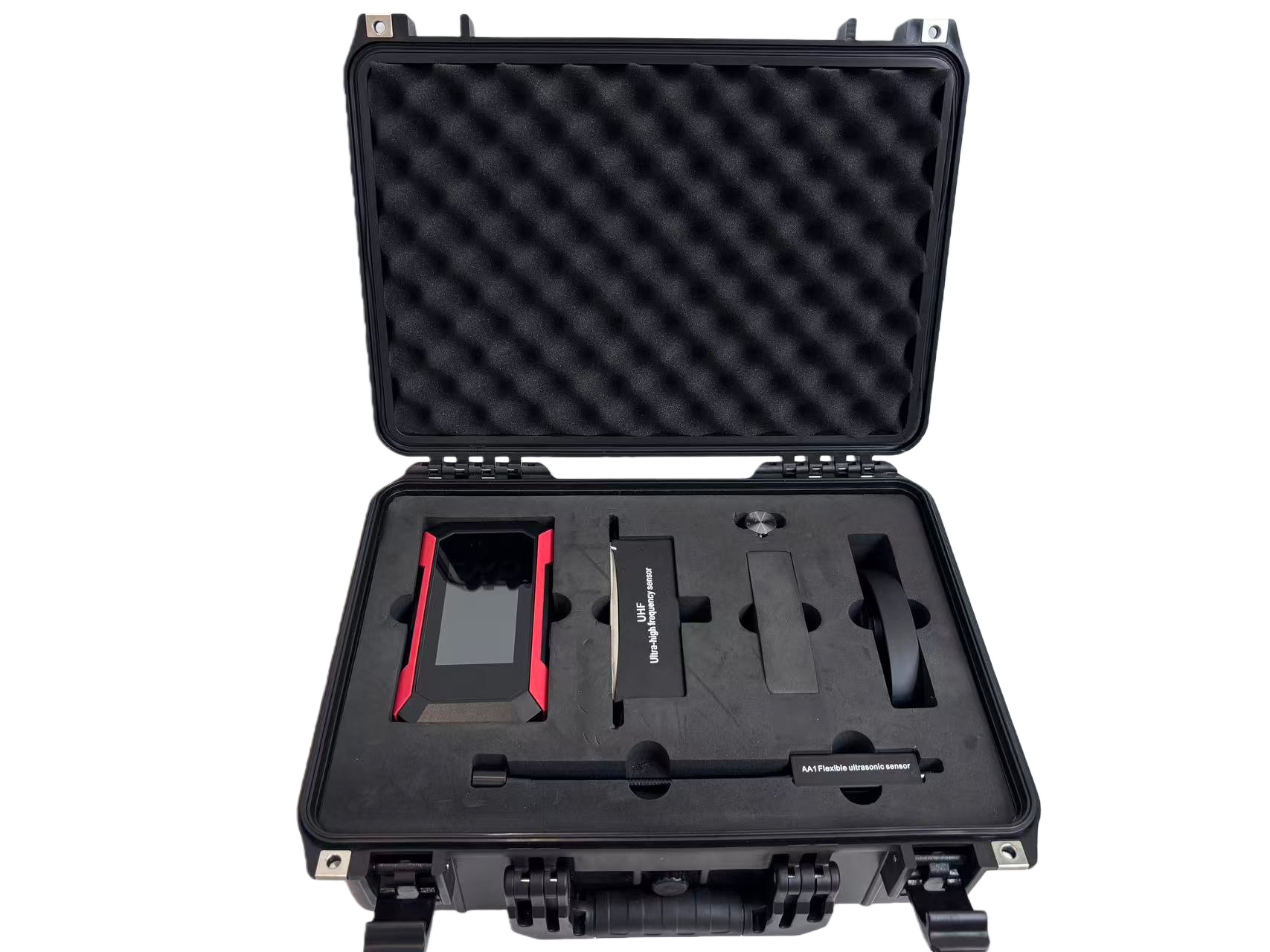

Description

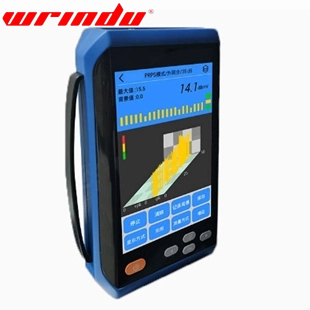

RDPDZ-104H PD patrol instrument is a multifunctional hand-held instrument, which is based on ground wave, ultrasonic, UHF and high-frequency current detection methods. It can test the PD of equipment, read out the PD amplitude and spectrum waveform, provide the storage and reading functions of 2D and 3D spectrum, and evaluate the PD of electrical equipment well. RDPDZ-104H PD patrol detector is suitable for local discharge detection of GIS, switch cabinet, transformer, power cable and other electrical equipment. The equipment is portable and easy to operate, and all the tests have no influence on the operation of high-voltage equipment. The product can observe the measurement signal for multiple periods, identify the frequency of discharge, and analyze it through various modes, so that the fault can be clearly judged.


The RDPDZ-104H PD patrol instrument adopts a brand-new design, uses the popular Android system at present, and is easier to operate and use. In addition, it integrates the function of 5 million cameras to make patrol records convenient. RFID is conducive to expanding the application of the Internet of Things; The internal discharge type library is integrated, which is convenient for comparison and verification of discharge conditions.




Product Features


1. Compact and lightweight design for easy carrying and on-site testing.

2. Backlit LCD screen for clear viewing in different lighting conditions.

3. Built-in lithium battery for convenient field operation.

4. Stores and displays 2D and 3D maps for easy data review.

5. Automatic gain control helps reduce interference and improve signal stability.

6. Multiple anti-interference functions improve the signal-to-noise ratio and support accurate detection.

7. Built-in RFID, Wi-Fi, and Bluetooth functions support data transfer and IoT applications.

8. Built-in discharge pattern library helps compare and identify discharge signals.

9. Multi-cycle time-domain waveform display helps distinguish discharge signals from external interference.

10. Exports inspection data to a PC through an SD card or USB drive for report preparation.


For more types of PD Testers, click the Partial Discharge Testing Equipment.


How Does the RDPDZ-104H Detect Partial Discharge?


The RDPDZ-104H combines different detection methods to help technicians inspect equipment from multiple points and compare signal characteristics.


Detection method

Main function

Typical application

TEV

Detects transient voltage signals on the surface of metal enclosures

Switchgear and metal-enclosed equipment

Non-contact ultrasonic

Detects ultrasonic signals in the air near equipment

Surface discharge and external discharge inspection

Contact ultrasonic

Detects ultrasonic signals through contact with the equipment surface

Localized discharge inspection

HFCT (optional)

Detects high-frequency current pulses

Cable and grounding-path discharge inspection

UHF (optional)

Detects UHF electromagnetic signals

GIS and other equipment suitable for UHF inspection


Different methods provide different types of signal information. Using them together can help technicians compare results and distinguish possible discharge signals from external interference. The final diagnosis should also consider equipment type, test conditions, and the technician's experience.


Technical Parameters


Host parameter

Number of detectable channels

4 channels: 1TEV,1US,1UHF(wireless,optional),

1 HFCT(wireless,optional)

Sampling accuracy

12bit

Synchronization mode

Internal synchronization, external synchronization, optical synchronization

TEV

Measurement frequency range

3M-100MHz

Measuring range

0~60dB

Measurement error

±2dB

Resolution

1dB

Maximum pulses per cycle

720


Minimum pulse frequency

10Hz

Output interface

Standard SMA connection host

Non-contact US

Center frequency

40kHz

Resolution

0.1uV

Accuracy

±0.1uV

Measuring range

0.5uV~1mV

Output interface

Standard SMA connection host

Contact US

Frequency range

20kHz~300kHz

Output impedance

50Ω

Detection sensitivity

0.1mV

Measuring range

0.1mV~1V

Output interface

Standard SMA connection host



HFCT (Optional)

Measurement frequency range

1M-30MHz

Transmission impedance

>5mV/mA(10MHz )

Output impedance

50Ω

Measuring range

-20~80dB

Measurement error

±1dB

Resolution

1dB

Output interface

BNC interface-signal conditioning unit, wirelessly connected to the host

UHF (Optional)

Measurement frequency range

300MHz~1.5GHz

Detection sensitivity

< -60dBm

Receiving method

The antenna

Transfer method

Coaxial cable

Output method

BNC interface - signal conditioning unit, wireless connection to the host

Hardware

Display screen

5.0 inch TFT true color LCD screen

Resolution

800×480

Operate

Touch/Key

Data storage

TF card

Interface

3.5mm stereo headphone jack

Power supply

DC-12V/2A DC Power Supply

Extended function

Us-type C/5 million cameras /RFID/WIFI/ Bluetooth


Power supply

Internal power supply

Battery powered (4800mAH 7.4V)

Normal working hours

About 7 hours, and the full charge time of the battery is about 3 hours.

Measure

Length× Width× Height

235mm×133mm×48mm

Weight

0.85kg

Environment

Operating temperature

-20℃~50℃

Storage temperature

-40℃~70℃

Humidity

10%-90% (non-condensing)

Altitude

≤3000m


Why Use the RDPDZ-104H for On-Site PD Inspection?


The RDPDZ-104H combines several detection methods in one portable instrument. Technicians can use TEV and ultrasonic detection for switchgear inspection, and select optional UHF or HFCT functions when the equipment and inspection method require them.


Its waveform and spectrum displays support signal review, while the discharge pattern library provides reference information for comparison. The built-in camera and RFID function also help keep inspection records organized.


The instrument is designed for non-invasive inspection. It can help technicians identify possible PD activity without taking high-voltage equipment out of service. However, measurement results should be interpreted in the context of the equipment, site conditions, and other diagnostic evidence.


Wrindu's Warranty and Technical Support


Wrindu provides a one-year warranty for all products. During the warranty period, customers can receive technical guidance and after-sales support to help with product operation and troubleshooting.


Wrindu also provides technical assistance to help customers understand the instrument's detection functions, use the correct sensors, and review measurement results. This support helps customers use the equipment properly and maintain reliable inspection work.
