Trolley-type Cable Fault Pre-locator
- Wrindu
- Shanghai, China
- about 10 working days
- 1000 set/month
- RDCD-Ⅲ/RA52

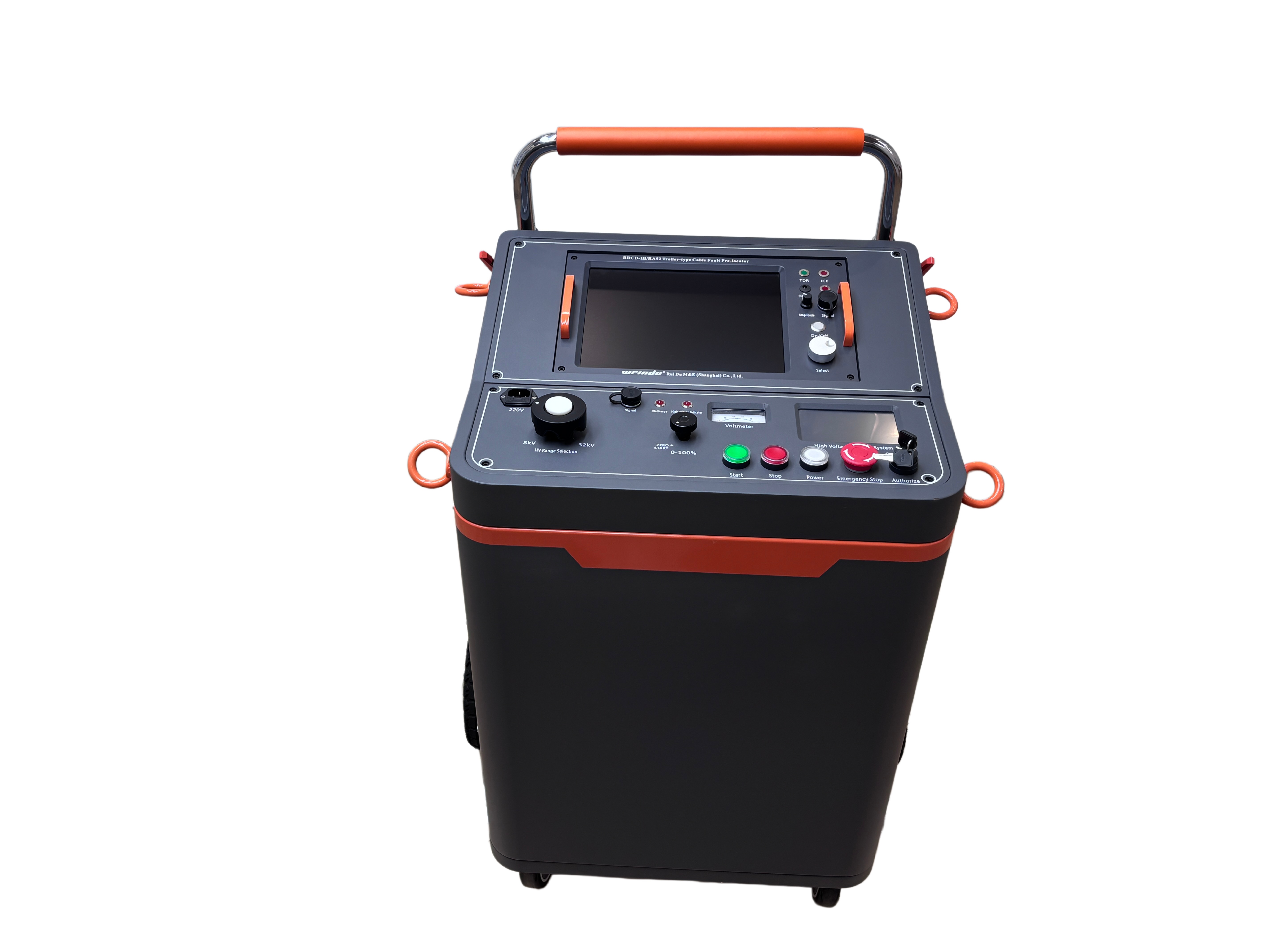

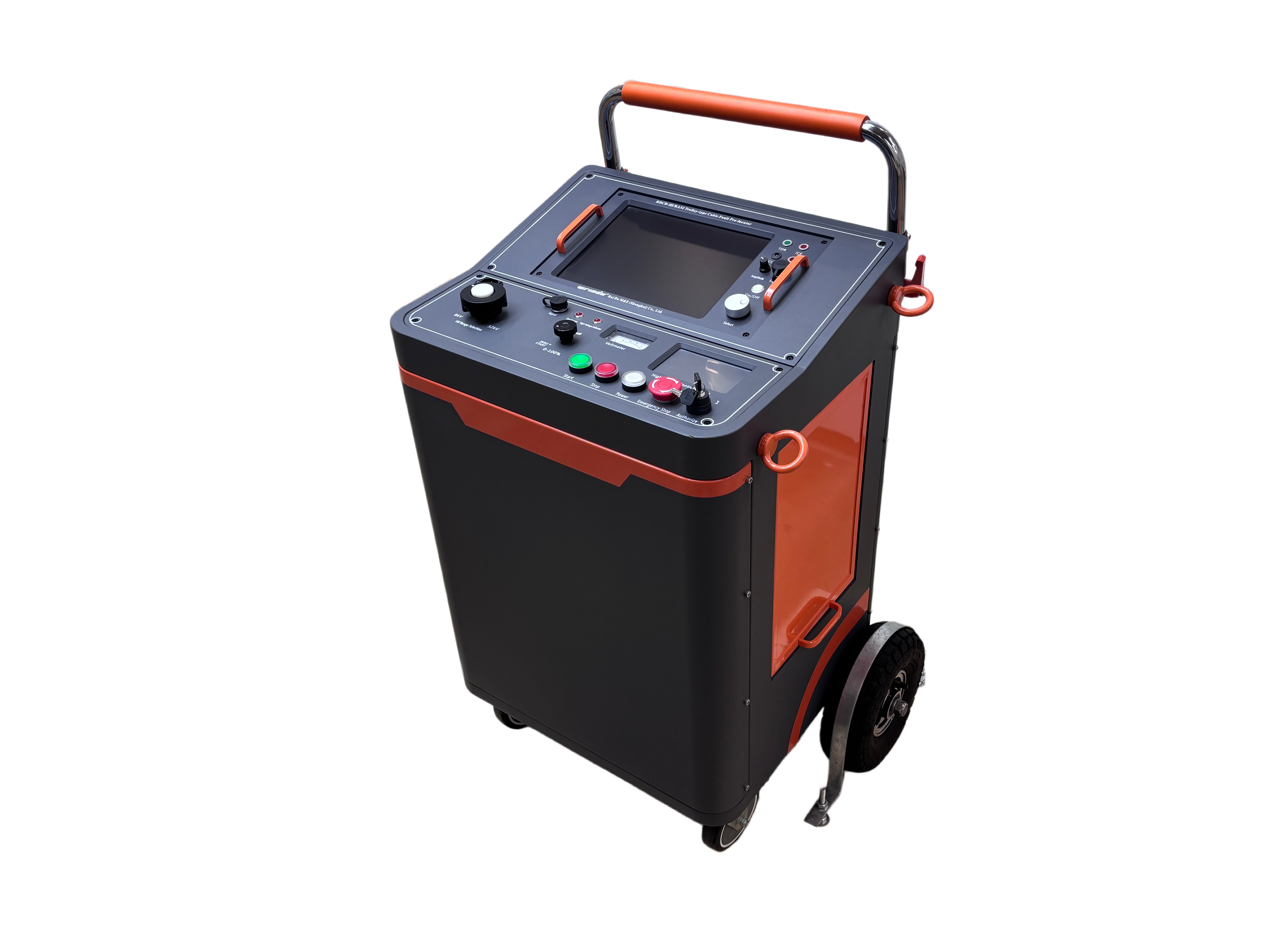

RDCD-III/RA52 Trolley-type Cable Fault Pre-locator features 3 built-in capacitance gears for various voltage-level cable insulation fault detection. Fast voltage boosting, touch-screen control, 25m test line & full safety protection ensure efficient, safe & reliable cable fault location.
Product Features
l Three built-in capacitance gears are suitable for testing various main insulation faults of power cables with different voltage levels.
l Fast voltage boosting speed and high power save time and reduce labor costs.

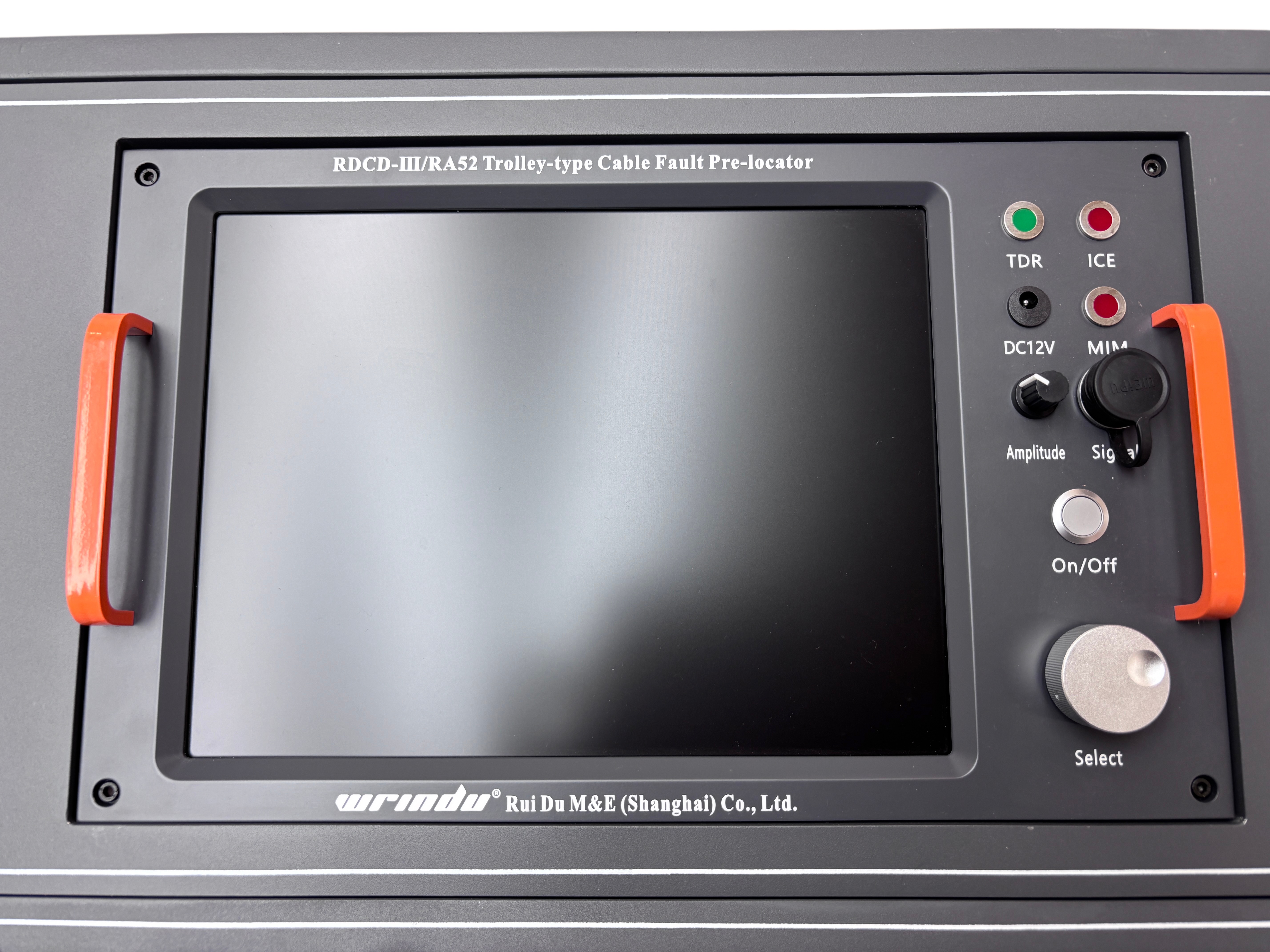

l The touch screen control system of the power frequency high-voltage power supply unit reflects human-computer interaction, with convenient operation and simple and intuitive display.
l The system is equipped with a 25m test line, which is convenient for cable fault testing in long-distance, short-distance and complex environments.
l The whole machine is designed according to European standards and is equipped with a permission key for professional use.

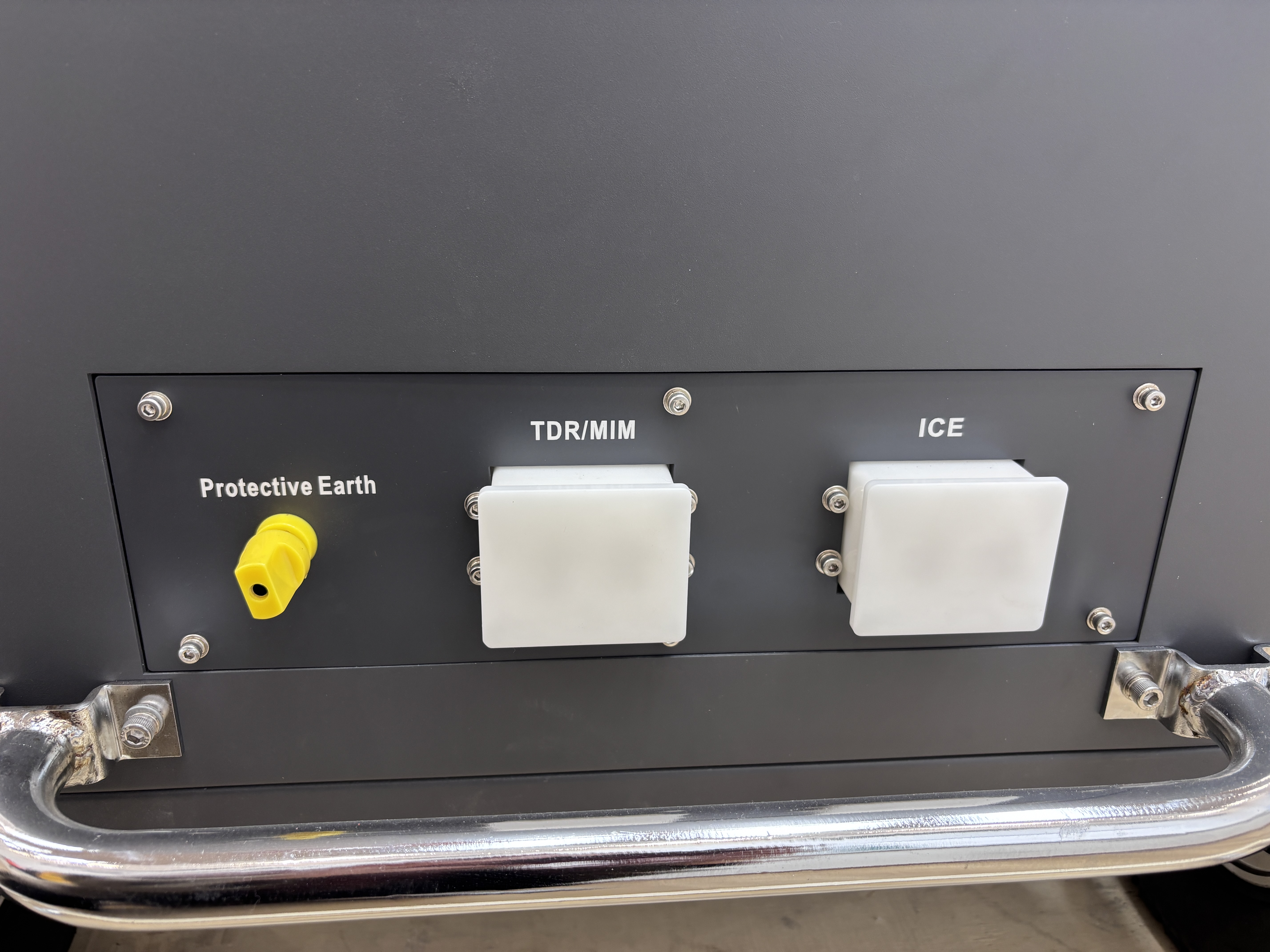

l The whole machine has a grounding loop and step voltage monitoring protection system to protect the safety of equipment and personnel in real time.
l It has an emergency stop button and automatic discharge function. When emergency stop or shutdown occurs, it will automatically step down and discharge, which is safe and reliable.
l The output high voltage has single-pulse and continuous-pulse functions, which are respectively used with the fully intelligent multiple-pulse cable fault tester and precise locator to find fault points.
High-Voltage Unit
| Item | Technical Parameter |
|---|---|
| Output Voltage | 0–32 kV continuously adjustable |
| High-Voltage Startup | Authorization key required |

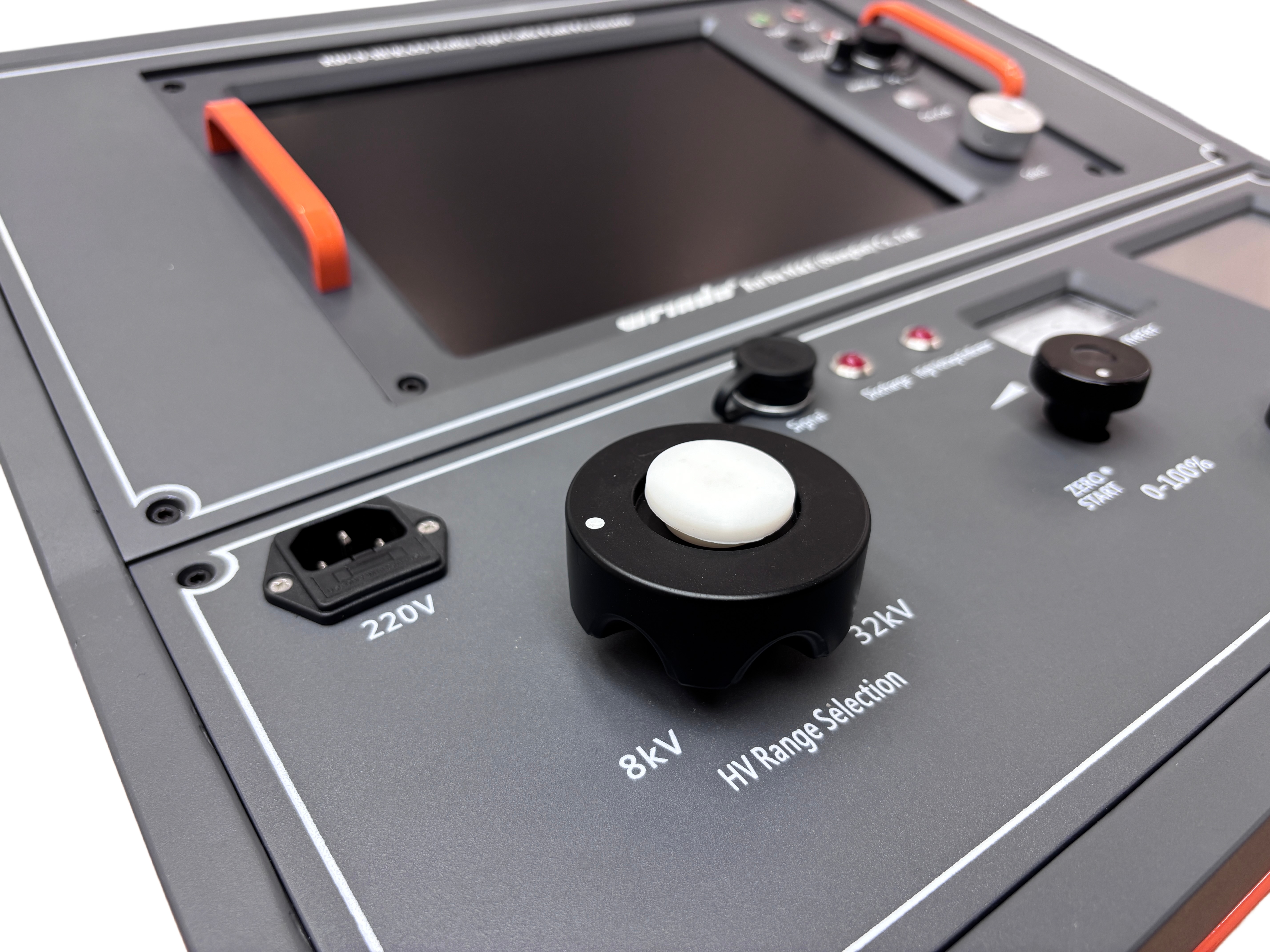

| Built-in Capacitance | 64 μF/8 kV; 16 μF/16 kV; 4 μF/32 kV |
| Maximum Impact Energy | 2048 J |
| Operating Modes | Continuous impulse flash; Single impulse flash |
| Continuous Pulse Period | 1–10 seconds |
| Display | 5-inch color LCD, 800×480 resolution |
| Interface | Chinese prompts, intuitive numerical display |
| Control Software | Stable operation under high voltage |
| Automatic Discharge | Automatic discharge after emergency stop / power failure |
| Input Voltage | AC 220V ±10% / 50Hz |
| Dimensions | 750mm × 560mm × 915mm |
| Weight | 130 kg |
Distance Measurement Unit
| Category | Details |
|---|---|
| Display & Interface | 12.1-inch high-brightness LCD, knob mouse control; sunlight-readable outdoor use; lithium battery powered; shockproof & moisture-resistant engineering plastic case |
| Wireless Connectivity | WIFI + SIM interface for remote data transmission & support; 8 auto-select sampling frequencies (3.125MHz–400MHz), adaptive pulse width |
| Testing Modes | Auto-switch among Low Voltage Pulse, Impulse Current, Multiple Pulse; intuitive wiring & waveform; auto fault recognition, inflection lock, distance calculation |
| Waveform Analysis | Single-screen tri-zone display; 10 real-time waveforms for comparison; auto/manual processing; data storage, playback, analysis |
| Multiple Pulse Generator | 10 low-voltage short-circuit pulses per discharge; auto optimal waveform selection; anti-oscillation interference |
| Precision Locator | Noise-canceling dual-filter; real-time distance digital display; cable path detection |
| Mobile Integration | Bluetooth to phone & wireless headset; dual-operator localization with one probe |
| Professional APP | Remote waveform analysis, case sharing, training, simulation exam |
Product Specifications and Parameters
| Item | Technical Parameter |
|---|---|
| Testable Faults | Open circuit, short circuit, low resistance, high resistance leakage & flashover in various power cables |
| Display | 12.1-inch industrial LCD (Linux OS) |
| Storage | 32GB SSD |
| Languages | Chinese, English, Russian |
| Testing Methods | Low Voltage Pulse, High Voltage Impulse, Multiple Pulse |
| Operation | Touchscreen + optical encoder knob (touchscreen optional) |
| Pulse Width / Amplitude | 100ns~10μs, 120V |
| Gain Adjustment | -20…+40dB |
| Output Impedance | 120Ω |
| Remote Connectivity | WIFI + SIM interface |
| Test Distance | 5m–100km |
| Minimum Test Distance (Blind Zone) | 5m |
| Localization Accuracy | ±0.2m |
| System Error | ≤±1% |
| Multiple Pulse Generator | Impact voltage ≤40kV |
| Resolution | v/(2f) m (v: wave velocity m/μs; f: sampling frequency MHz) |
| Sampling Frequencies | 400MHz, 200MHz, 100MHz, 50MHz, 25MHz, 12.5MHz, 6.25MHz, 3.125MHz |
| Power | AC 220V±10%, ≤15W; DC 12V (7AH), ≤20W |
| Battery Life | Up to 6 hours continuous operation |
