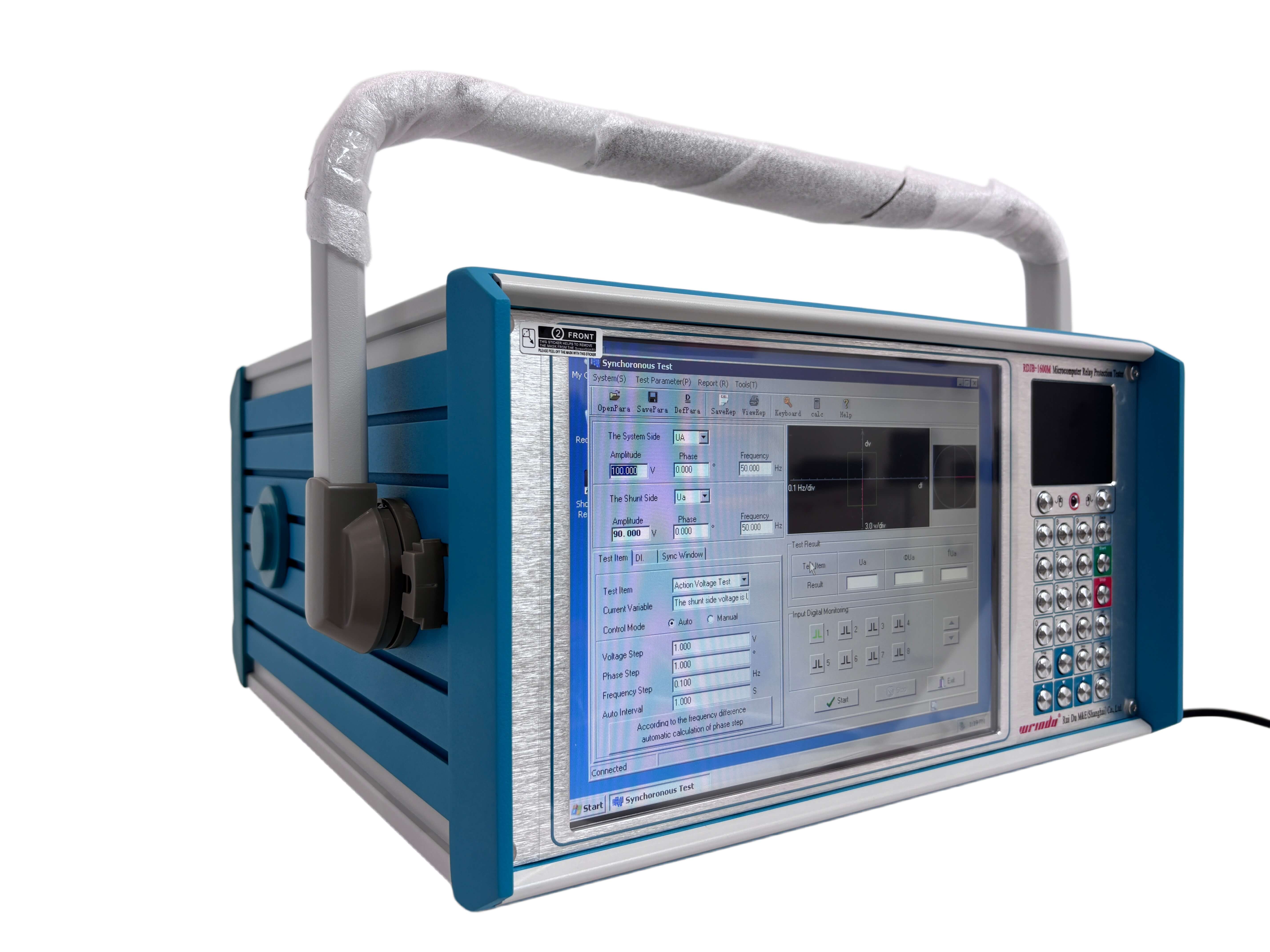

RDJB-1600M Six Phases Relay Protection Tester
- Wrindu
- Shanghai, China
- about 10 working days
- 5000 set/month
- RDJB-1600M
The RDJB-1600M Microcomputer Relay Protection Tester is a compact and high-accuracy testing device developed with advanced microelectronic technology. It combines the functions of large relay testers with the portability and easy operation of small testers.
With reliable performance, flexible operation, and high cost-effectiveness, the RDJB-1600M is an ideal tool for relay protection engineers to test and maintain power system protection devices.
Product Features

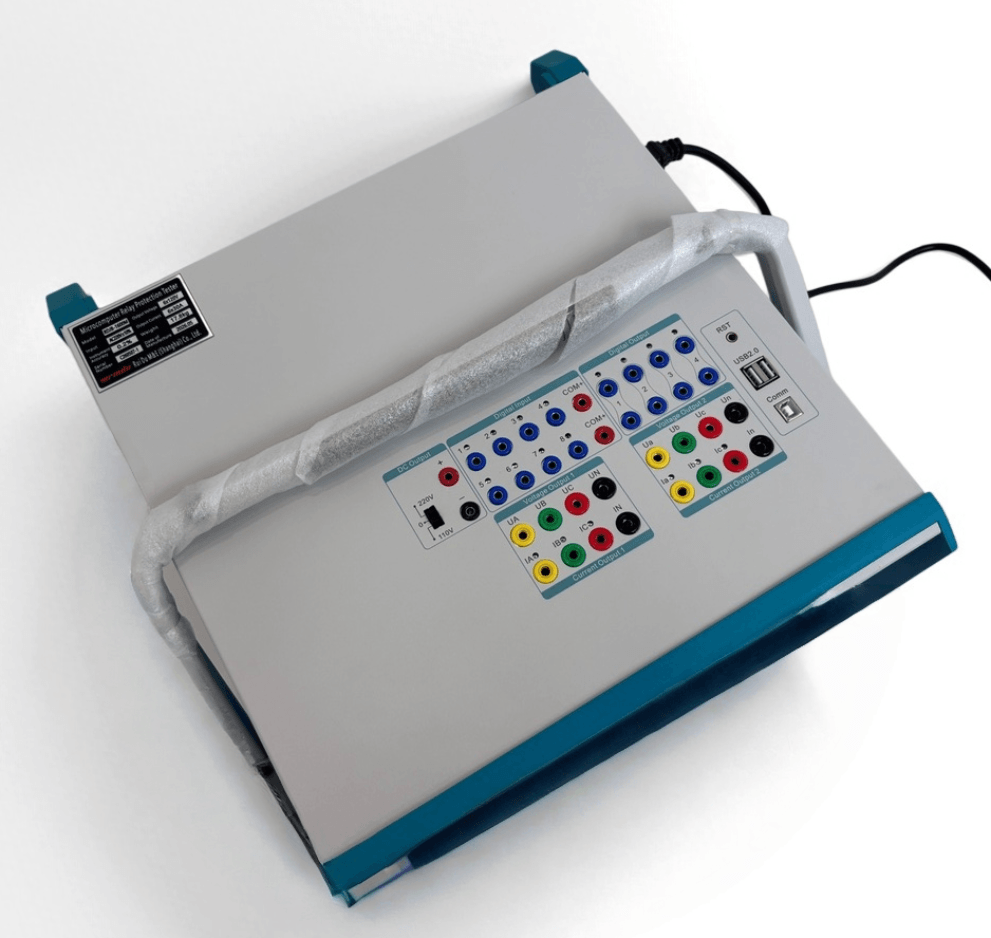

1. Supports flexible voltage‑current combinations. It outputs six‑phase voltage and six‑phase current for multiple modes such as 12‑phase output. It works with traditional tests and supports three‑phase transformer differential tests.

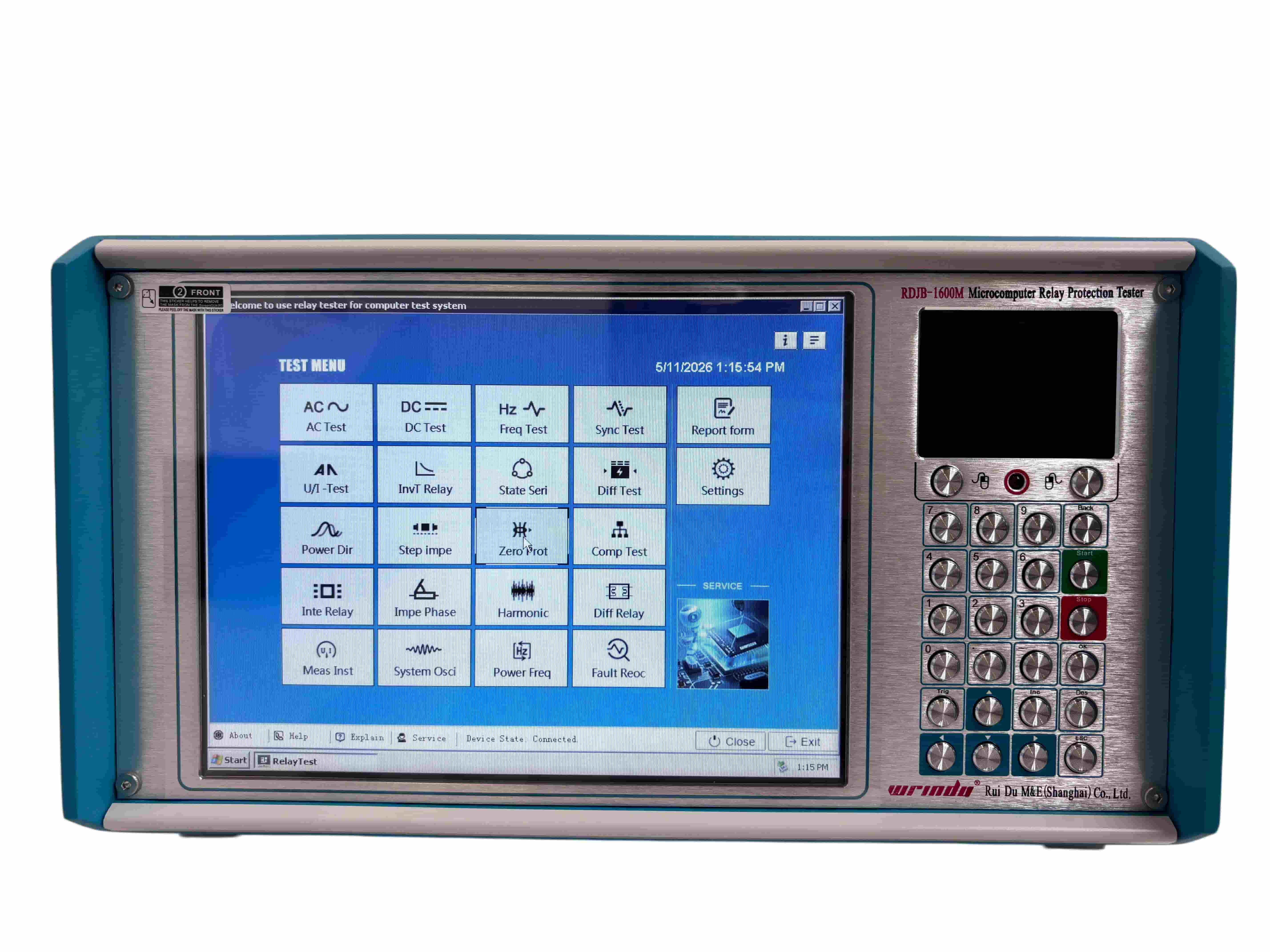

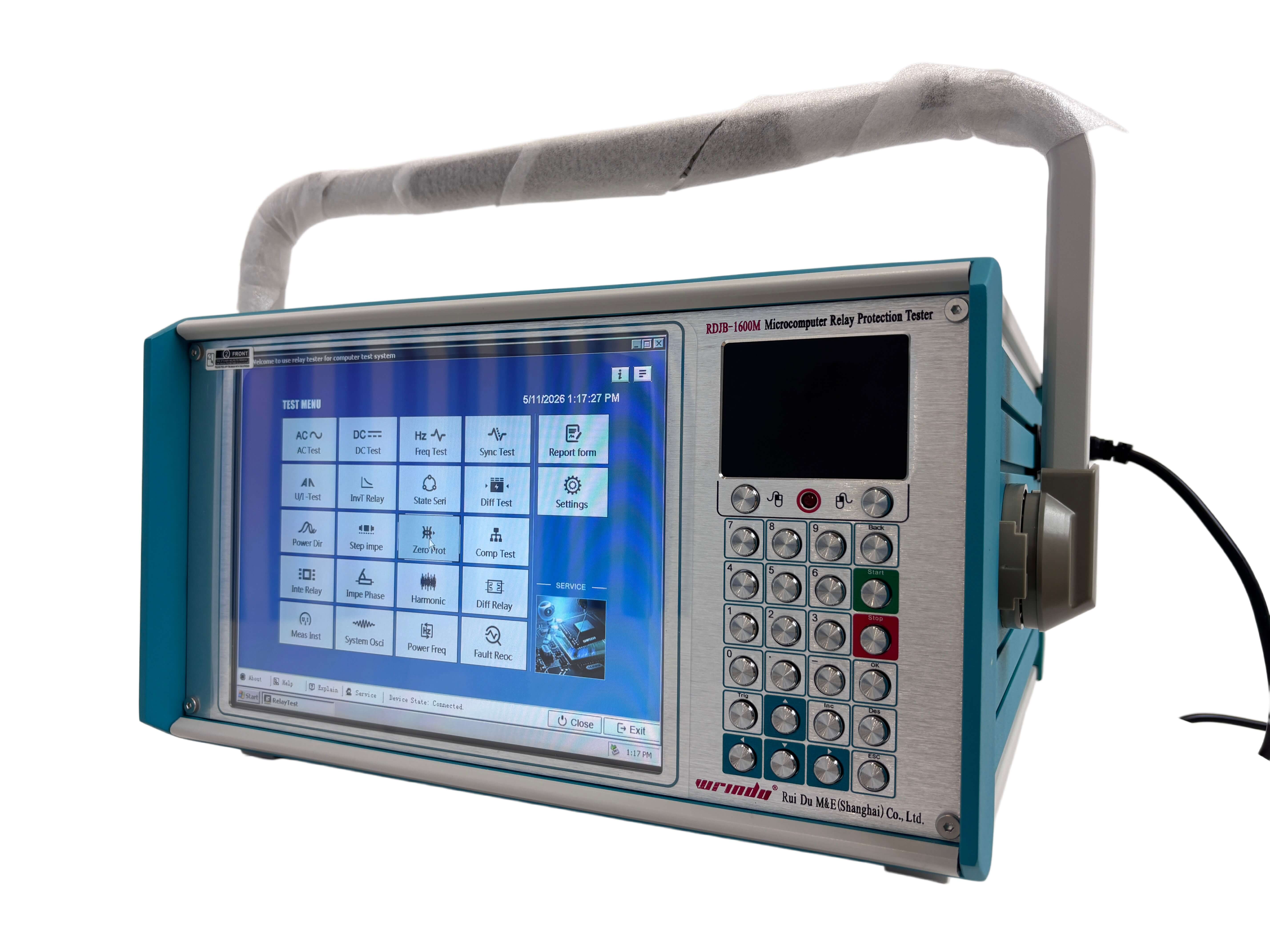

2. Supports standalone and PC‑controlled operation. Run the device locally or control it via external laptops or desktops for easy, efficient and stable operation.
3. Uses new high‑fidelity linear power amplifiers instead of switching amplifiers. It avoids high‑and‑mid frequency test interference and keeps accurate, smooth waveforms across full‑range current output.
4. High‑performance DSP‑controlled mainframe. It delivers high‑precision, low‑distortion output waveforms. Compact, lightweight and fully‑featured, it works right after power‑on for easy field testing.
5. Feature‑rich software. It handles complex automated verification, protection setting scanning, fault playback, real‑time data saving, vector display and online report printing. Six‑phase current simplifies three‑phase differential protection tests.

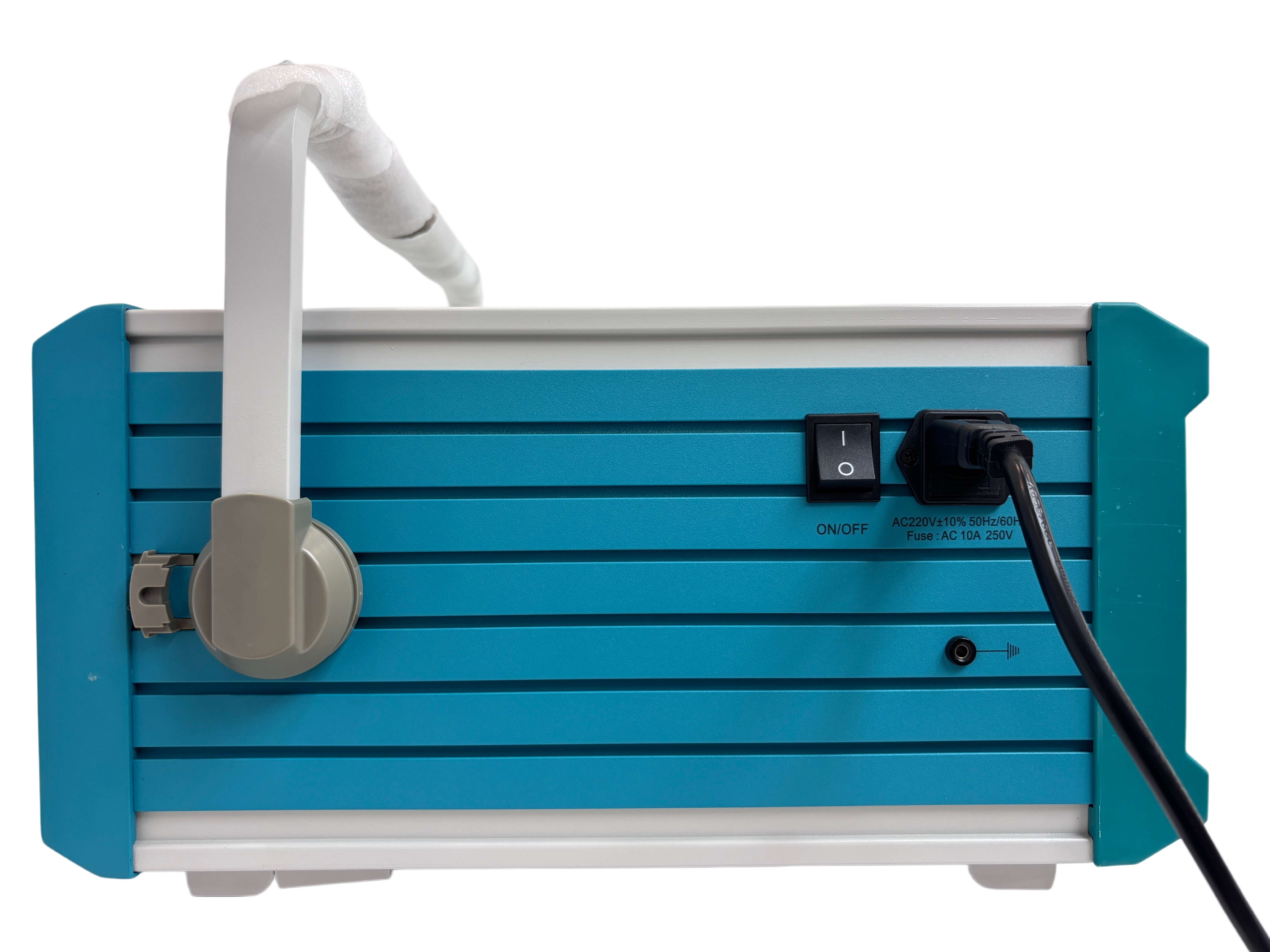

6. Built‑in independent adjustable DC output for 110 V and 220 V.
7. Comes with USB port for communication with computers and other external devices.

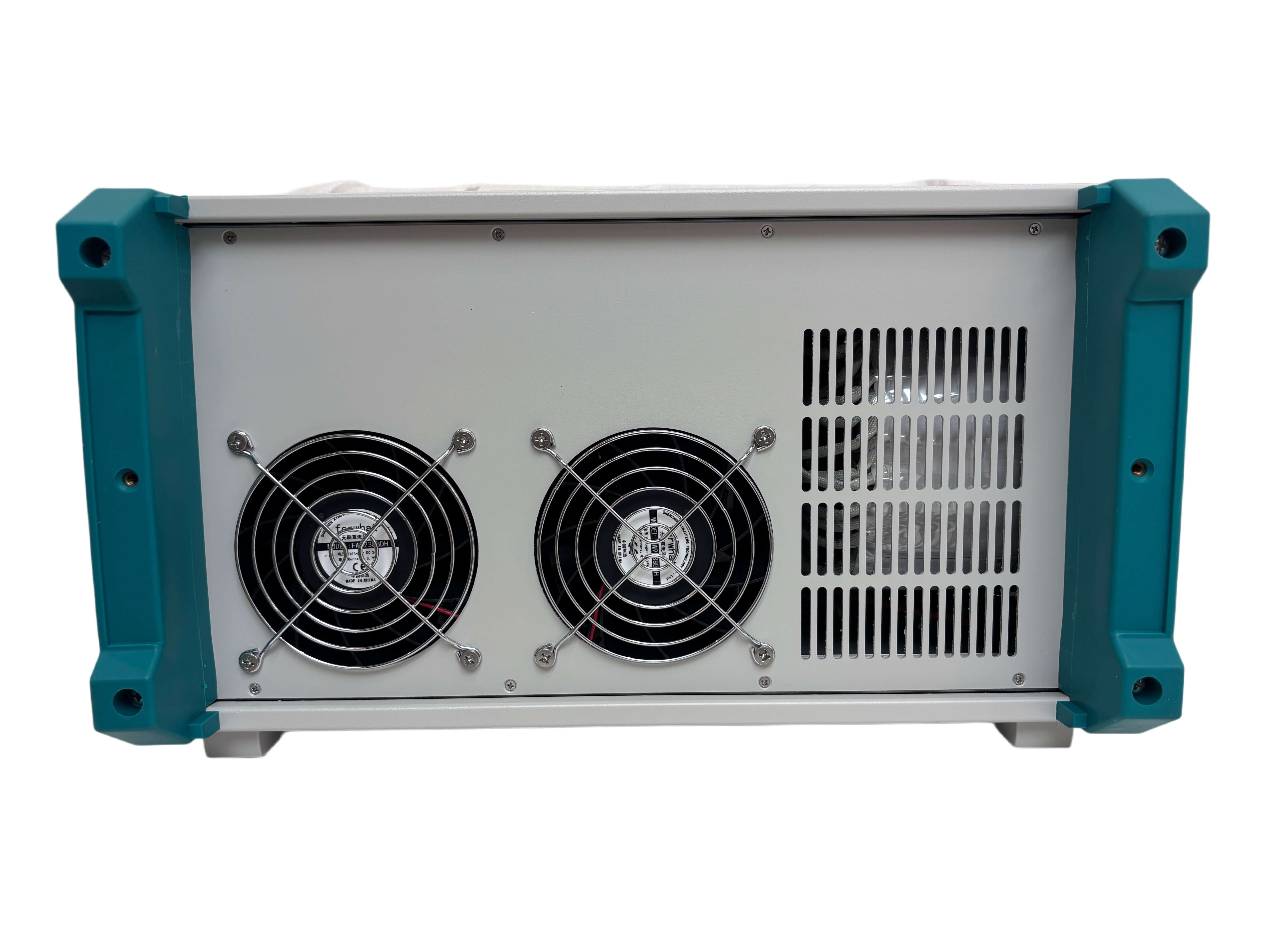

8. Complete self‑protection design. It has optimised heat dissipation, power soft‑start, fault self‑diagnosis and output latching for reliable hardware protection.
Product Specifications and Technical Parameters
| Item | Specification |
|---|---|
| AC Current Source | |
| Six-phase current output | 0 ~ 30A / phase; Output accuracy: 0.2 grade |
| Three-phase current output | 0 ~ 60A / phase |
| Six-phase parallel current output | 0 ~ 180A |
| Long-time working current | 10A (allowed RMS value) |
| Maximum output power (phase current) | 300VA |
| Maximum output power (six-phase parallel current) | 1000VA |
| Working time at maximum six-phase parallel output | ≤ 5s |
| Frequency range (fundamental wave) | 0 ~ 1000Hz |
| Harmonic order | 2 ~ 20 |
| Phase adjustment range | 0 ~ 360° |
| DC Current Source | |
| Current output | 0 ~ ±10A / phase |
| Output accuracy | 0.5 grade |
| Maximum load voltage | 20V |
| AC Voltage Source | |
| Phase voltage output | 0 ~ 120V RMS; Output accuracy: 0.2 grade |
| Line voltage output | 0 ~ 240V RMS |
| Output power (phase voltage / line voltage) | 75VA / 100VA |
| Frequency range (fundamental wave) | 0 ~ 1000Hz |
| Harmonic order | 2 ~ 20 |
| Phase adjustment range | 0 ~ 360° |
| DC Voltage Source | |
| Phase voltage output amplitude | 0 ~ ±160V |
| Line voltage output amplitude | 0 ~ ±320V |
| Output accuracy | 0.5 grade |
| Output power (phase voltage / line voltage) | 70VA / 140VA |
| Switching Terminal | |
| Input channels | 8 channels |
| Free contact input | 1 ~ 20mA, 24V |
| Electric potential contact input | "0": 0 ~ +6V; "1": +11V ~ +250V |
| Output channels | 4 channels |
| Output capacity | 110V/2A; 220V/1A |
| Time Measurement | |
| Measurement range | 1ms ~ 9999s |
| Measurement accuracy | 1ms |
| Power Supply | |
| Input power | AC 220V ±10%, 50Hz |
FAQs
1. What is the RDJB-1600M Microcomputer Relay Protection Tester used for?
The RDJB-1600M is used for testing and verifying relay protection systems, including overcurrent protection, differential protection, and other protection devices in power systems.
2. How many current and voltage channels does the RDJB-1600M provide?
The tester supports six-phase current and six-phase voltage output, allowing flexible combinations for different relay protection test requirements.
3. Can the RDJB-1600M test transformer differential protection?
Yes. The six-phase current output function makes it suitable for three-phase transformer differential protection testing.
4. Can the relay protection tester work with a computer?
Yes. The RDJB-1600M can operate independently or connect to a laptop or desktop computer through the USB communication interface for easier operation and data management.
5. What are the advantages of the linear power amplifier design?
The linear power amplifier provides stable waveform output with low distortion, helping improve testing accuracy and reduce interference during relay tests.
