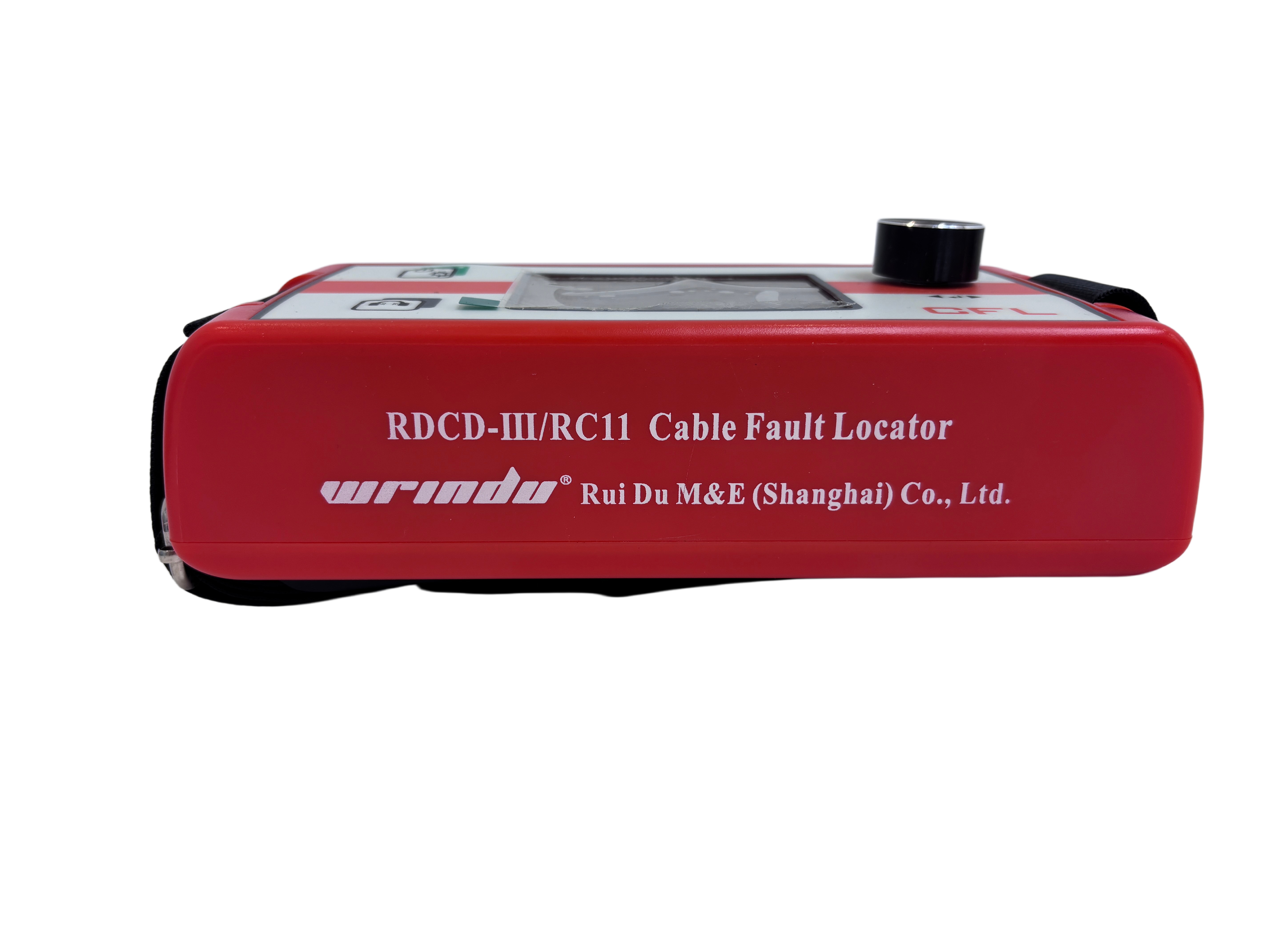

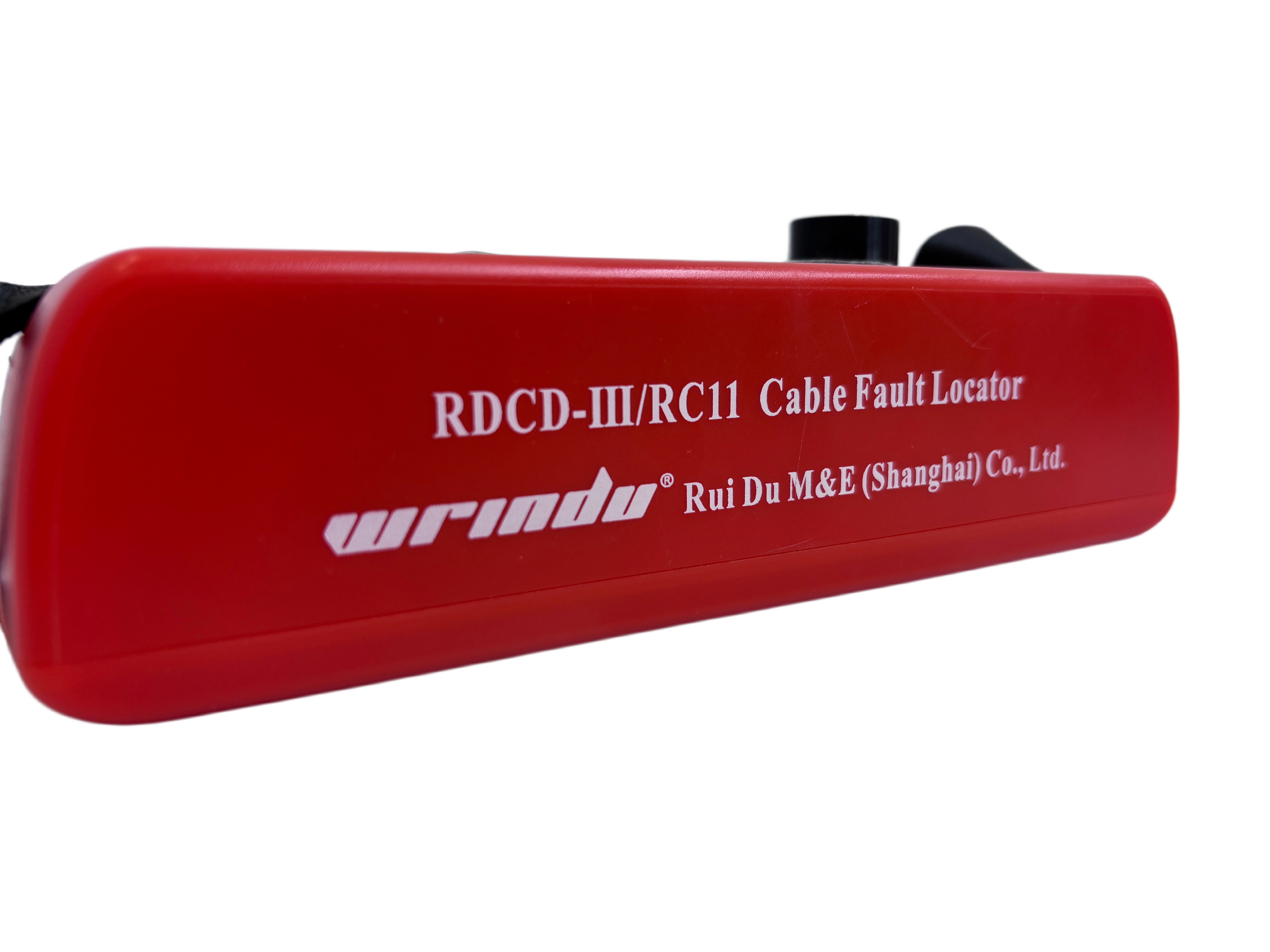

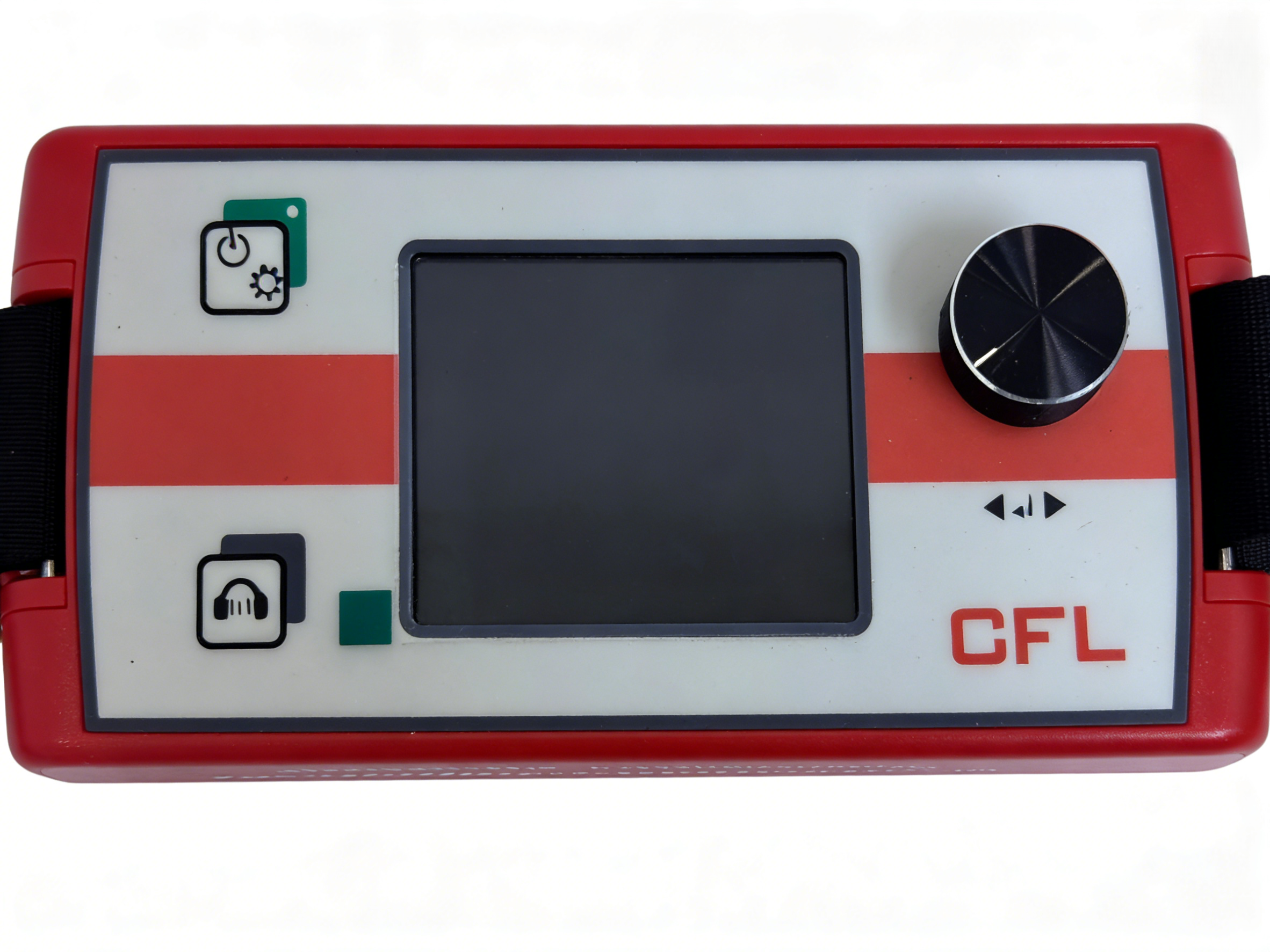

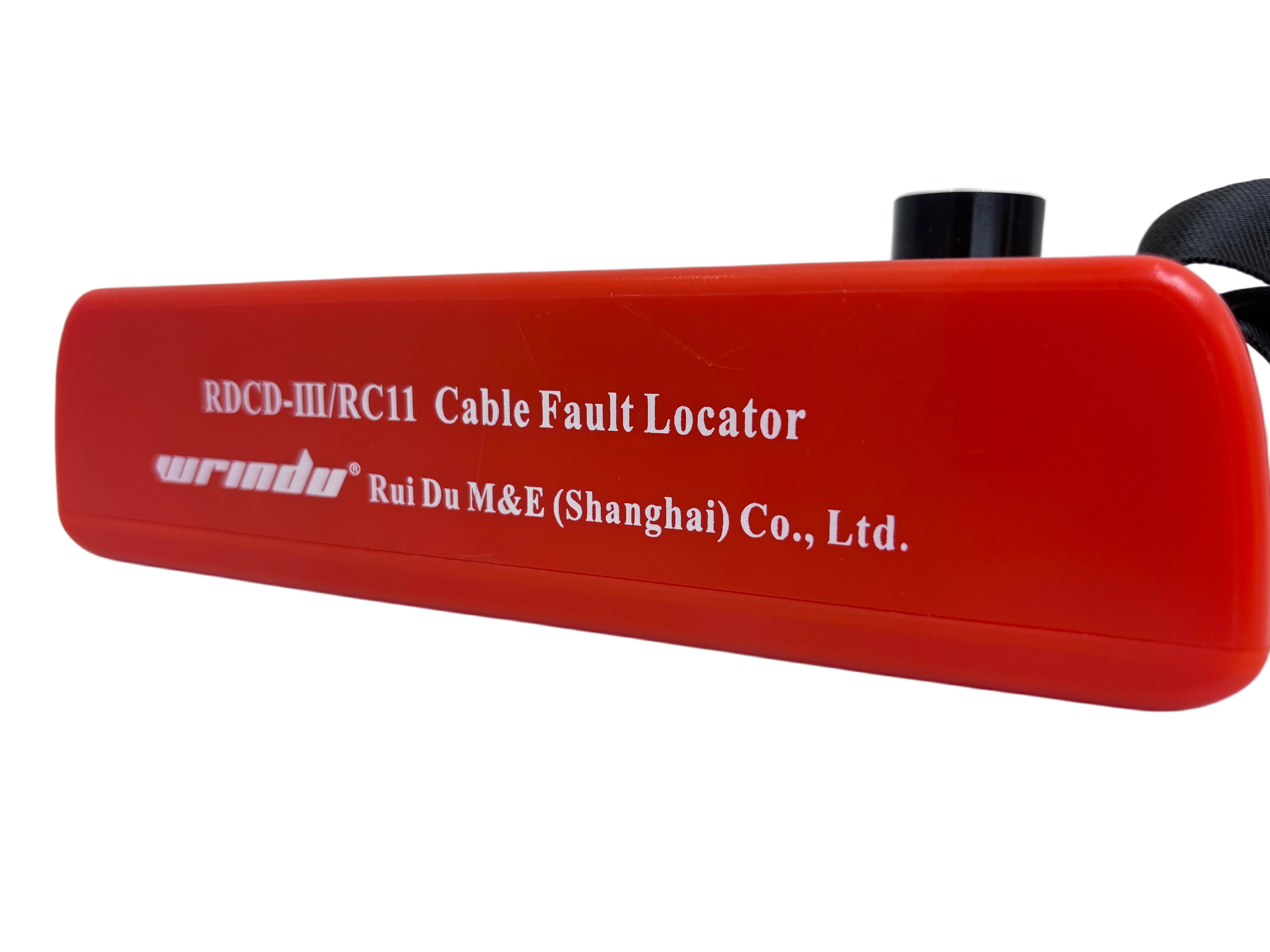

RDCD-Ⅲ/RC11 Cable Fault Locator
- Wrindu
- Shanghai, China
- about 10 working days
- 1000 set/month
- RDCD-Ⅲ/RC11

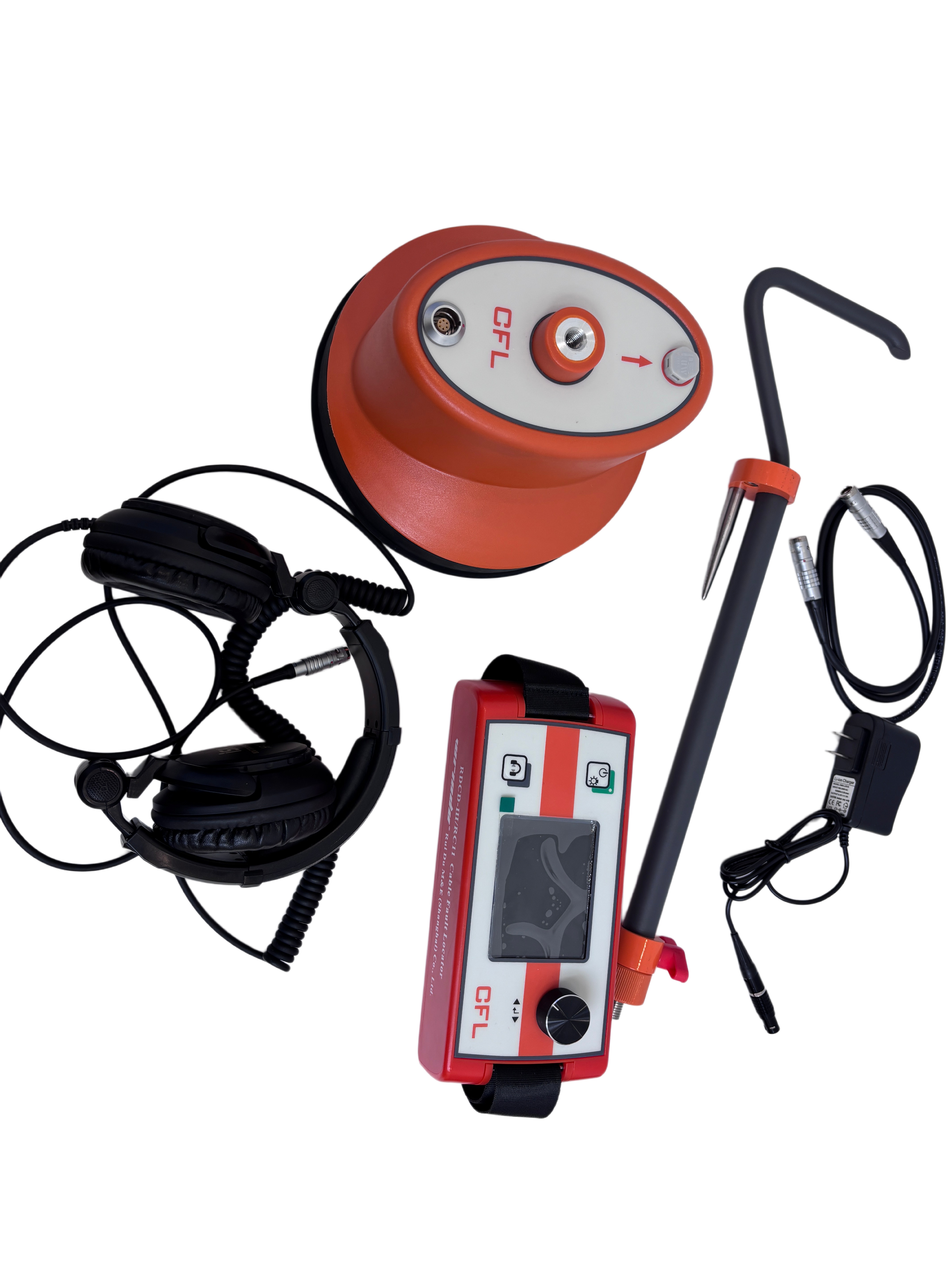

RDCD-Ⅲ/RC11 Cable Fault Locator is portable ultra-quiet visual locator with path indication, adopts intelligent noise reduction and acoustic-magnetic time-difference tech, and works with HV impulse generators to accurately pinpoint power cable faults efficiently.
Product Features

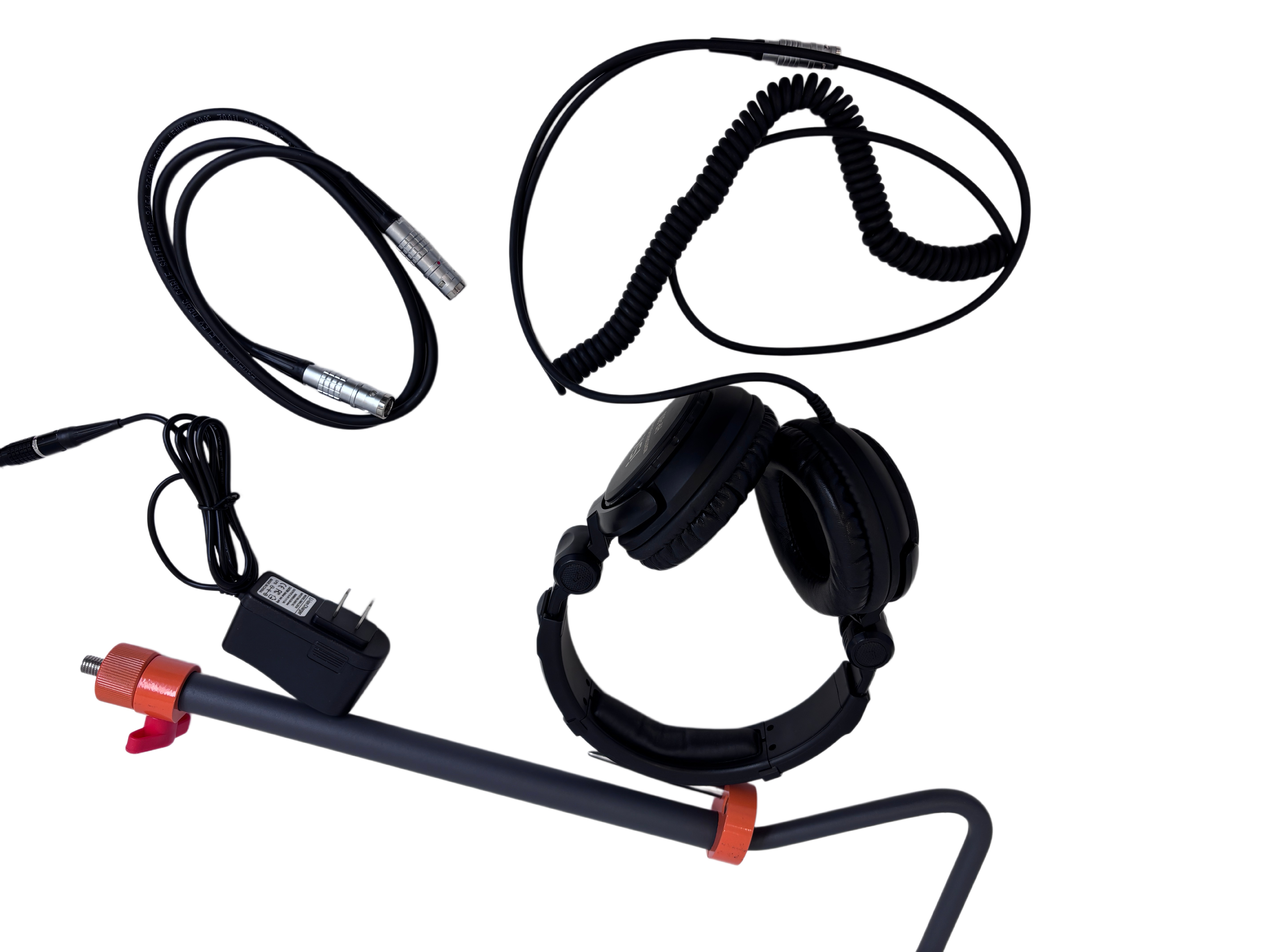

l Exceptional discharge sound quality with quieter background, using monitoring headphones for fast and reliable fault point localization.
l Selective recording of magnetic field signals for higher localization accuracy, with fully automatic triggering threshold settings for sound and magnetic field channels.
l Adopts ultra-quiet technology and BNR intelligent background noise reduction, enabling on/off control of the impact discharge volume upper limit.
l The black arrow on the receiver automatically indicates the advancing direction during precision localization, prompting return when passing the fault point.
l The yellow arrow on the receiver simultaneously indicates the relative left/right position of the fault cable's central axis, ensuring the probe stays directly above the cable.
l Determines the precise fault location by comparing time differences between two consecutive impact discharge sounds.

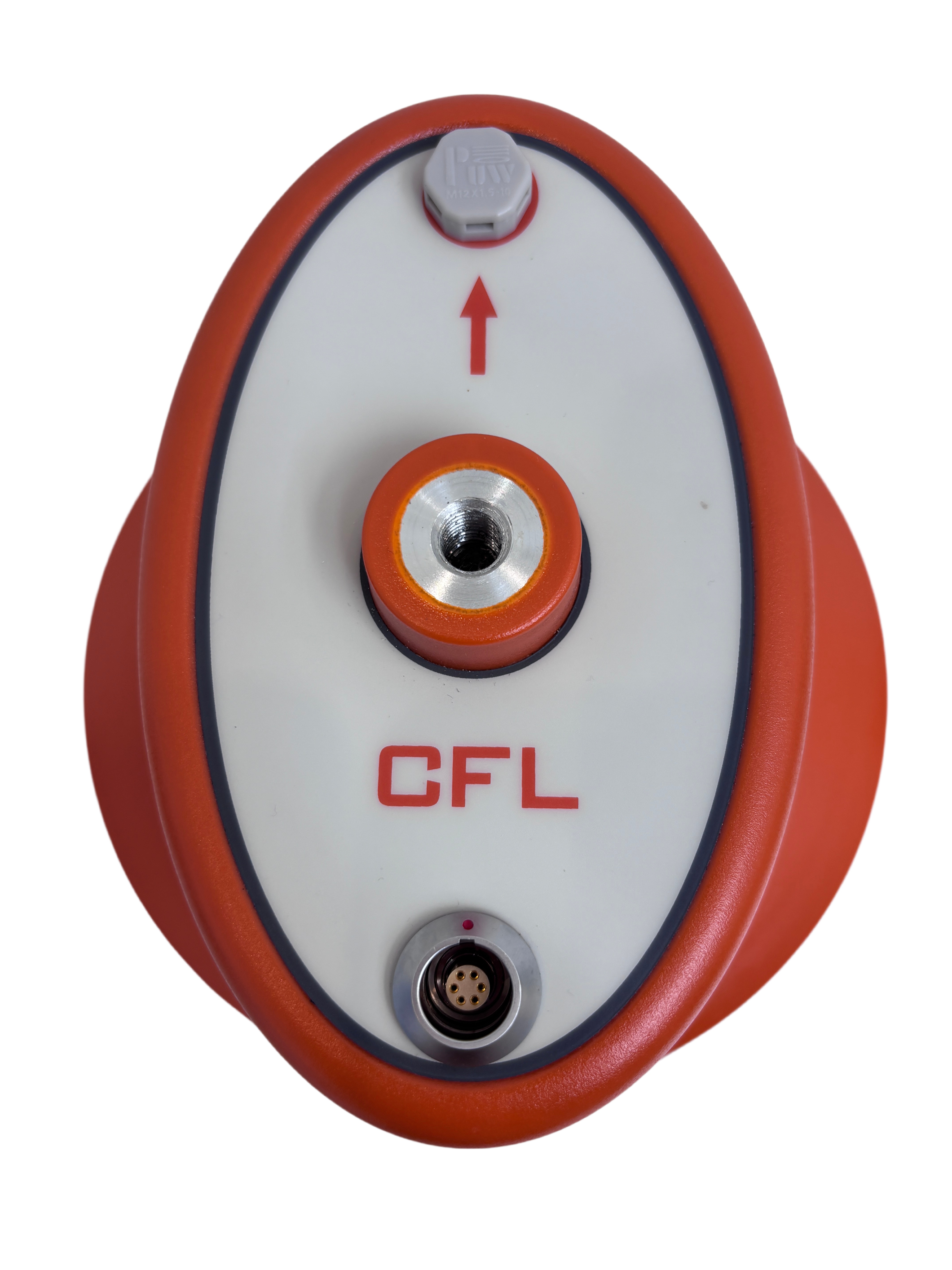

l Molded design of a special self-falling ground sensor, equipped with sensing adapters for soft pavement, hardened pavement, and lawns.

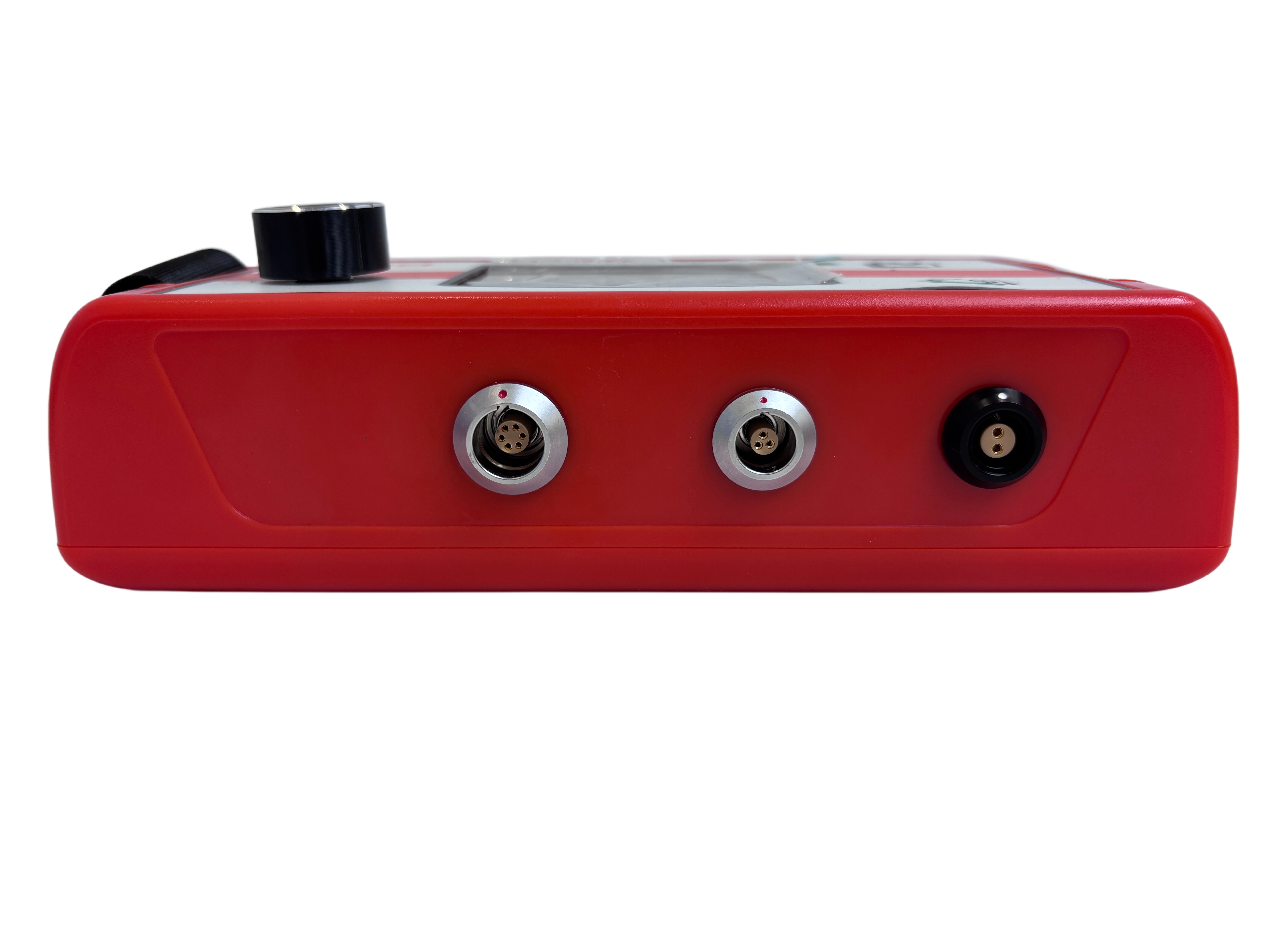

l Uses reliable imported connectors to ensure sound purity, with a humanized adjustable probe handle for versatile applications.
Technical Parameters
(1) Sensor dynamic range: Sound channel >104dB, Magnetic field channel >110dB
Sensor frequency range: 100Hz–1500Hz
(2) Impact discharge sound amplification: >90dB, Impact discharge volume upper limit: 84dB(A) (on/off switchable)
(3) Filter settings: No filter (100Hz–1500Hz)
(4) Low-pass filter: 100Hz–400Hz; Band-pass filter: 150Hz–600Hz; High-pass filter: 200Hz–1500Hz
(5) LCD display: High-brightness true color screen (320×240 pixels), suitable for outdoor use.
(6) On-site continuous working time: Alkaline replaceable batteries for convenient field operation.
