Circuit Breaker Full-Auto Temperature Rise Test System
- Wrindu
- Shanghai, China
- about 15 working days
- 1000 set/month
- RDTR-CB-7000A
This temperature rise test device is mainly composed of a fully automatic temperature rise test system, a flow-up transformer, an induction voltage regulator, and a temperature control inspection system.
Product Description
The RDTR-CB-7000A Fully Automatic Temperature Rise Test Device is designed for high-current temperature rise testing of electrical equipment. The system consists of an automatic temperature rise testing unit, a step-up transformer, an induction voltage regulator, and a temperature monitoring system.
It is an essential testing solution for applications requiring large current output during electrical commissioning and inspection. The device is widely used for temperature rise tests of high-voltage switches, bus ducts, and other electrical products in power plants, substations, switchgear manufacturers, electrical equipment factories, research institutes, and laboratories. It supports short-time and intermittent operating conditions.
For more High Voltage test equipment, please click on the HV test equipment list.
If your company has procurement needs, please click to contact us, we are always ready to provide you with quotes and solutions.
Product Features
1. Zero-Voltage Start Protection – The system is equipped with a zero-start protection function to improve operational safety.
2. Adjustable Test Time Setting – Users can set the test duration according to requirements, and the device provides automatic reminders after completion.
3. Automatic Current Deviation Adjustment – After the target current is set, the system can automatically correct current deviations to maintain stable output.
4. Accurate Data Display – The computer software displays supply voltage and output current values with a measurement accuracy of 0.5.
5. Electric Voltage Control System – The device controls voltage increase and decrease electrically to regulate output current, with selectable control accuracy options.
6. Intelligent Automatic Control – Equipped with an industrial-grade computer control system, the device performs automatic testing without manual operation.
7. Real-Time Power Monitoring – The system displays input voltage values and active power data during testing.
8. Automatic Current Stability Control – After setting temperature rise parameters, the device automatically maintains the required output current and adjusts current errors when necessary.
Technical Principle of Temperature Rise Testing
Temperature rise testing is an important method to evaluate the thermal performance and current-carrying capability of electrical equipment. By applying a high current to the test object and monitoring temperature changes, engineers can verify whether the equipment meets operating requirements under rated or specified conditions.
The RDTR-CB-7000A uses a high-current output system and multi-channel temperature monitoring technology to measure temperature changes of electrical components accurately during testing.
Applications of Temperature Rise Test System
The RDTR-CB-7000A is suitable for temperature rise testing of High-voltage switchgear, Circuit breakers, Bus ducts, Electrical connectors, Current-carrying components and Other high-current electrical equipment. It is widely used in power plants, substations, switchgear manufacturers, electrical laboratories, and research institutions.
Product Specification and Technical Parameters
1. System Parameters
| Parameter | Specification |
|---|---|
| Rated Voltage | 380 V |
| Rated Frequency | 50 Hz |
| Wire System | Three-phase four-wire insulation system |
| Total System Power | 210 kW |
| Total System Current | 552.6 A |
| Power Factor | cosΦ = 0.8 |
| Compensation Device | Included |
2. Oil-Immersed Induction Voltage Regulator
| Parameter | Specification |
|---|---|
| Rated Capacity | 70 kVA |
| Output Voltage Range | 0–420 V adjustable |
| Output Current Range | 0–166.6 A adjustable |
| Voltage Regulation Mode | Electric / Manual |
| Waveform Distortion | ≤ 3% |
| Starting Voltage | ≤ 1% |
| Short Circuit Impedance | ≤ 7% (50%–100% voltage regulation range) |
| Power Loss | < 1% |
| Efficiency | > 98% |
3. Dry-Type Converter Transformer
| Parameter | Specification |
|---|---|
| Rated Capacity | 70 kVA |
| Input Voltage | 380 V |
| Output Voltage | 10 V |
| Output Current | 0–7000 A |
| Rated Output Current | 7000 A |
| Short Circuit Impedance | ≤ 5% (0–7000 A) |
| Output Mode | Independent phase output |
| Cooling Method | Dry-type air cooling |
| Operation Mode | Long-term operation at rated voltage and current |
4. Automatic Control Console
| Parameter | Specification |
|---|---|
| Control System | Industrial computer automatic control |
| Test Mode | Fully automatic operation without manual intervention |
| Current Control | Automatic current adjustment and error correction |
| Display Accuracy | Power supply and output current accuracy: Class 0.5 |
| Voltage Control | Electric voltage rise and fall control |
| Test Time Setting | Adjustable test duration with reminder function |
| Safety Function | Zero-start protection |
| Power Monitoring | Real-time input voltage and active power display |
| Temperature Monitoring | 40-channel temperature measurement and recording |
| Temperature Accuracy | ±1% |
| Alarm Function | Automatic alarm when temperature exceeds the set value |
| Current Transformer Accuracy | Class 0.5 |
| Cabinet Structure | 2 mm cold-rolled steel plate with anti-rust treatment |

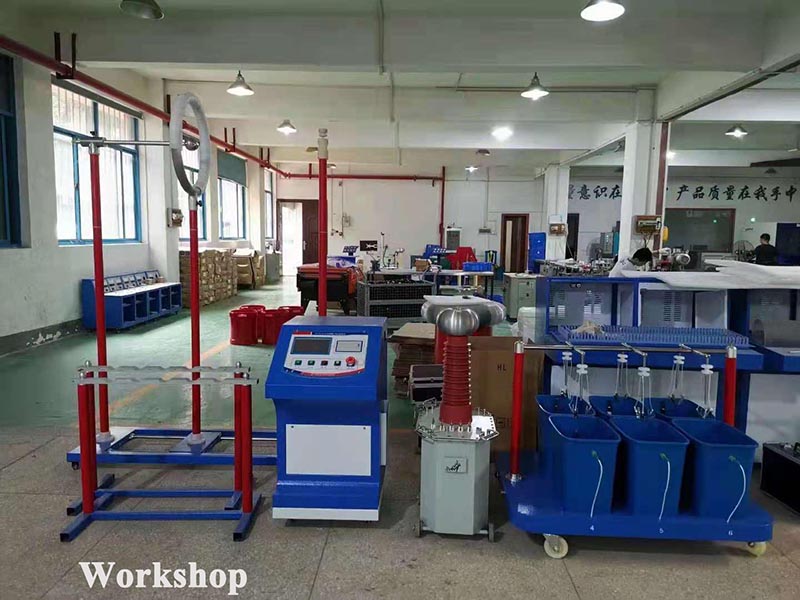

Wrindu OEM Manufacturing Capability
Wrindu is a professional OEM manufacturer of power testing equipment, providing high-current test systems and customized electrical testing solutions.
With experience in high-voltage and high-current testing technology, Wrindu supports customers with:
Customized testing solutions
Technical guidance
Equipment operation training
After-sales support
Spare parts and maintenance service
Wrindu temperature rise test equipment is designed to help customers perform reliable electrical testing for inspection, commissioning, and quality control.
| Wrindu Service | Wrindu Description |
|---|---|
| Technical Support | Provides testing guidance and operation assistance. |
| Product Training | Helps users understand equipment operation and testing procedures. |
| Remote Assistance | Supports troubleshooting and technical communication. |
| Warranty Service | Provides 1 year warranty support according to product conditions. |
| Spare Parts Supply | Supplies original spare parts for maintenance needs. |
