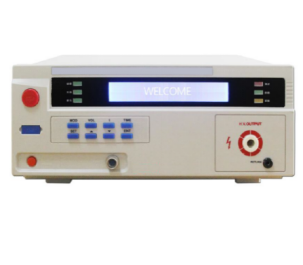

RDZ5261R Programmable Insulation Withstand Voltage Tester
- Wrindu
- Shanghai, China
- about 25 days
- 5000 set/month
- RDZ5261R
The RDZ5261R programmable insulation withstand voltage tester is designed for electrical strength testing. It gradually increases voltage according to a set time gradient, providing accurate and reliable results.
This tester features 4 memory modes and has RS232 and PLC interfaces. It can quickly test breakdown voltage, leakage current, and other electrical safety indicators, making it ideal for both safety testing and component performance testing.
Product Features
1. This tester uses a microprocessor as the core, and the test channel captures the parameter changes of the electrical appliance under test during the test process in real time.
2. The tester uses a backlit LCD display with soft light, high clarity, and little impact from ambient light.
3. Character menu, concise and easy to understand.
4. Display test results in full screen, with test condition memory function.
Product Specification and Technical Parameters
1. Test output voltage:
AC: 0 ~ 5.00 kV ( can be set) Accuracy: ± 3% ± 3 dgt @ 0.5 ~ 5.00 kV
DC: 0 ~ 6.00 kV (can be set) Accuracy: ± 3% ± 3 dgt @ 0.5 ~ 6.00 kV
2. Test current:
AC: 0 ~ 20 mA (can be set) Accuracy: ± 3% ± 3 dgt @ 0.2 ~ 20 mA
DC: 0 ~ 10 mA (can be set) Accuracy: ± 3% ± 3 dgt @ 0.2 ~ 10 mA
3. Timing: 1～999 s (can be set) Accuracy: ± 3% ± 1 second
4. Insulation resistance test:
Test voltage: 250V/500V/1000V Accuracy: ± 3%
Measuring range: 1 ~ 10000 MΩ Accuracy: ±5%
Alarm resistance : 1 ~ 10000 MΩ (can be set)
5. Output power : AC 100VA , DC 60VA
6. Power supply: AC220V ± 10 % , 50Hz/60Hz
7. Safety protection functions: a. Short circuit shutdown and alarm. b. Out of tolerance alarm.
8. Memory function:
The tester can save commonly used withstand voltage or insulation test modes, and can freely combine the order of these two test modes.
9. Interface: RS232, PLC
