RDYDG-5kVA/50kV AC /DC Withstand Voltage Test Device
- Wrindu
- Shanghai, China
- about 10 working days
- 2000 set/month
- RDYDG-5kVA/50kV
RDYDG-5kVA/50kV AC/DC Withstand Voltage Test Device is a compact and easy-to-use high voltage testing instrument. It is suitable for insulation testing of high voltage equipment, electrical components, and insulation materials in power systems, industries, and research laboratories.
The operating table works with the high voltage test transformer to perform AC withstand voltage and leakage current tests, providing safe and reliable testing control.
Product Features
1. The dry test transformer features a compact design, maintenance-free operation, and eco-friendly performance.
2. Small size, lightweight, simple wiring, and easy operation.
3. Reliable insulation performance with a modern appearance.
Product Specifications and Technical Paramters

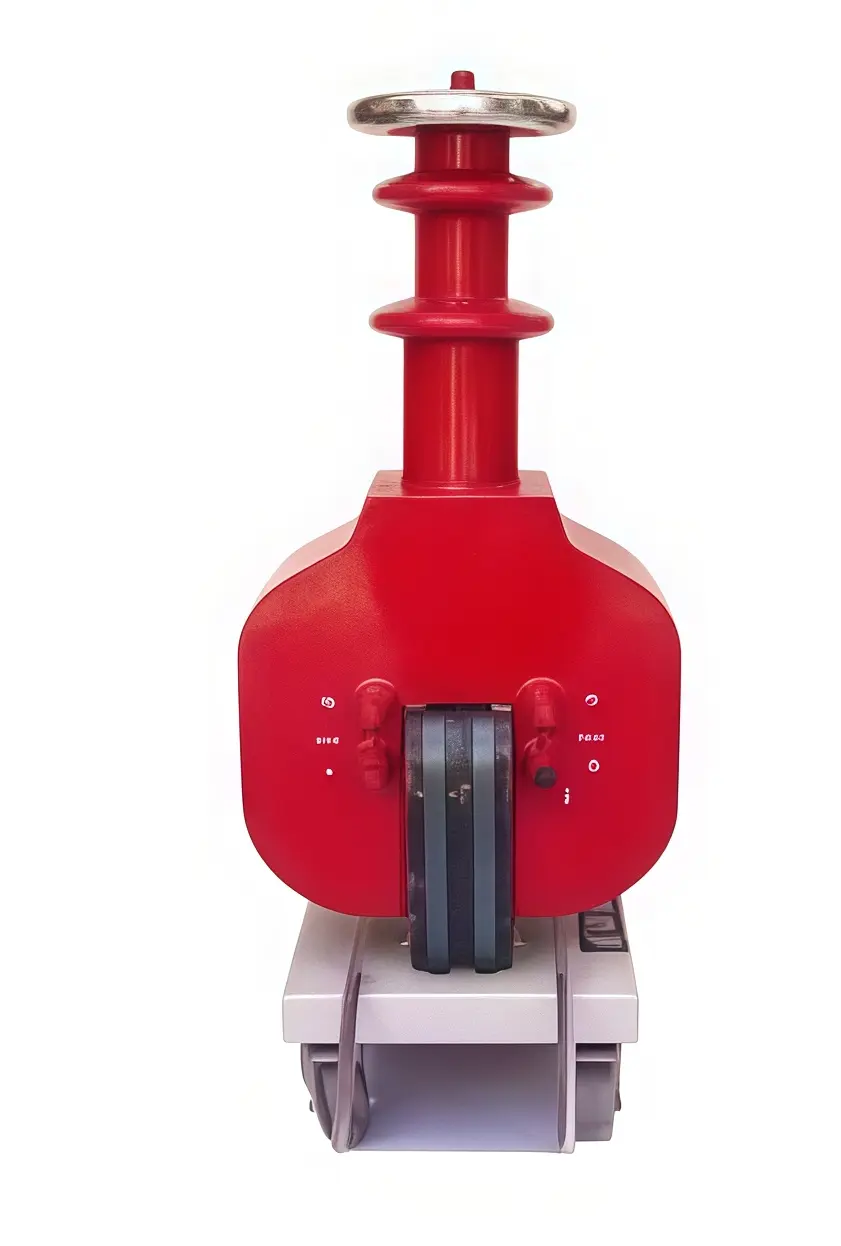

Dry-type Test Transformer | ||
Capacity（kVA） | 5 | |
Output voltage (kV) | 50（AC） | 70(DC) |
Output current (mA) | 100mA | |
Input voltage (V) | 200 | |
Input current (A) | 25 | |

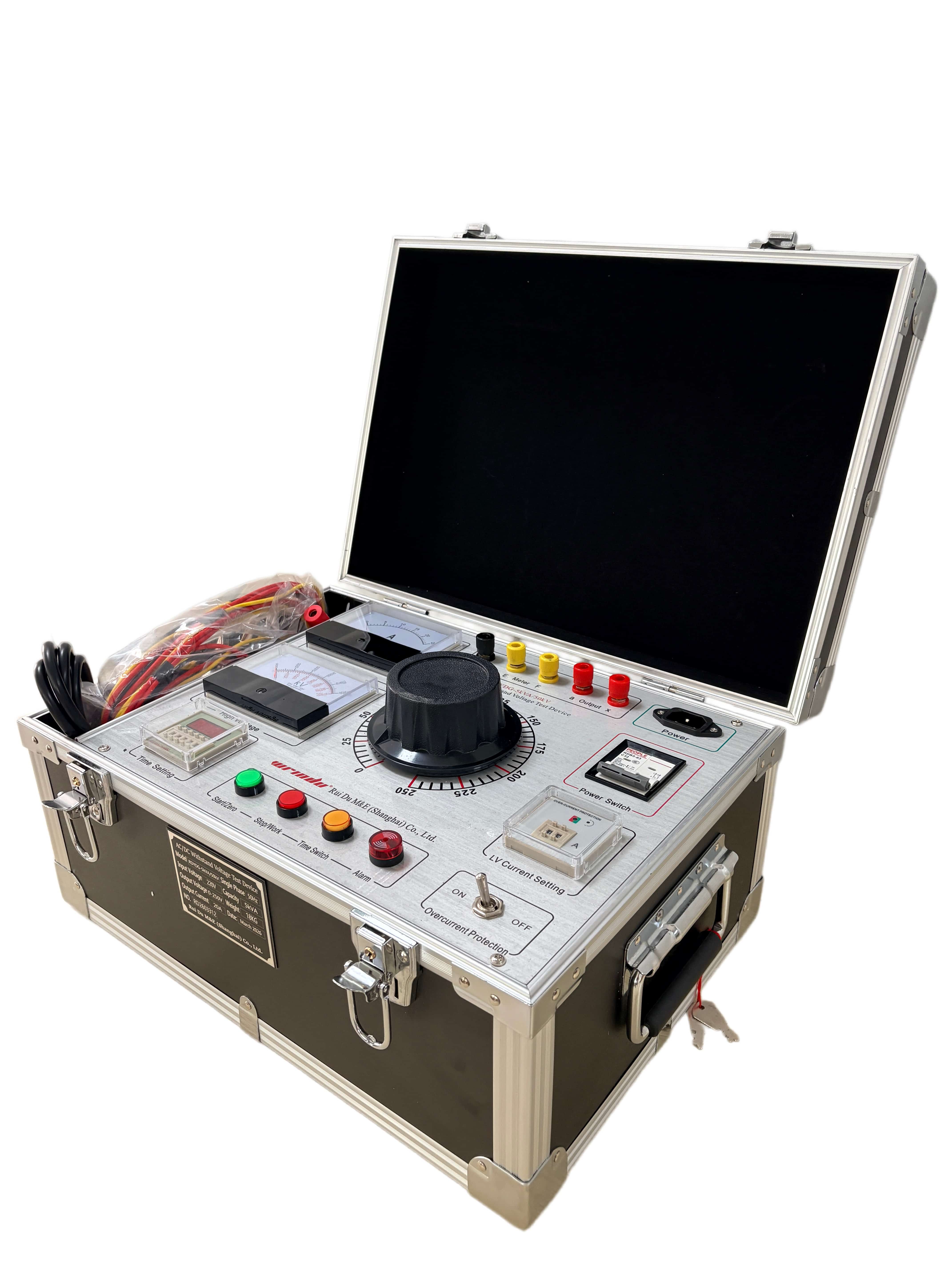

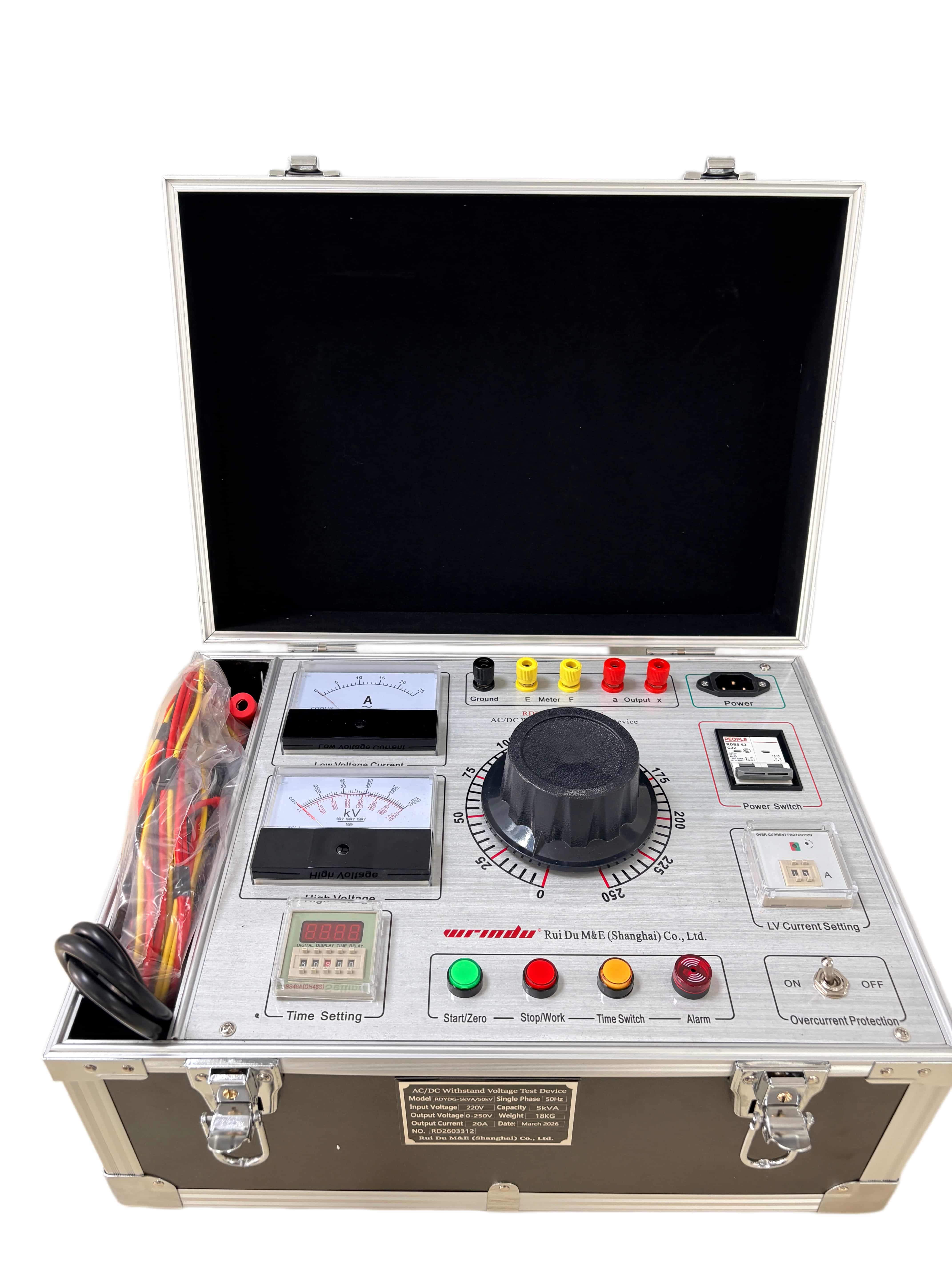

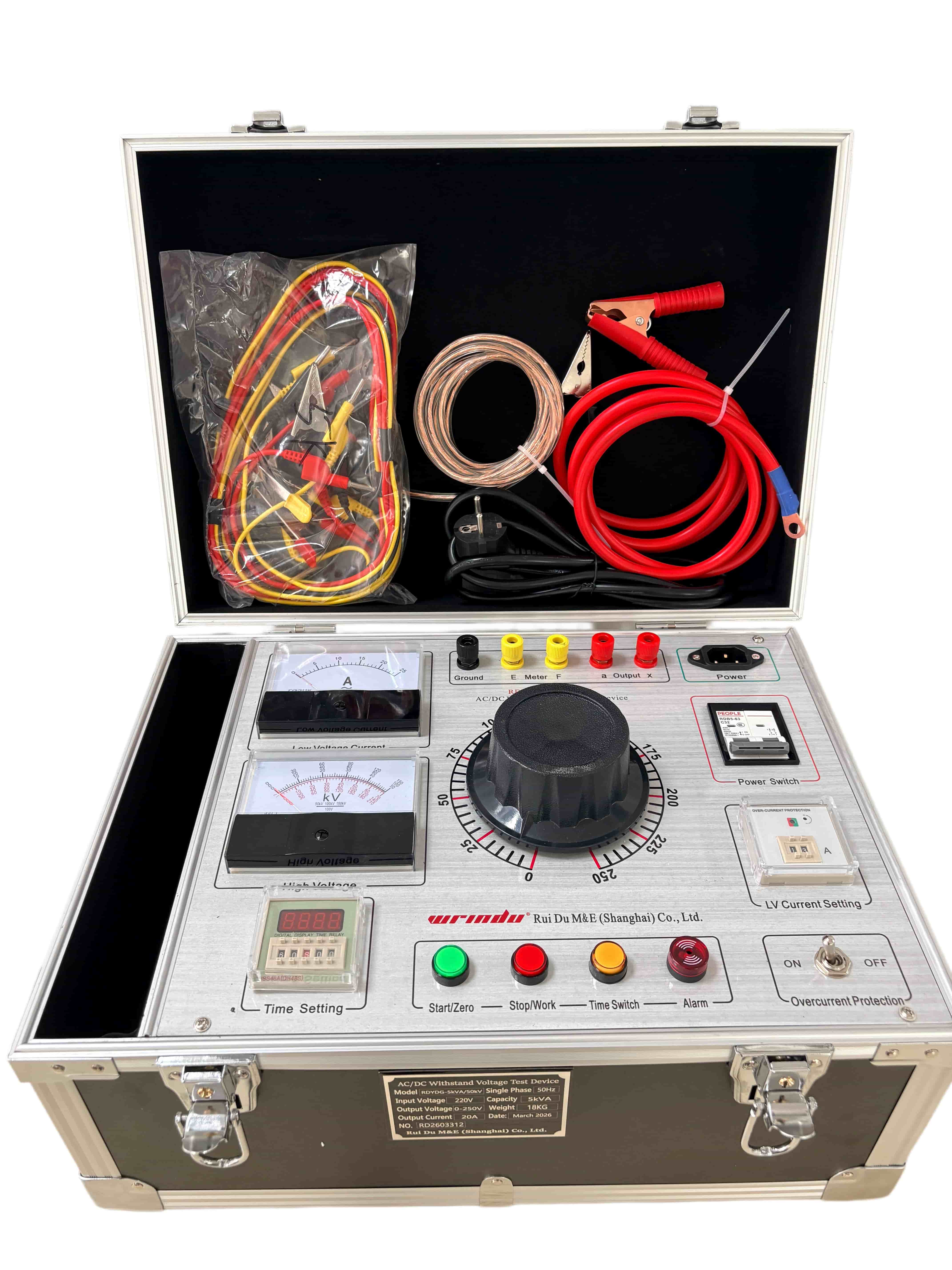

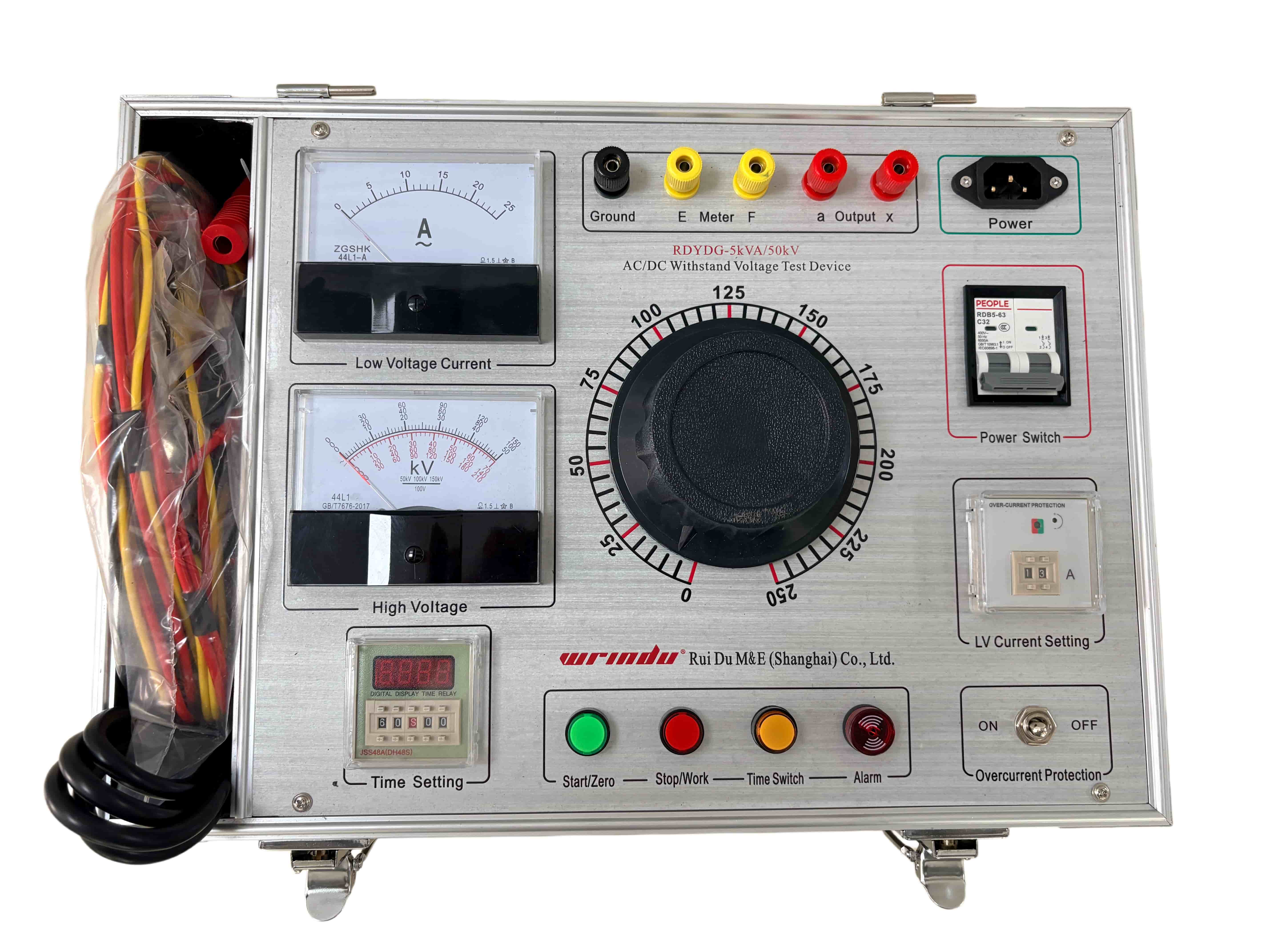

Manual Console | ||
Capacity（kVA） | 5 | |
Input voltage (V) | 200 | |
Input current (A) | 25 | |
Output voltage (V) | 0-250V | |
Output current (A) | 20A | |
Operating mode | Manual | |
FAQs
What is the output voltage and capacity of the RDYDG-5kVA/50kV AC/DC Withstand Voltage Test Device?
A: The RDYDG-5kVA/50kV AC/DC Withstand Voltage Test Device has a rated capacity of 5 kVA. It provides 50 kV AC output voltage and 70 kV DC output voltage, with an output current of 100 mA for high voltage insulation testing.
What types of equipment can be tested by the RDYDG-5kVA/50kV withstand voltage tester?
A: The RDYDG-5kVA/50kV withstand voltage tester is designed for insulation strength testing of high voltage electrical equipment, electrical components, and insulation materials. It is suitable for applications in power systems, industrial facilities, and research laboratories.
What are the main features of the RDYDG-5kVA/50kV dry-type test transformer?
A: The dry-type test transformer features a compact structure, maintenance-free design, and environmentally friendly operation. It also provides reliable insulation performance, small size, lightweight construction, and convenient operation.
What is the input power requirement of the RDYDG-5kVA/50kV test transformer?
A: The dry-type test transformer requires an input voltage of 200 V and an input current of 25 A to provide stable high voltage testing performance.
Does the RDYDG-5kVA/50kV test device include a control console?
A: Yes. The system includes a manual console with a 5 kVA capacity. The console uses a 200 V input voltage, provides 0–250 V adjustable output voltage, and supports up to 20 A output current for test control.
Is the RDYDG-5kVA/50kV AC/DC test transformer easy to operate?
A: Yes. The equipment features simple wiring, clear operation, and a lightweight design, making it convenient for engineers to perform AC withstand voltage and leakage current tests.
What is the operating mode of the RDYDG-5kVA/50kV control console?
A: The control console operates in manual mode, allowing operators to adjust test parameters and complete withstand voltage testing safely and effectively.
Why choose a dry-type test transformer instead of an oil-type transformer?
A: The dry-type test transformer provides advantages such as a compact structure, no oil maintenance requirement, environmental protection, and reliable insulation performance, making it suitable for various high voltage testing environments.
