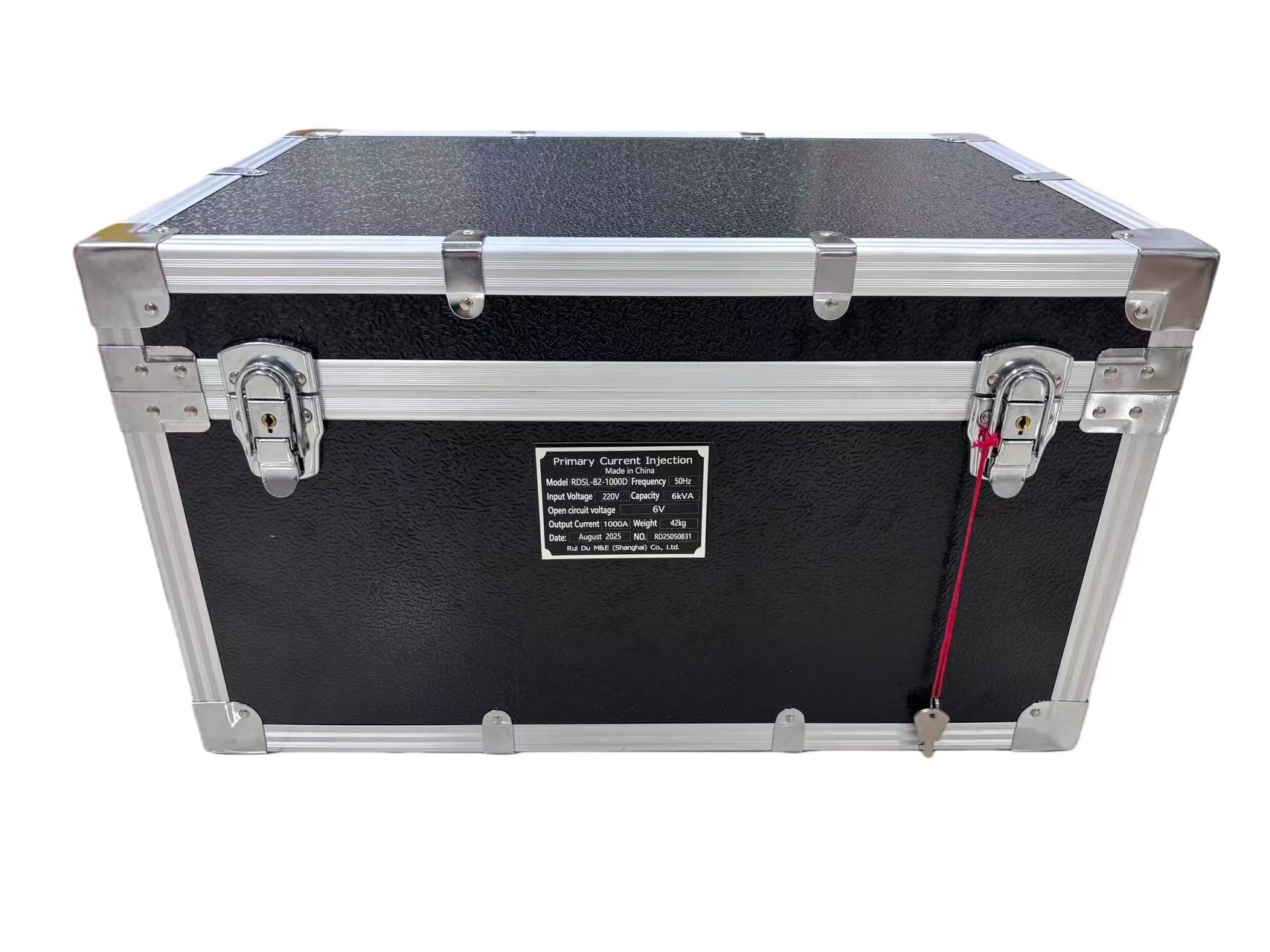

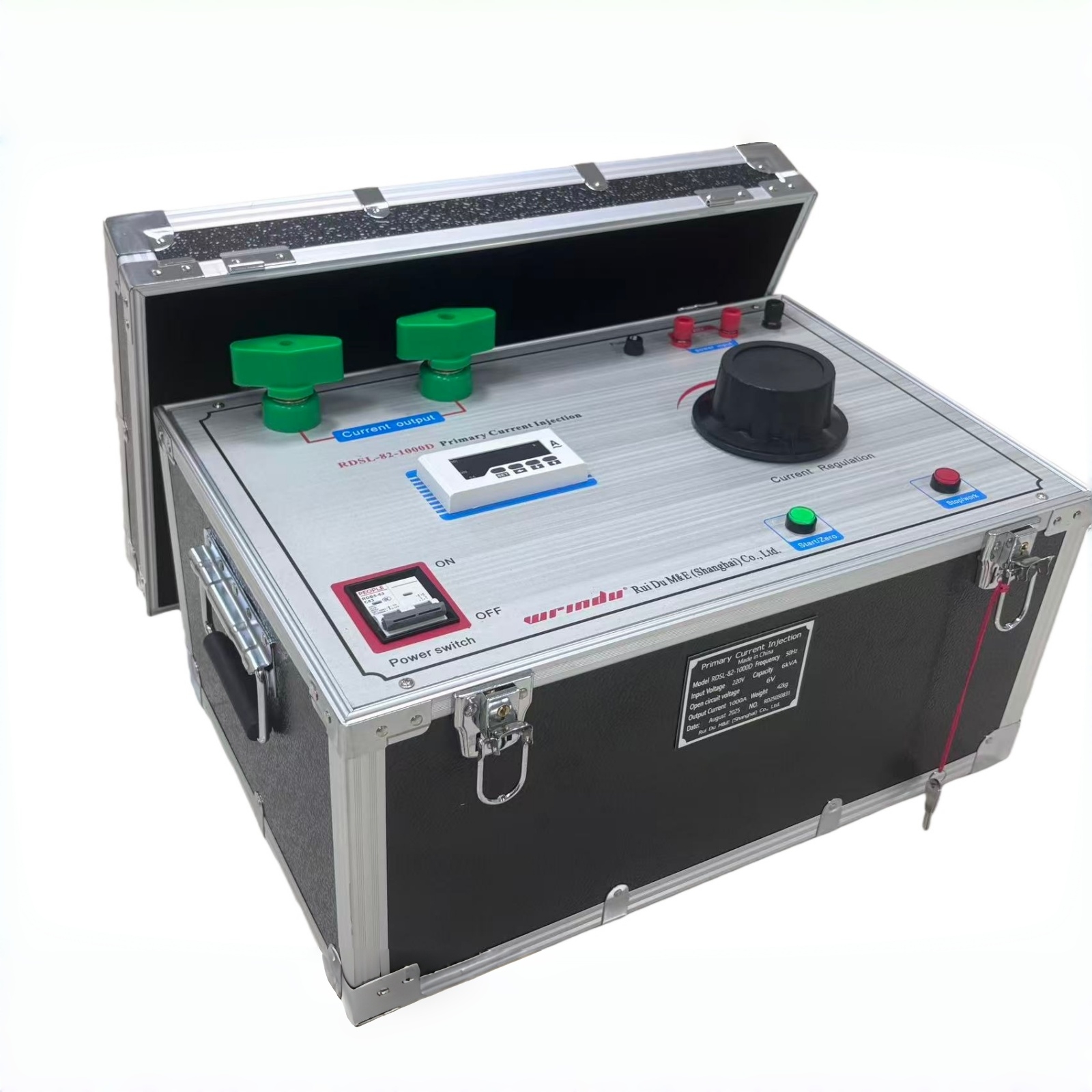

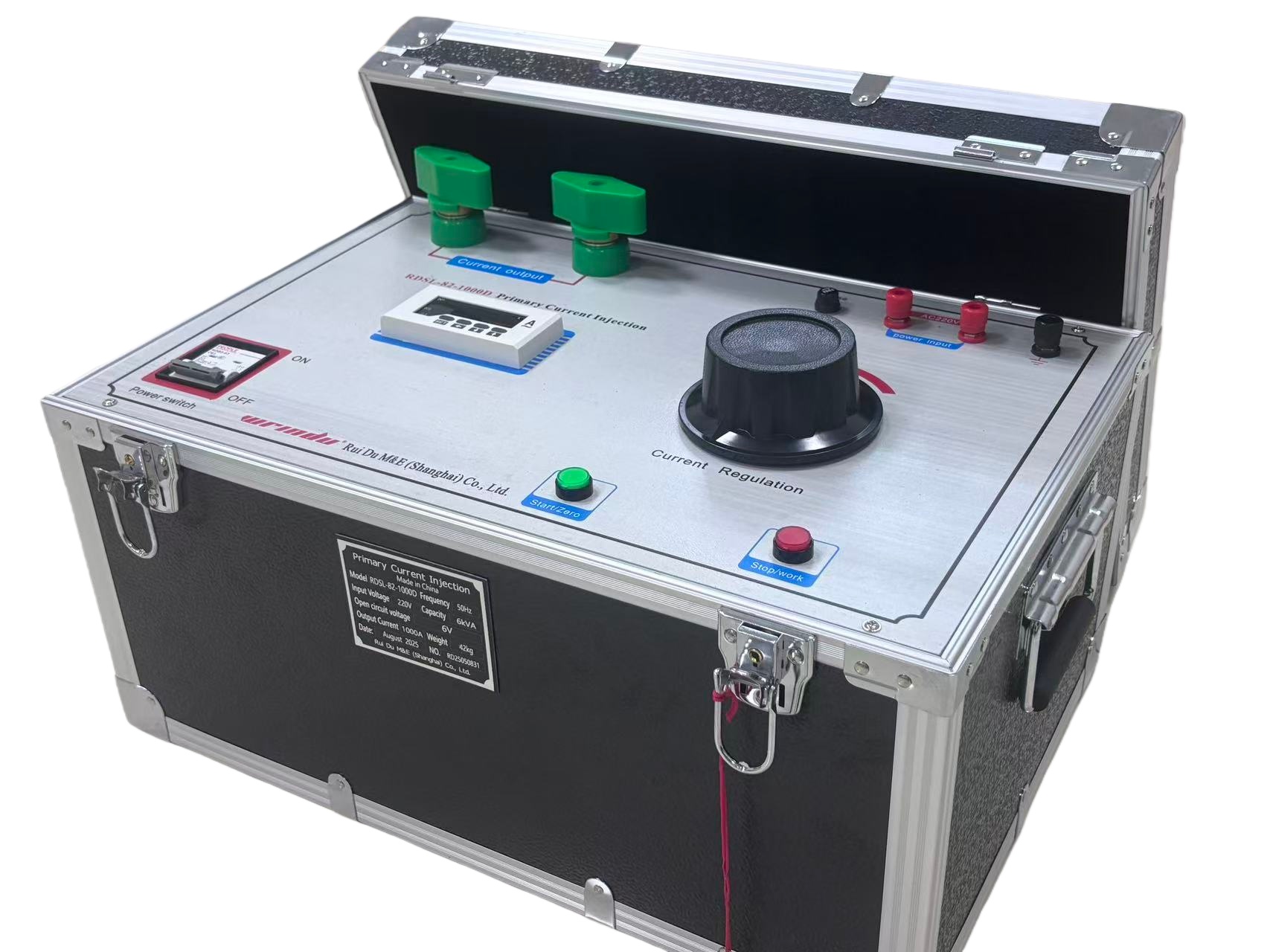

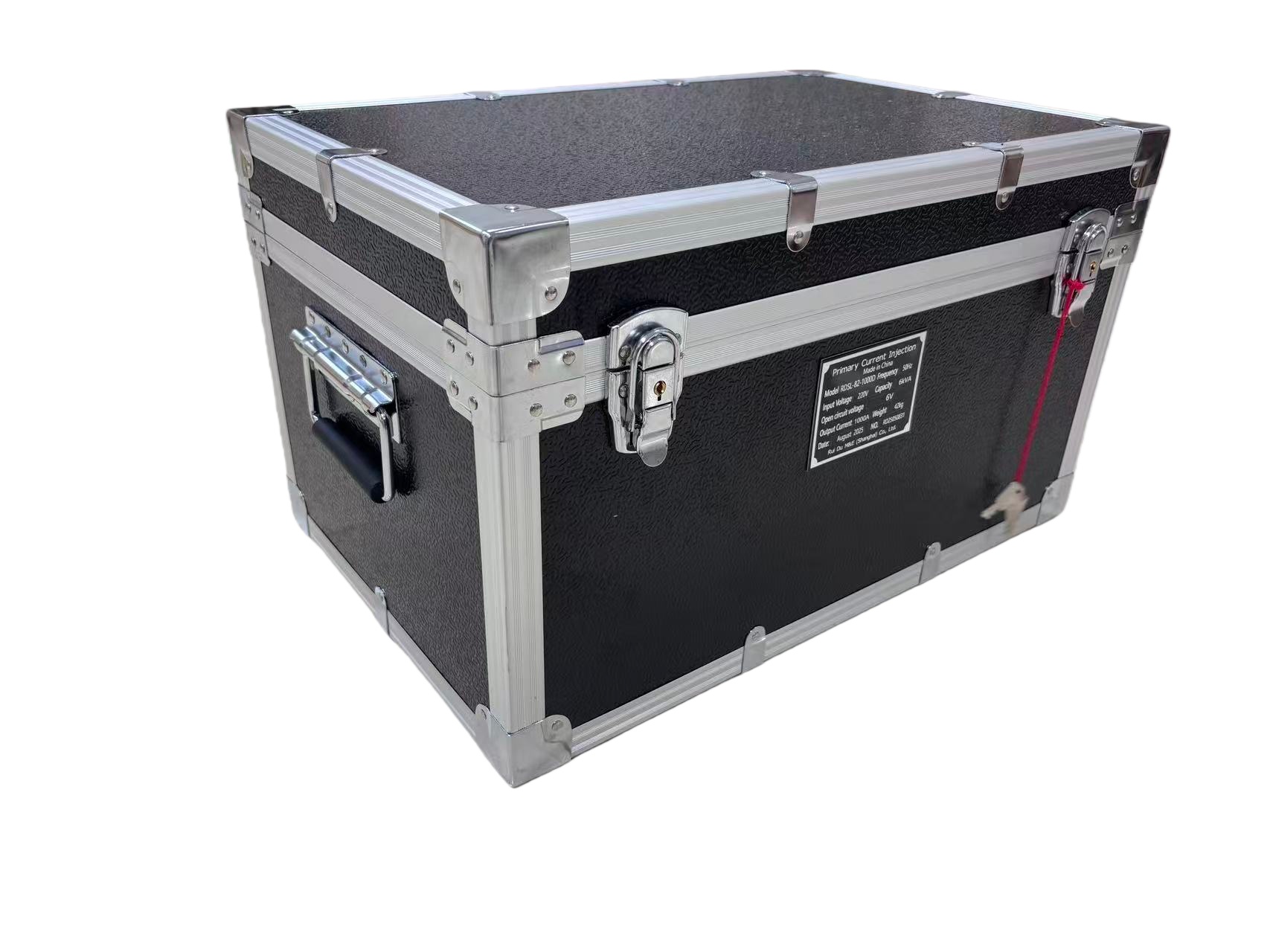

RDSL-82 1000A Primary Current Injector | High Current Injection Test Equipment
- Wrindu
- Shanghai, China
- about 10 working days
- 1000 set/month
- RDSL-82-1000D
The RDSL-82 Series Primary Current Injector is an essential testing device for electrical commissioning and debugging in various industries. It is widely used in power plants, power transmission and distribution stations, electrical equipment manufacturers, research institutes, laboratories, and other related fields.
Designed for short-time or intermittent operation, the RDSL-82 Series features a compact size, lightweight design, reliable performance, and easy operation and maintenance. It provides a convenient and efficient solution for primary current testing applications.
Product Features

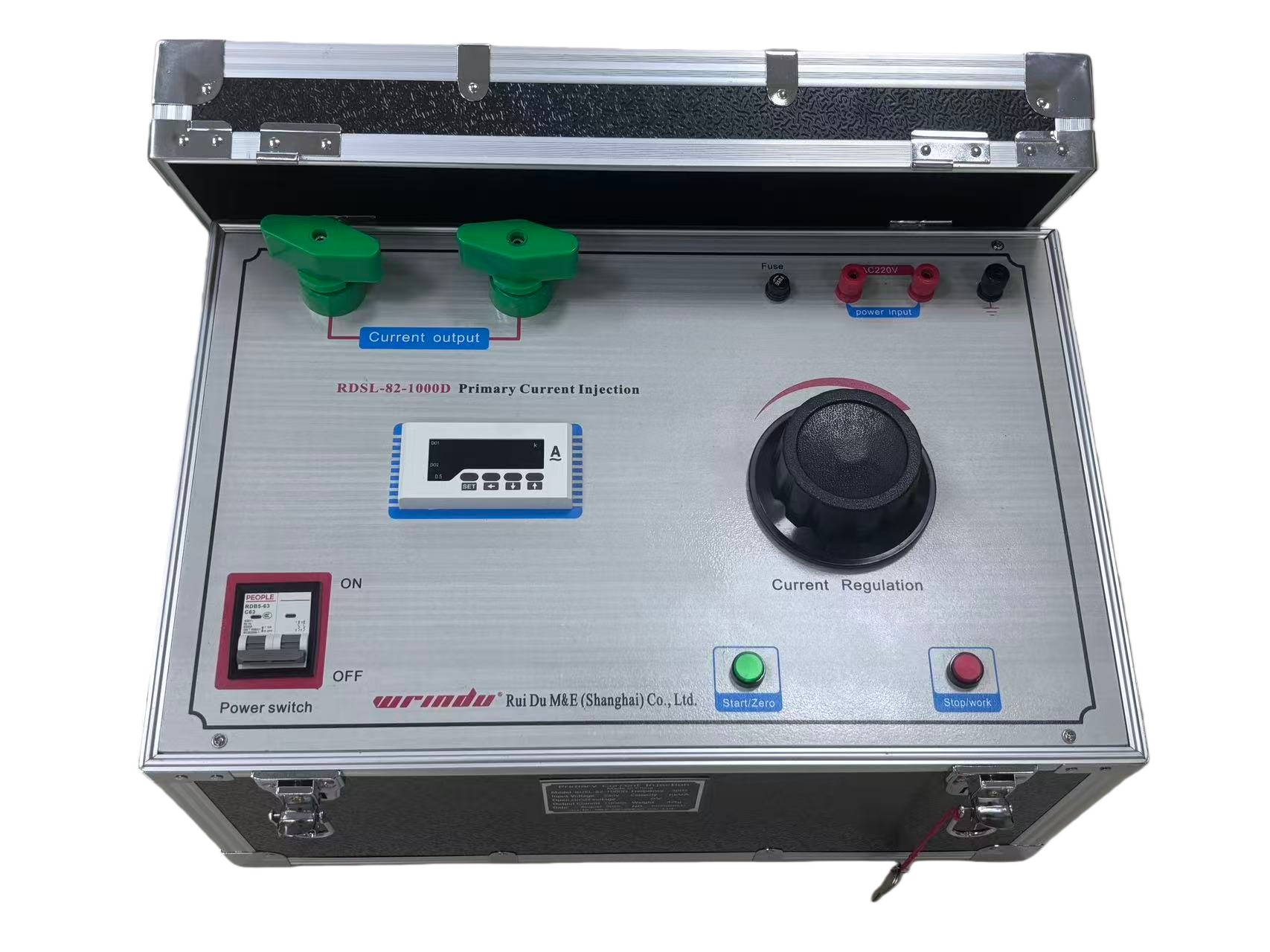

1. Equipped with a clear LED digital display, it provides accurate and easy-to-read current measurement results.
2. Features a high-current adjustment knob for smooth and convenient output current regulation.
3. Provides up to 1000A AC output current, suitable for primary current injection testing and electrical commissioning.
4. Designed with a small size and lightweight structure, making it easy to transport, install, and operate.
5. Offers stable operation with simple maintenance requirements, suitable for power plants, substations, laboratories, and electrical equipment manufacturers.
6. Designed for short-time working conditions, ensuring safe and efficient performance during high-current testing applications.
Product Specifications and Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Input Power Supply | AC 220V, 27.3A, 50Hz |
| Output Current | AC 0 - 1000A |
| Output Voltage | AC 0 - 6V |
| Output Current Waveform Distortion | ≤ 5% |
| Current Measurement Range | 0 - 1000A (LED digital display) |
| Operating Environment | Temperature: -10°C to 40°C; Relative Humidity: < 80% |
| Dimensions | 450 × 350 × 200 mm³ |
| Weight | 42 kg |
| Working Mode | Short-time operation (5 minutes) |
| Intermittent Operation Requirement | Power-on time ≤ 2.5 minutes; Working cycle > 10 minutes |
FAQs
Q1: What is the RDSL-82 Series Primary Current Injector used for?
The RDSL-82 Series Primary Current Injector is mainly used for electrical commissioning, testing, and debugging applications. It is suitable for power plants, substations, electrical equipment manufacturers, research institutes, and laboratories.
Q2: What is the maximum output current of the RDSL-82 Primary Current Injector?
The RDSL-82 Series can provide an adjustable AC output current from 0 to 1000A, with an output voltage range of 0 to 6V, making it suitable for high-current testing applications.
Q3: What are the main features of the RDSL-82 Primary Current Injector?
The RDSL-82 features an LED digital ammeter display, a high-current adjustment knob, compact design, lightweight structure, reliable performance, and easy operation and maintenance.
Q4: Can the RDSL-82 be used for field testing?
Yes. With its compact size and portable design, the RDSL-82 Primary Current Injector is convenient for transportation and onsite testing, especially for electrical equipment commissioning and maintenance.
Q5: What is the measurement range of the RDSL-82 digital display ammeter?
The built-in LED digital ammeter provides a measurement range of 0 to 1000A, allowing users to monitor output current clearly during testing.
Q6: What power supply does the RDSL-82 Primary Current Injector require?
The RDSL-82 requires an AC 220V, 27.3A, 50Hz power supply for operation.
Q7: What is the operating environment of the RDSL-82 Current Injector?
The recommended operating environment is -10°C to 40°C temperature with a relative humidity below 80%, ensuring stable performance in different working conditions.
Q8: Is the RDSL-82 designed for continuous operation?
No. The RDSL-82 is designed for short-time or intermittent operation. Its capacity is based on a 5-minute short-time working system. For intermittent operation, the power-on time should be less than 2.5 minutes, with a working cycle longer than 10 minutes.
Q9: What applications can use the RDSL-82 Primary Current Injector?
The RDSL-82 is widely applied in:
Power plants
Power transmission and distribution stations
Electrical equipment manufacturers
Electrical testing laboratories
Scientific research institutions
Q10: Why choose the RDSL-82 Series Primary Current Injector?
The RDSL-82 provides a reliable solution for primary current testing with high output capability, accurate current measurement, simple operation, and convenient maintenance. It is an ideal choice for electrical testing and commissioning applications.
