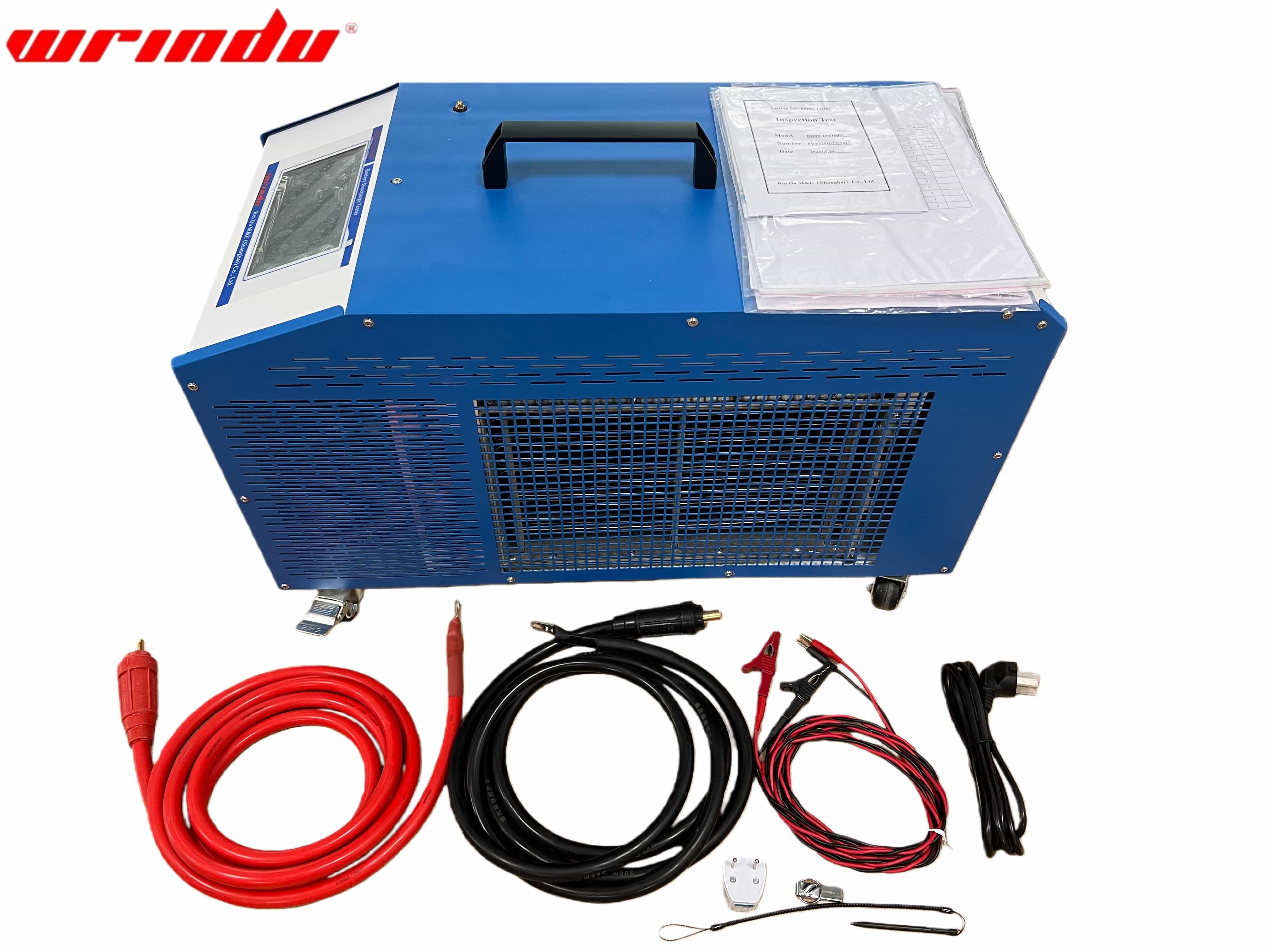

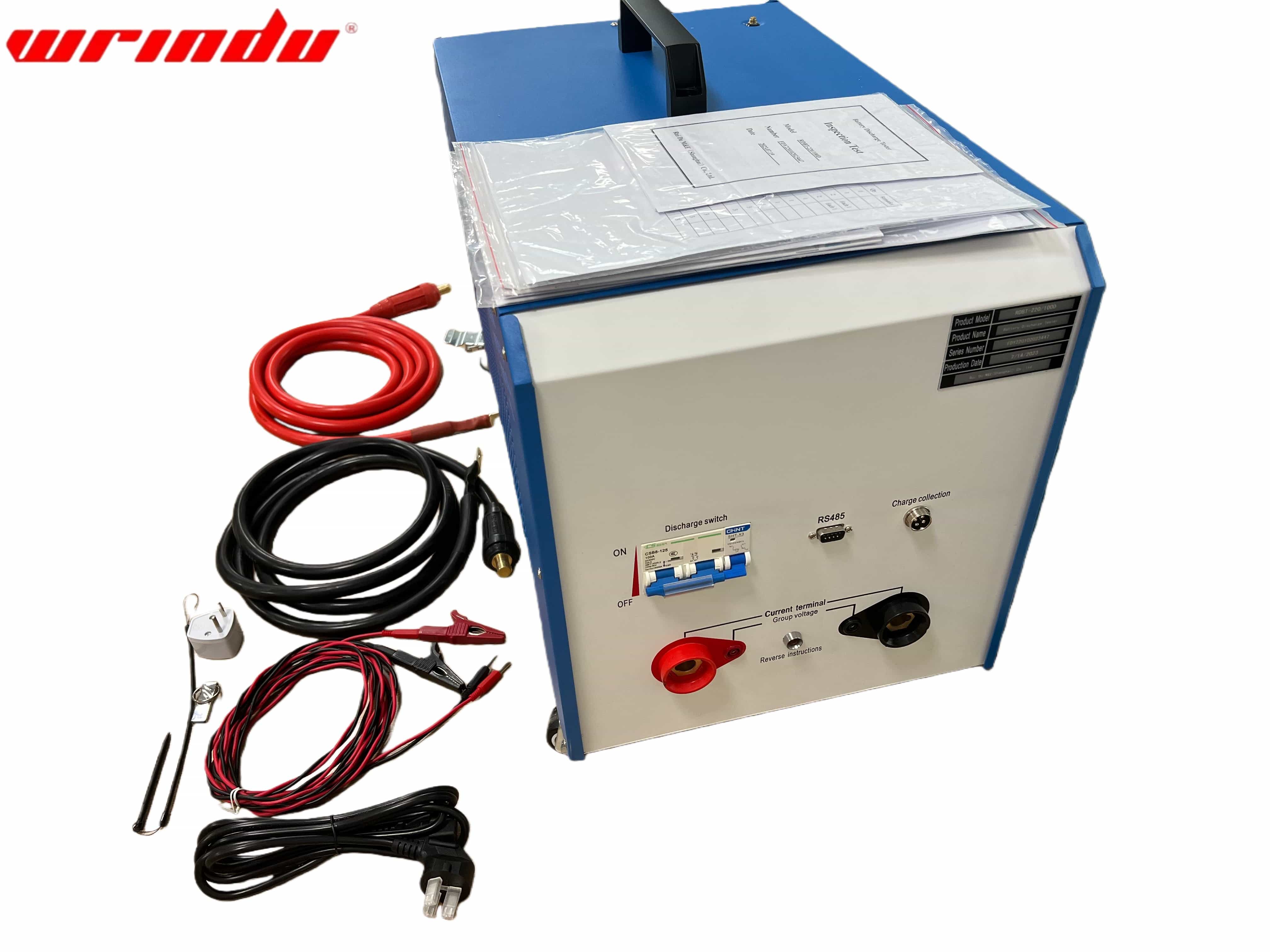

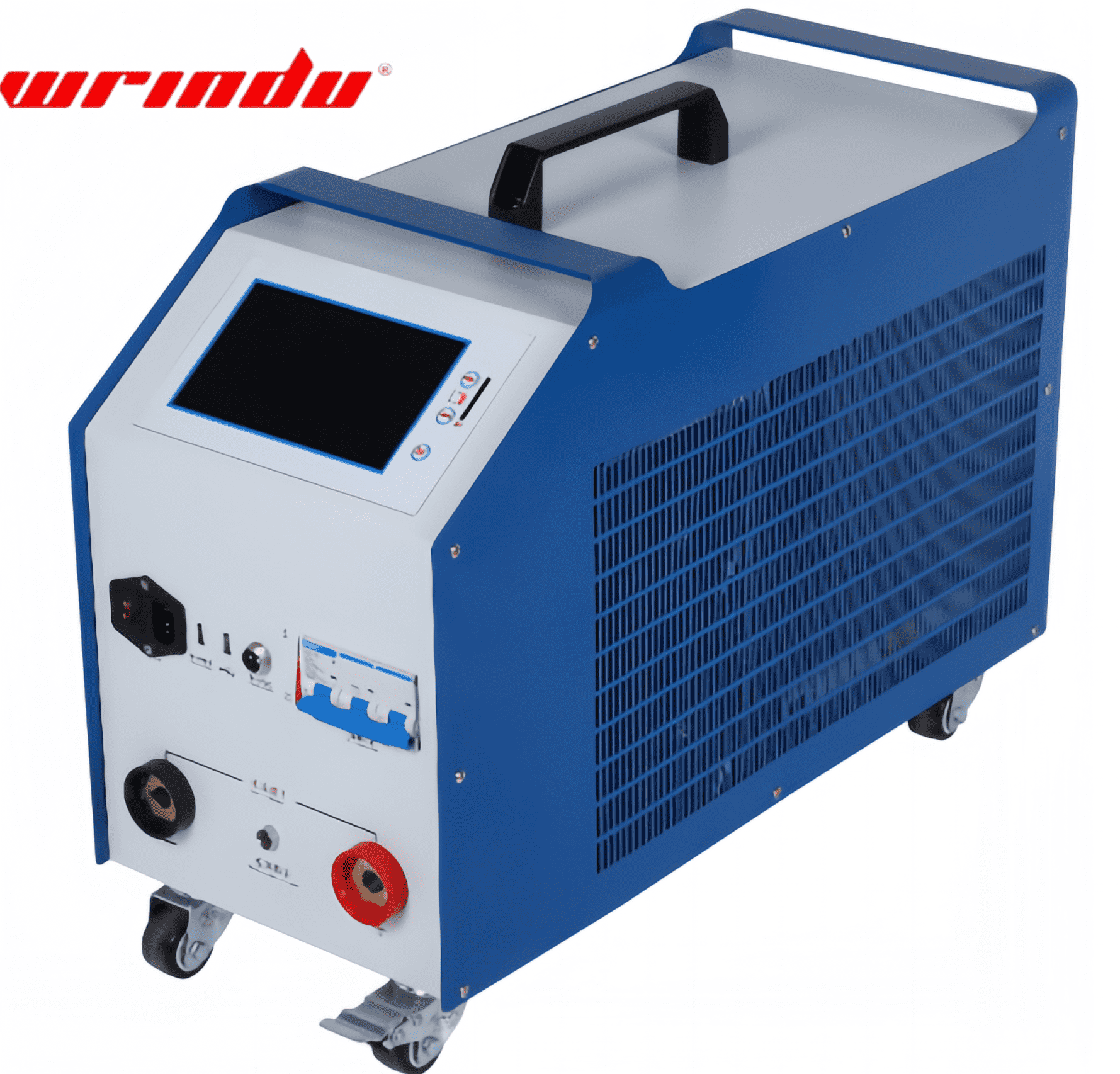

RDBT-D Serial Battery Load Bank

- Wrindu
- Shanghai, China
- about 10 working days
- 5000 set/month
- RDBT-D
The RDBT-D Series Battery Load Bank is designed for industries such as power plants and telecom, which can provide high-precision discharge testing to guarantee reliable backup battery performance during power failures. Featuring a 7-inch touchscreen, it displays real-time battery parameters and offers selectable discharge modes, including constant current and constant power. With four adjustable stop points and multiple alarm designs, it intelligently controls the discharge process for safe and efficient testing.
Additionally, the RDBT-D Series supports USB data download to PC software for capacity evaluation and report generation. It also offers optional wireless modules for real-time monitoring of 1.2V to 12V cell voltages, with each sensor capable of monitoring up to 24 cells at once, which can guarantee accurate battery performance analysis.
OVERVIEW
Batteries in power plants, transformer substations, telecom company and force communications must provide the equipment they serve with standby power in the event of a power failure. Unfortunately, the capacity of such batteries can drop significantly for a number of reasons before their calculated life expectancy is reached. This is why so important to check batteries regular intervals, and the only reliable way of measuring battery capacity is to conduct a discharge test.
CHARACTERISTIC

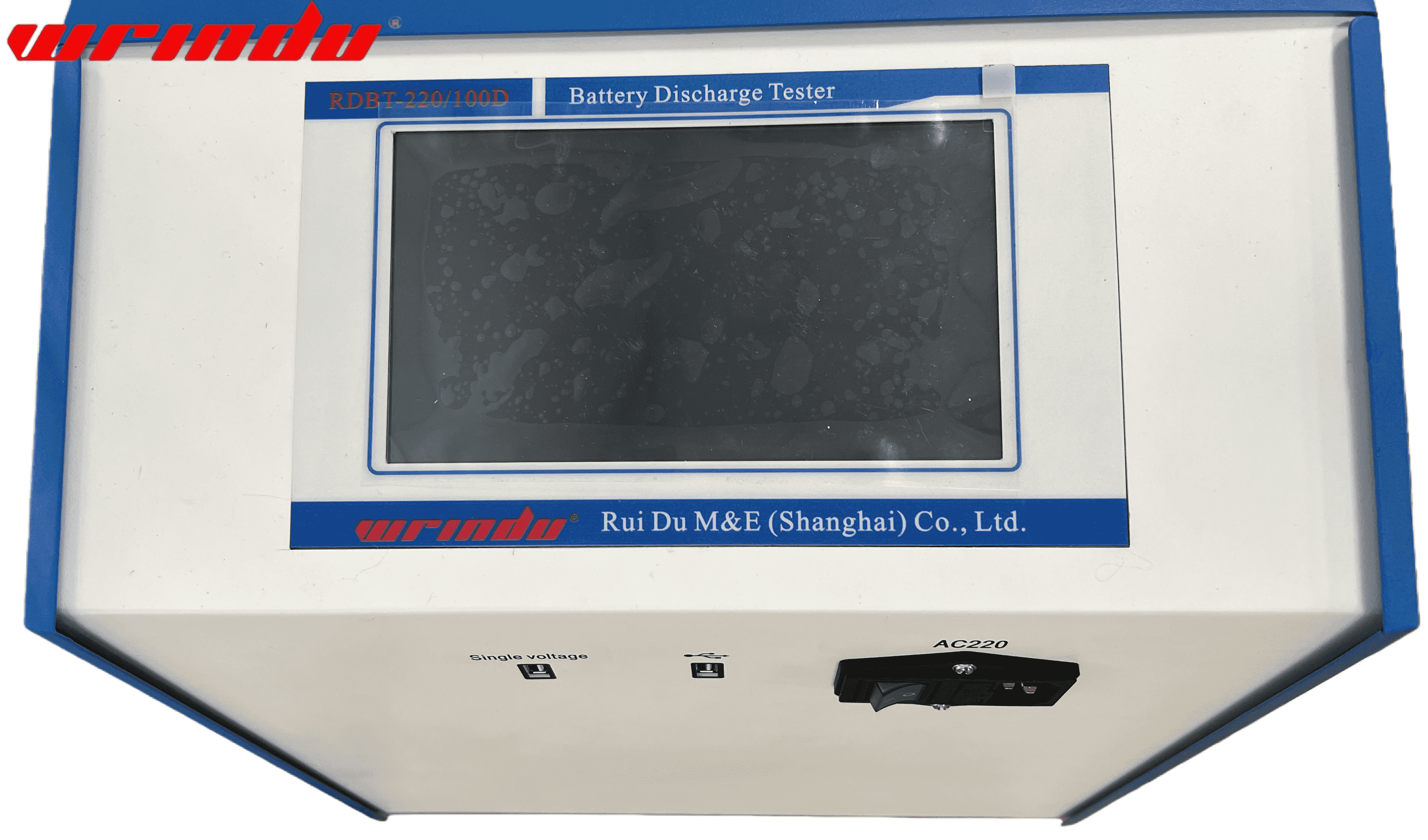

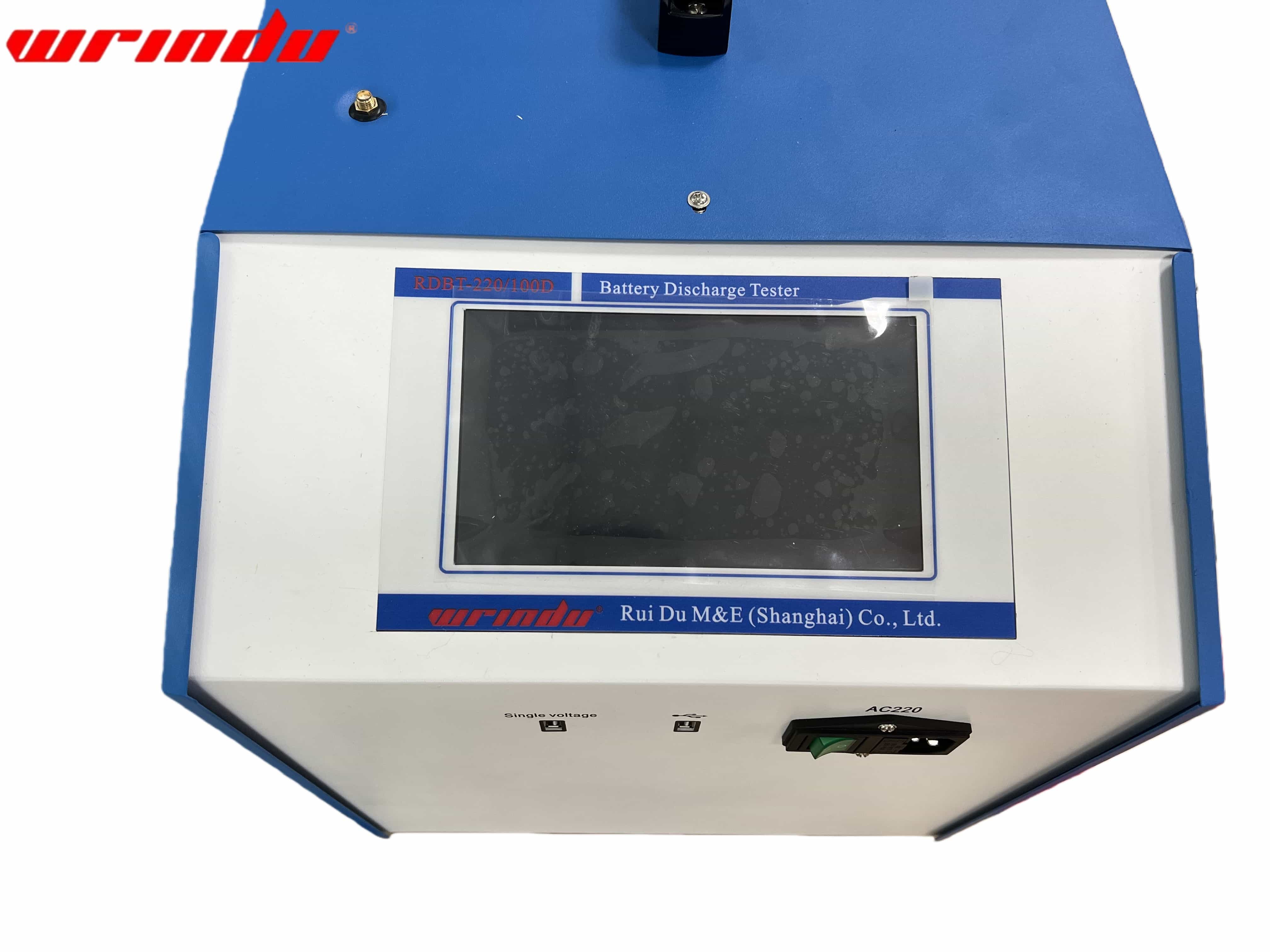

1. 7 inch LCD touch screen for easy operation and showing various parameters real time.
2. Selectable discharge mode: constant current /power.
3. 4 adjustable stop points and multiple alarm designs to control the discharge process intelligently.
4. USB download data to PC software for capacity evaluation and report generation.
5. Optional wireless modules for 1.2V/2V/6V/12V cells voltage real-time measuring, each sensor can monitor 24cells at one time.
SPECIFICATION
Model No. | RDBT-24/10D | RDBT-48/15D | RDBT-48/30D | RDBT-110/05D | RDBT-110/10D | RDBT-110/15D | RDBT-220/05D | RDBT-220/10D | RDBT-380/05D | RDBT-380/10D |
Output voltage | 24V | 48V | 48V | 110V | 110V | 110V | 220V | 220V | 380V | 380V |
Output current | 1-100A | 1-150A | 1-300A | 1-50A | 1-100A | 1-150A | 1-50A | 1-100A | 1-50A | 1-100A |
Discharge mode | CC , CP | |||||||||
Accuracy & resolution | ≤±0.5%, 0.01V | |||||||||
DC voltage measurement | ||||||||||
Internal current range | 2-300A | |||||||||
Accuracy & resolution | ≤± 1%; 0.1A | |||||||||
Cell voltage Range | 0-15V | |||||||||
Accuracy & resolution | ≤± 0.5%; 0.01 V | |||||||||
AC power supply | ||||||||||
Power Supply | AC 220V, 50Hz | |||||||||
Cooling mode | Air Cooling | |||||||||
Communication & storage | ||||||||||
Storage mode | SD card and internal storage | |||||||||
Internal memory | 16MB flash or optional | |||||||||
Display | 7 inch touch screen | |||||||||
High-Voltage insulation test | Input-The enclosure: 2200Vdc 1min | |||||||||
Input-Output: 2200Vdc 1min | ||||||||||
Output- The enclosure: 700Vdc 1min | ||||||||||
Safety standard | EN610950 | |||||||||
CE Certificate | LVD: EN61010-12010; EMC:EN61326-1:2013 | |||||||||
Environment | ||||||||||
Work temperature | -5~50℃ | |||||||||
Storage temperature | -40~70℃ | |||||||||
Humidity | 5%~95% RH | |||||||||
Altitude | Below 4000 m | |||||||||
Working noise | <60 dB | |||||||||
Dimensions of host machine | 55x25x44 mm | |||||||||
Net weight | 23 kg |
