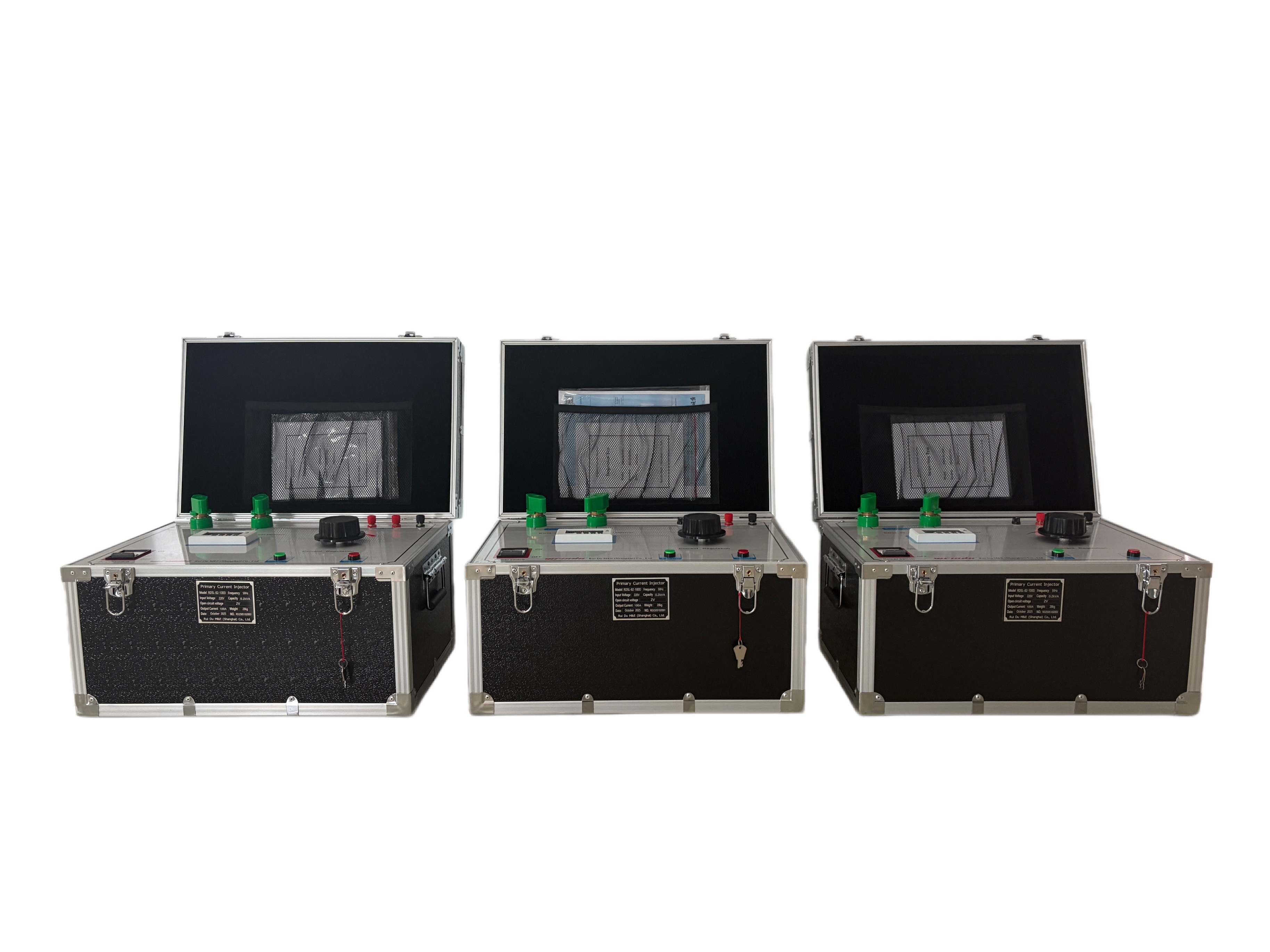

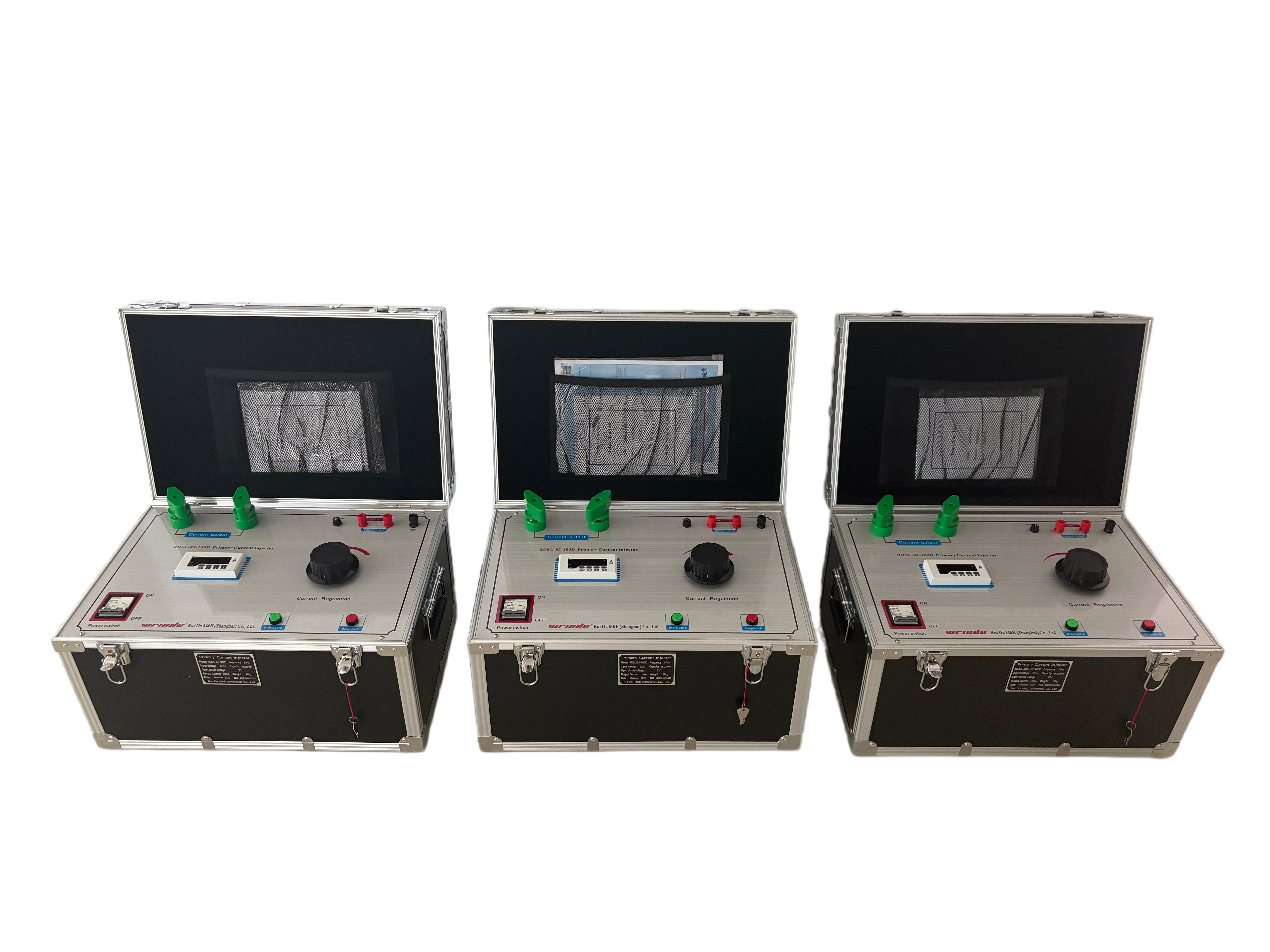

100A Primary Current Injection Test Set | RDSL-82-100D Electrical Tester
- Wrindu
- Shanghai, China
- about 10 working days
- 1000 set/month
- RDSL-82-100D
The RDSL-82-100D Primary Current Injector is an essential testing device widely used for electrical commissioning and debugging in various industries. It is commonly applied in power plants, power transmission and distribution stations, electrical equipment manufacturing facilities, research institutions, laboratories, and other professional organizations. Designed for short-term or intermittent operation, this equipment features a compact structure, lightweight design, reliable performance, and convenient operation and maintenance.
Product Features
1. Provides AC 0–100A output current with stable performance, suitable for electrical commissioning, protection testing, and high-current applications.
2. Features low waveform distortion ≤5%, ensuring accurate and reliable test results during measurement.

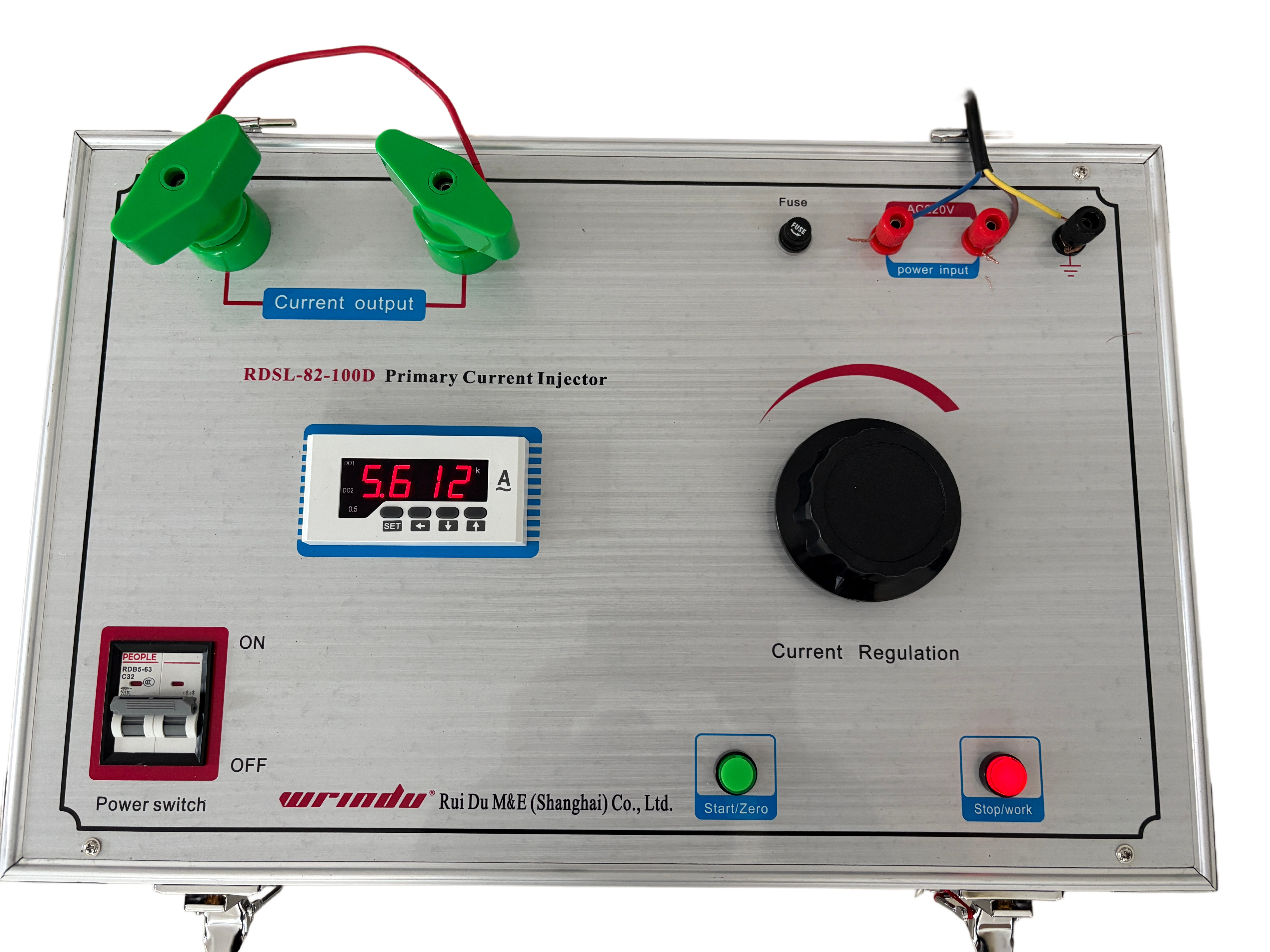

3. Equipped with an LED digital display for clear reading of output current and convenient operation.
4. Compact structure and lightweight design make it easy to transport, install, and use in different working environments.
5. Designed for short-time and intermittent operation with reliable performance and simple maintenance.
6. Widely used in power plants, substations, electrical equipment manufacturers, laboratories, and research institutions.
7. Supports customized specifications and special functions according to different user requirements.
Product Specifications and Technical Parameters
| Item | Technical Parameter |
|---|---|
| Input Power Supply | AC 220V, 1A, 50Hz |
| Output Current | AC 0–100A |
| Output Voltage | AC 0–2V |
| Output Current Waveform Distortion | ≤5% |
| Display Type | LED digital display |
| Current Measurement Range | 0–100A |
| Operating Temperature | -10°C to 40°C |
| Relative Humidity | <80% RH |
| Dimensions | 450 × 350 × 200 mm³ |
| Weight | 42 kg |
FAQs
What is the RDSL-82 Primary Current Injector used for?
The RDSL-82 Primary Current Injector is used for electrical commissioning, high-current testing, and debugging of power equipment in power plants, substations, laboratories, and electrical manufacturing facilities.
What is the maximum output current of the RDSL-82?
The RDSL-82 can provide an AC output current from 0 to 100A, making it suitable for various primary current injection testing applications.
What industries use the RDSL-82 Primary Current Injector?
It is widely used in power generation, power transmission and distribution, electrical equipment manufacturing, scientific research, and laboratory testing.
What is the output voltage range of the RDSL-82 current injector?
The device provides an AC output voltage range of 0 to 2V for electrical testing applications.
Is the RDSL-82 easy to operate?
Yes. The RDSL-82 features an LED digital display, allowing users to easily monitor current values during testing.
What is the waveform distortion of the RDSL-82 output current?
The output current waveform distortion is ≤5%, ensuring stable and reliable test performance.
Is the RDSL-82 suitable for field testing?
Yes. Its compact design and convenient operation make it suitable for both laboratory and on-site electrical testing.
What is the working mode of the RDSL-82 Primary Current Injector?
The RDSL-82 is designed for short-time or intermittent operation, which is suitable for electrical commissioning and testing tasks.
What environmental conditions are suitable for the RDSL-82?
The recommended operating environment is -10°C to 40°C with relative humidity below 80%.
How much does the RDSL-82 Primary Current Injector weigh?
The equipment weighs approximately 42 kg, providing a balance between portability and stable operation.
Can the RDSL-82 be customized for special testing requirements?
Yes. Customized specifications and additional functions can be provided according to specific customer requirements.
Why choose the RDSL-82 Primary Current Injector for electrical testing?
The RDSL-82 offers stable output, accurate measurement, compact design, easy operation, and reliable performance for professional electrical testing applications.
