AC Series Resonance Variable Frequency Withstand Voltage Test Device

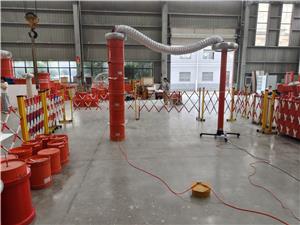

The AC resonance test system is designed for a wide range of high-voltage withstand voltage testing applications. It can perform AC withstand voltage tests on 10kV, 35kV, and 110kV power cables, supporting cable lengths up to 3km, 1km, and 0.2km respectively. With an adjustable frequency range of 30Hz to 300Hz and a maximum test voltage of 265kV, the system provides flexible and reliable testing for various cable and electrical equipment requirements. The system is also suitable for AC withstand voltage testing of transformers up to 120MVA/110kV, as well as 110kV busbars, GIS equipment, and switchyard systems. Its strong capacitive load capability ensures stable resonance performance and accurate insulation assessment, making it an ideal solution for commissioning tests, preventive maintenance, and acceptance testing in substations, power utilities, industrial facilities, and electrical engineering projects.
