What do you know about battery discharge machine
Questions about Battery Discharge Machine
What is the best way to discharge battery?
At what voltage is a 12V battery 50% discharge?
How do you measure battery discharge?
Which equipment is used for discharge testing of batteries?
Is lithium battery discharge better than lead acid?
What is the best way to discharge battery?
The best way to discharge a battery depends on the type of battery and its intended use. Here's a breakdown for different battery types:
LiPo (Lithium Polymer) Batteries
-
Use a Battery Discharger: These are specialized devices designed to safely discharge LiPo batteries to a set voltage. They are the safest and most controlled method.
-
Use a LiPo Charger with Discharge Function: Many modern LiPo chargers have a built-in discharge feature, allowing you to set a specific cutoff voltage (usually around 3.3V to 3.5V per cell).
-
Manual Discharge: You can use a resistor or low-wattage light bulb to discharge the battery manually. This method requires careful monitoring to avoid over-discharging or excessive heat generation. Always use a multimeter to check the voltage regularly.
Lithium-Ion (Li-ion) Batteries
-
Battery Management System (BMS): Use a BMS to monitor the battery’s voltage and ensure safe discharge without over-discharge or overheating.
-
Controlled Load: You can also discharge a Li-ion battery by applying a controlled load, such as a resistor, to gradually drain the battery.
-
Charger with Discharge Function: Similar to LiPo chargers, many Li-ion chargers offer a safe discharge mode.
Lead-Acid Batteries
-
Lead-acid batteries are best discharged using a controlled load (e.g., a high-wattage light bulb or resistive load). They are less sensitive to over-discharge but should still never be fully drained to 0V to avoid permanent damage.
Nickel-based Batteries (NiMH, NiCd)
-
For NiMH and NiCd batteries, you can use a battery charger with a discharge function to safely discharge the battery. It's important to note that these batteries should be discharged completely to prevent the "memory effect," where they "remember" a lower charge capacity.
At what voltage is a 12V battery 50% discharge?
For a 12V battery, assuming it is made up of 6 cells connected in series (such as common lead-acid batteries or similar 12V batteries), the normal operating voltage range for each cell is typically between 2.0V and 2.4V. The voltage at 50% discharge will depend on the battery type.

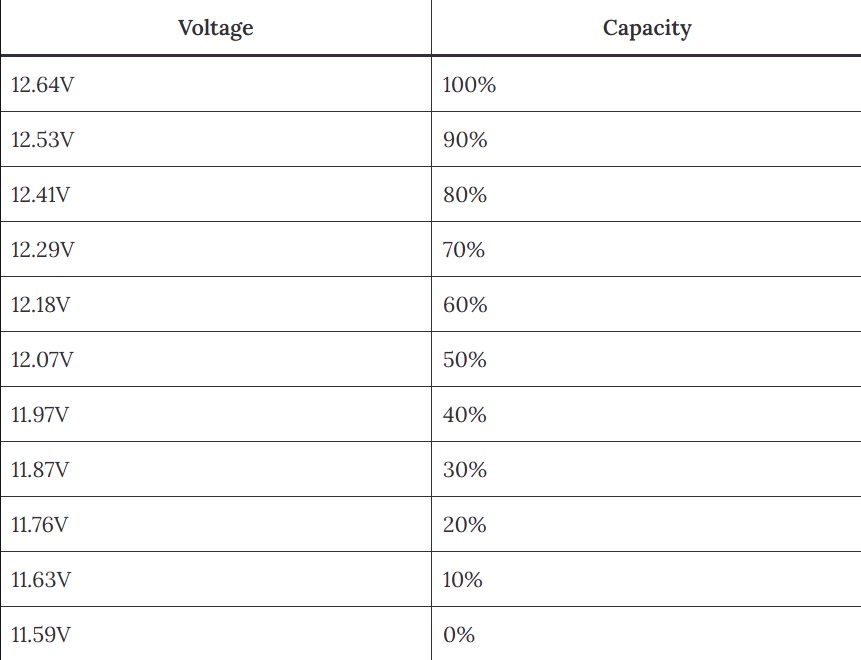

12V Sealed Lead Acid Batteries(AGM&Gel)

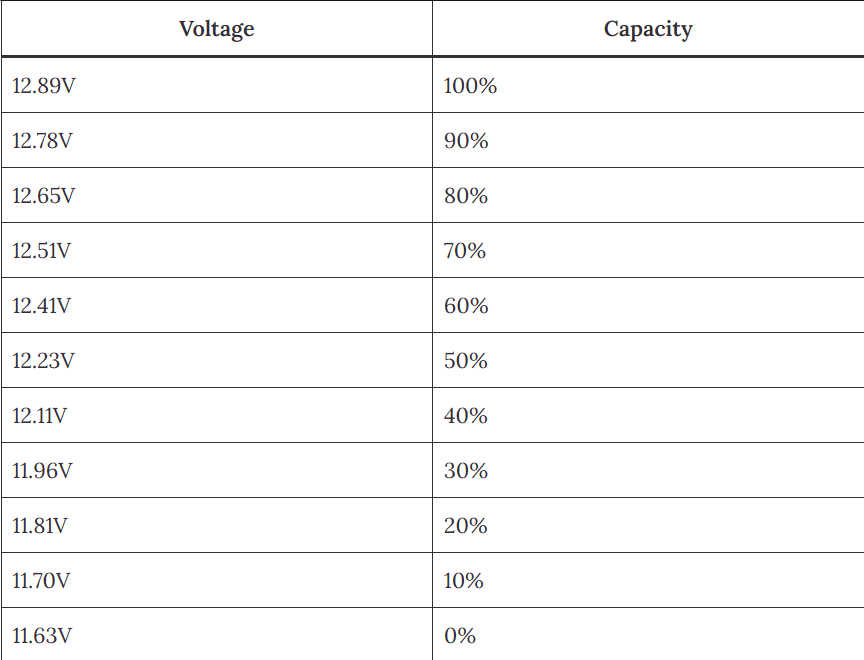

12V Flooded Lead Acid Batteries
How do you measure battery discharge?
-
1. Set Up the Test:
-
Connect the battery to a load (could be a resistor, constant current or constant power load, depending on the type of discharge test you are doing).
-
Set the discharge current (typically 1C or a fraction of C based on the battery type) and monitor the voltage and current.
-
2. Monitor Current and Voltage:
-
Use a digital multimeter or a battery analyzer to measure the discharge current. A shunt resistor or dedicated battery tester with real-time data output can help.
-
Simultaneously, monitor the battery voltage to ensure it doesn't drop below the cut-off voltage.
-
3. Track Discharge Time:
-
Start the timer as soon as the discharge begins. You’ll need to track the time taken for the voltage to drop to the cut-off value. This can be done manually, but for more precise measurements, a data logger is recommended.
-
4. Record Data:
-
Log the discharge current, battery voltage, and time during the discharge process.
-
For high precision, consider using automated equipment that will continuously monitor and log data, which can then be analyzed afterward.
-
5. Calculate Discharge Rate:
Example: If you have a 500 Ah battery and it takes 20 hours to discharge to its cut-off voltage:
This means the battery is discharging at a constant rate of 25A.
-
To calculate the discharge rate (in Amps, A), use the formula:
Which equipment is used for discharge testing of batteries?
-
1. Battery Testers: Many battery testers are designed to automatically discharge the battery, monitor the parameters, and calculate the remaining capacity.
-
2. Battery Analyzers: These are more advanced devices that allow for real-time monitoring and data logging during the discharge test. They can output the discharge curve, current, voltage, and capacity in real-time.

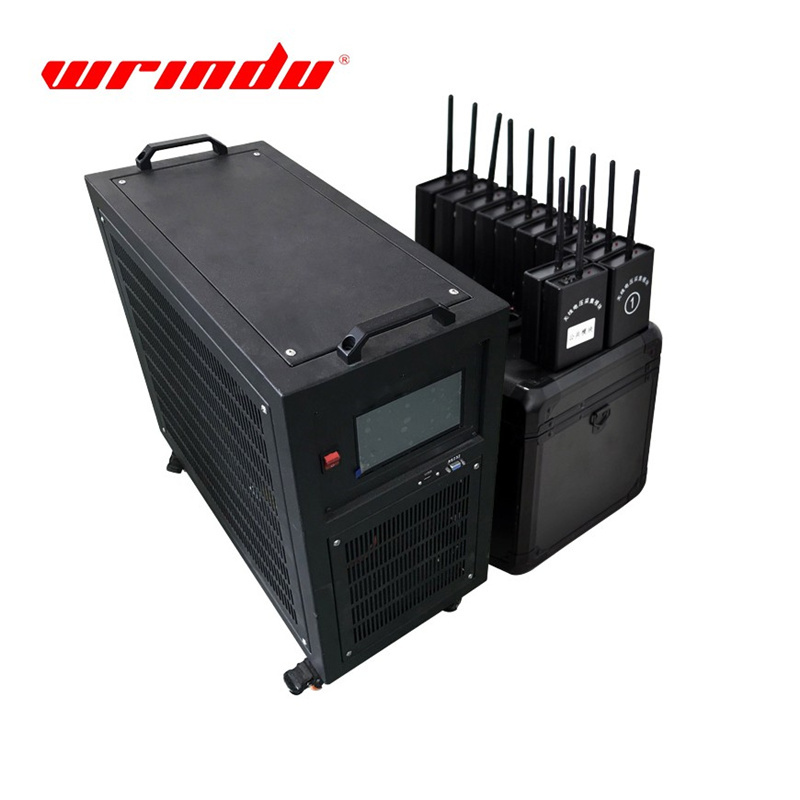

Click here to find more information about battery discharge machine.
Is lithium battery discharge better than lead acid?
Regardless of the discharge rate, lithium batteries are capable of providing 100% of their rated capacity. In contrast, for lead-acid batteries, higher discharge rates result in less available energy. To prevent reducing the battery's lifespan, the discharge capacity of lead-acid batteries is typically limited to 50% of their rated capacity.
