RDHL-200A Loop Resistance Tester VS Other Resistance Tester
When it comes to maintaining high-voltage equipment, testing the ground loop resistance is crucial. It ensures safety, reliability, and efficiency of electrical systems. The RDHL-200A Ground Loop Resistance Tester stands out among its competitors with its advanced features, high precision, and practical design. This article will walk you through the key benefits and applications of this remarkable tester and explain why it is a must-have for professionals.
What is Ground Loop Resistance Testing and Why is it Important?
A ground loop refers to a situation where multiple ground connections form a loop, creating a path for current to flow between different electrical components. High resistance in this loop can lead to several issues, such as electrical surges, operational inefficiencies, and safety risks. Therefore, ground loop resistance testing helps identify the resistance in the ground connection and ensures that the system is effective and safe.
Testing helps to confirm that grounding resistance stays within acceptable limits, typically specified by industry standards. This is essential for both preventing electrical hazards and ensuring that equipment operates at optimal performance levels.
Core Applications of Ground Loop Resistance Testers
Ground loop resistance testers are widely used in the following applications:
Switch and Circuit Breakers: Ensuring reliable performance by measuring the contact resistance and loop resistance.
Cable Joints: Verifying that cables are properly grounded and that resistance is within acceptable limits.
Weld Points and Connections: Checking welded joints for correct conductivity, ensuring that they don't introduce unnecessary resistance.
High Voltage Systems: Routine monitoring and testing of high-voltage systems to confirm their safety and compliance with regulatory standards.
Key Features of the RDHL-200A Ground Loop Resistance Tester
High-Precision Measurements
One of the standout features of the RDHL-200A is its ability to perform high-precision measurements, even in the micro-ohm range. This is especially critical when measuring contact resistance in sensitive electrical systems. The tester employs high-frequency constant current switching technology, which ensures accurate results even when the resistance values are extremely low.
Four-Wire Measurement Method
The RDHL-200A uses the Four-Wire Kelvin Method, which separates the current-carrying leads from the voltage-sensing leads. This significantly reduces the influence of lead and contact resistance, ensuring highly accurate readings for low-resistance measurements. By using this method, the RDHL-200A eliminates the potential errors caused by the resistance of cables and connectors, providing more reliable test results.
Comprehensive Protection Features
Safety is paramount when working with electrical systems. The RDHL-200A is equipped with multiple protection features to keep both the tester and the operator safe. These include:
Over-voltage and over-current protection
Short-circuit protection
Automatic power-off feature in case of overheating
These features ensure the tester operates safely, even in demanding, high-voltage environments.
Large Storage Capacity and Data Management
With the RDHL-200A, you can store up to 1000 sets of test data, which is essential for tracking test results over time. The data can be easily exported in CSV or Excel format, making it easy to analyze and store the results for future reference. Additionally, the tester supports multiple communication options, including Bluetooth, RS232, and USB, enabling seamless data transfer for further analysis or remote monitoring.
User-Friendly Interface
The RDHL-200A features a 7-inch color touchscreen, making it easy to read measurements, adjust settings, and navigate through the menu. The intuitive interface is designed to help users get the most out of their device with minimal training. This makes it ideal for both experienced technicians and those new to ground loop resistance testing.
How Does the RDHL-200A Compare to Other Ground Loop Resistance Testers?
While there are many ground loop resistance testers available, the RDHL-200A stands out in several ways.
Superior Accuracy and Precision
Compared to other testers, the RDHL-200A offers better resolution and higher accuracy in measuring low-resistance values. Many entry-level models struggle to deliver reliable results for low-resistance measurements (below 1 ohm), but the RDHL-200A excels in this area. Its micro-ohm-level measurement capability makes it the perfect choice for testing switches, cables, and welding points.
Flexible Testing Methods
Unlike some basic testers that only support DC measurements, the RDHL-200A supports DC, AC, and pulse measurements. This flexibility allows it to be used in various environments and applications, from low-frequency tests to high-frequency assessments.
Field-Friendly Design
Many testers are designed for lab-based use and are bulky and difficult to transport. The RDHL-200A, however, is designed to be both portable and rugged, making it perfect for fieldwork. It features shock-resistant casing and is designed to withstand harsh conditions, making it the ideal tool for site inspections and routine field maintenance.
Better Data Management and Connectivity
The RDHL-200A excels in terms of data management. While many testers store data locally with limited export options, the RDHL-200A provides more advanced capabilities, including Bluetooth connectivity for remote monitoring and USB/RS232 interfaces for easy data transfer to computers or cloud systems. This is especially valuable for teams working on large projects or in remote locations where real-time data analysis is critical.

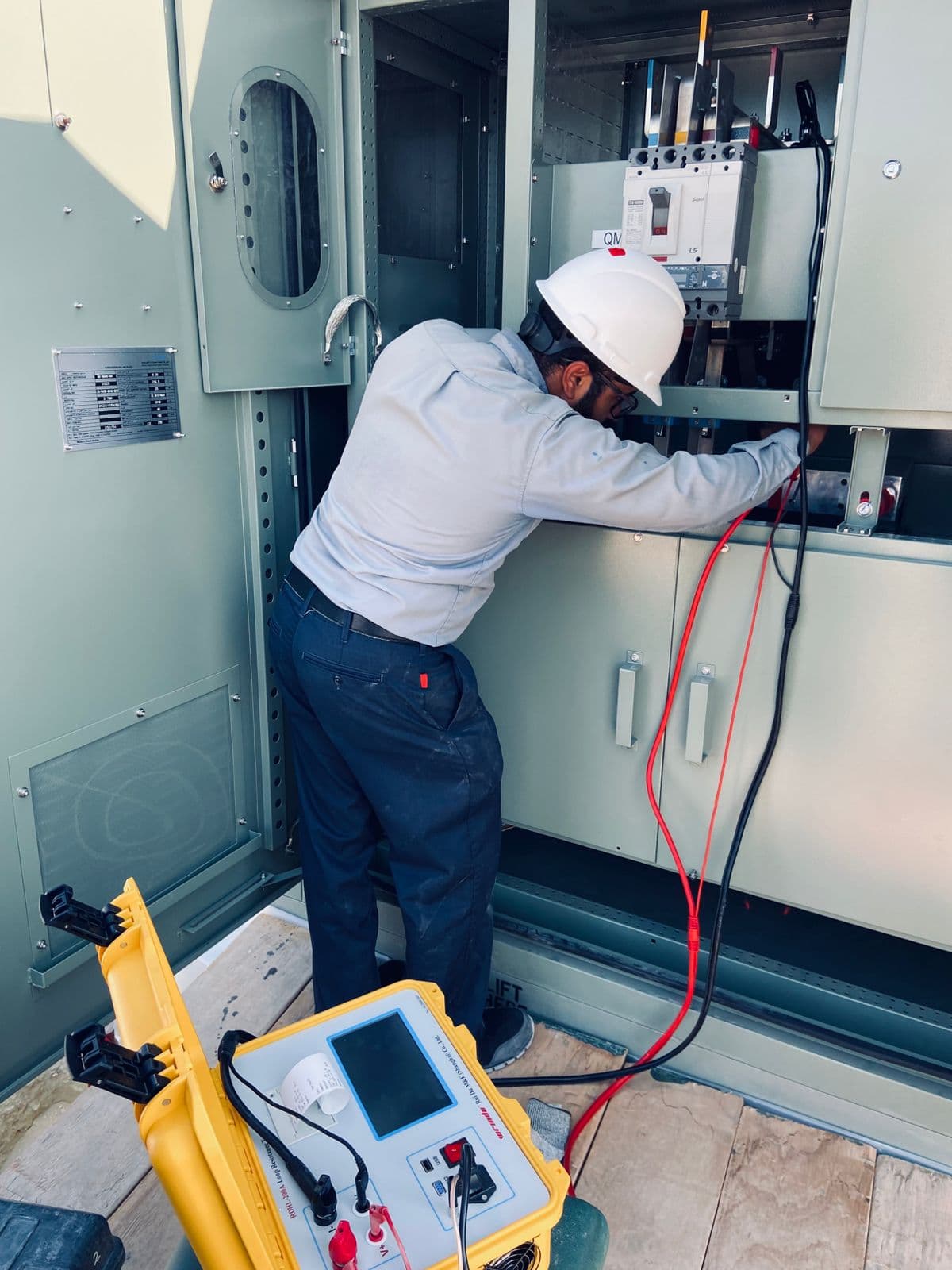

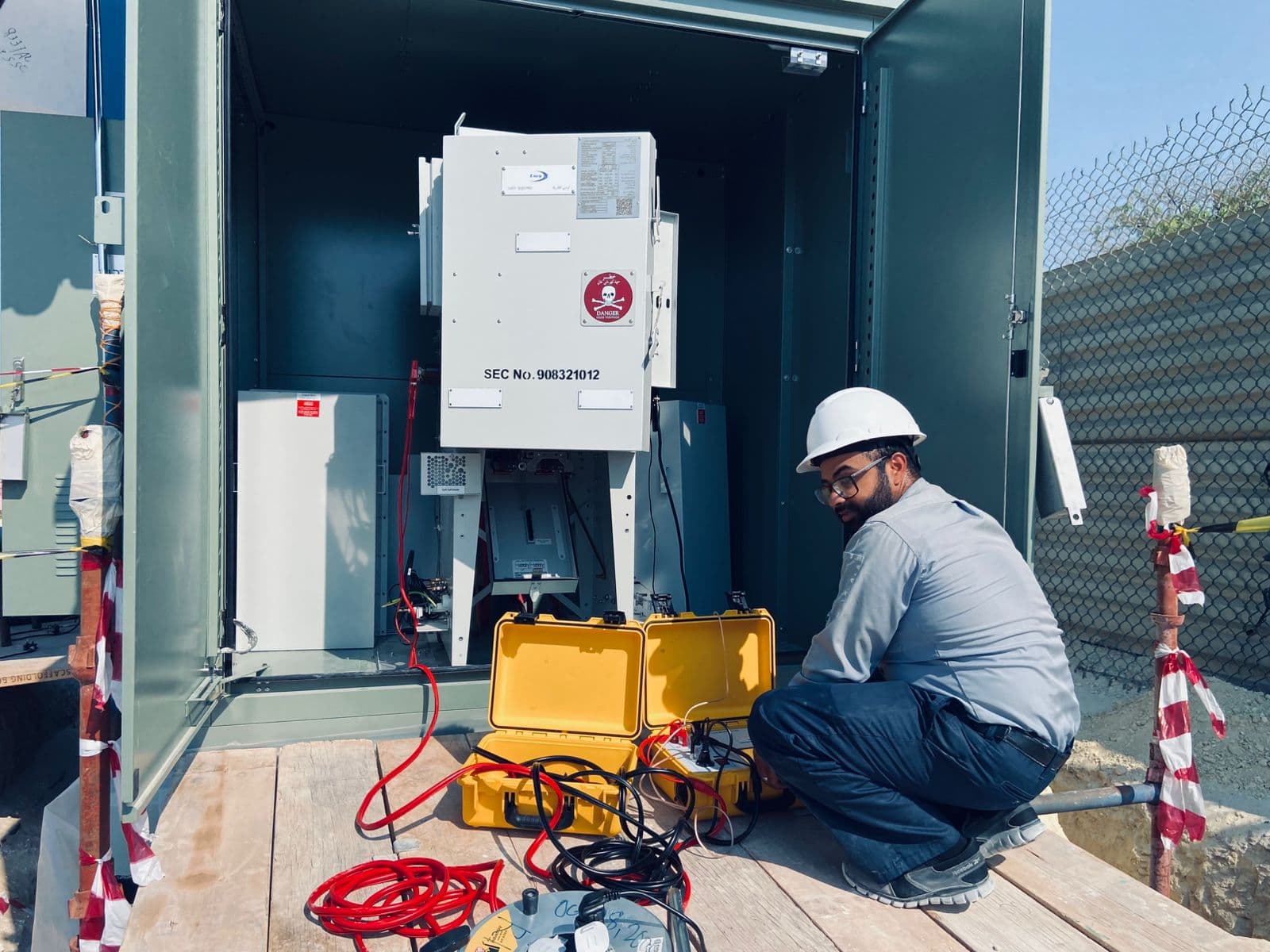

On-site Testing Photos
Find more information about RDHL-200A Loop Resistance Tester.
